General Filters 3200A Evaporative Humidifier 24 Volt 3200 Sq Ft GA10

Product Description

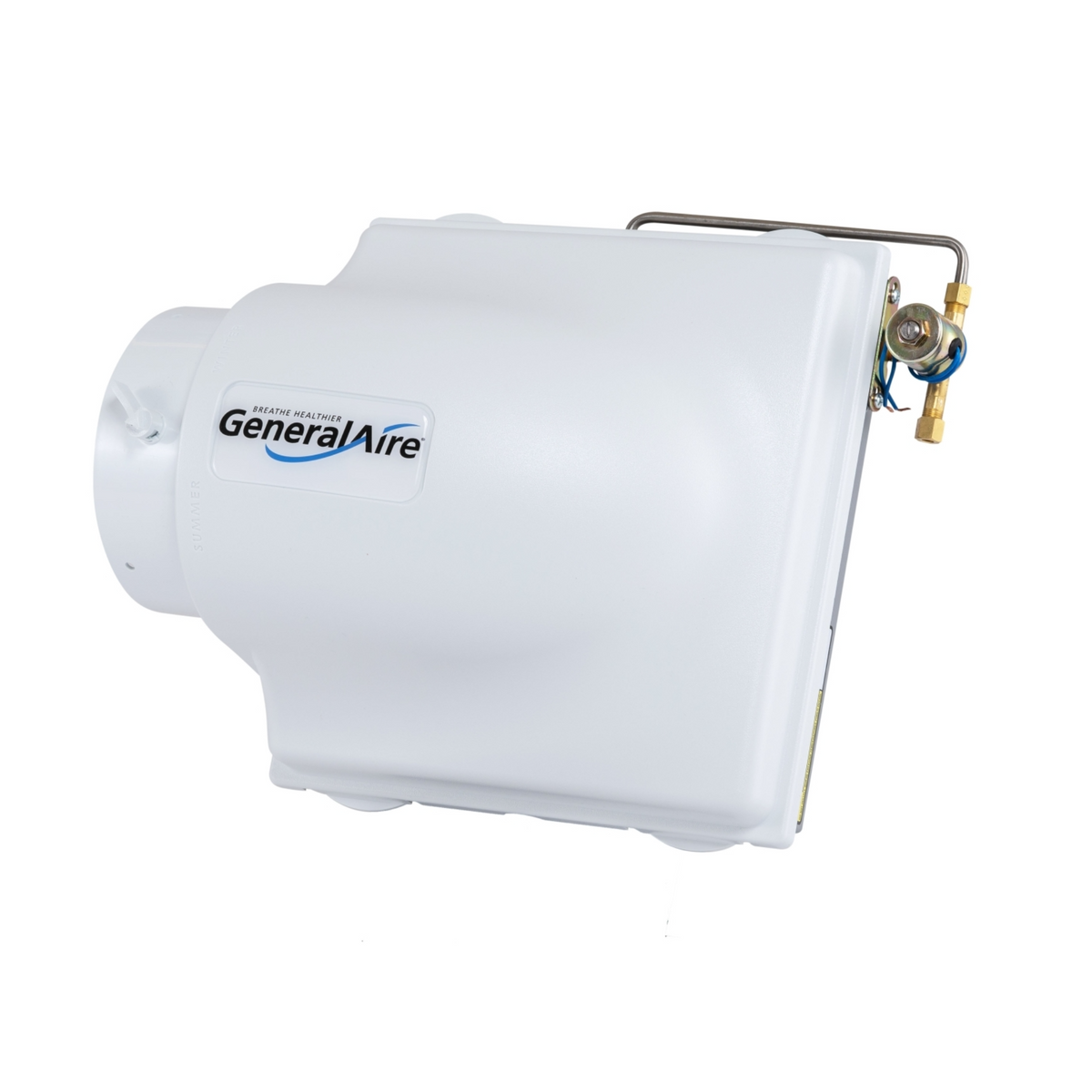

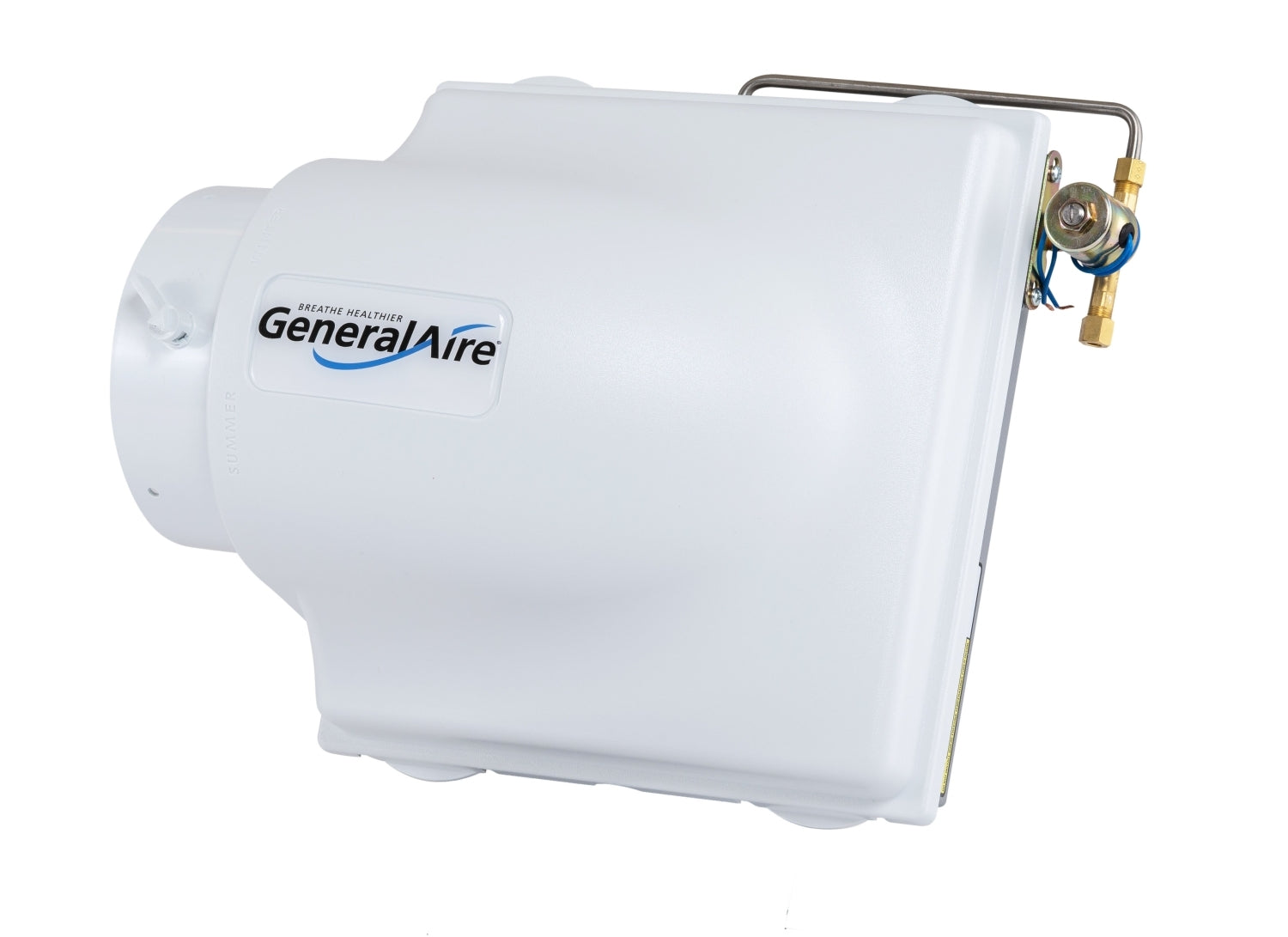

The GENERAL FILTERS 3200A is a bypass evaporative humidifier designed for whole-home humidification, capable of delivering 12 gallons of moisture per day based on a 120°F plenum temperature. This 24-volt unit is suitable for homes up to 3,200 square feet, integrating with your furnace and duct system to improve indoor air quality. It features a GFX4 digital automatic-control humidistat and offers versatile installation in warm air or return air plenums on either the right or left side.

• Maximum humidity output achieved through a low-profile cover and stainless steel distributor tube.
• Flexible installation options with left or right bypass and solenoid valve placement.
• Easy maintenance facilitated by a snap-in-place, lift-off cover and a two-piece Vapor Pad frame.

Product Highlights

Efficient whole-home humidification with flexible installation and simplified maintenance.

Product Information

Standard Information

• Brand: GENERAL FILTERS
• Manufacturer Part Number: 3200A

Technical Specifications

• Type: bypass evaporative
• Gallons per Day: 12 (based on 120° F plenum temperature)
• Vapor Pad Replacement: GA10 (GFI #7905)
• Vapor Pad Replacement Frequency: 1-2 times per season
• Home Size Capacity: Up to 3,200 square feet
• Plenum Opening: 9 1/8 W x 9 1/8 H inches
• Bypass Opening: 6 inches
• Installation: warm air / return air plenum / right of left side

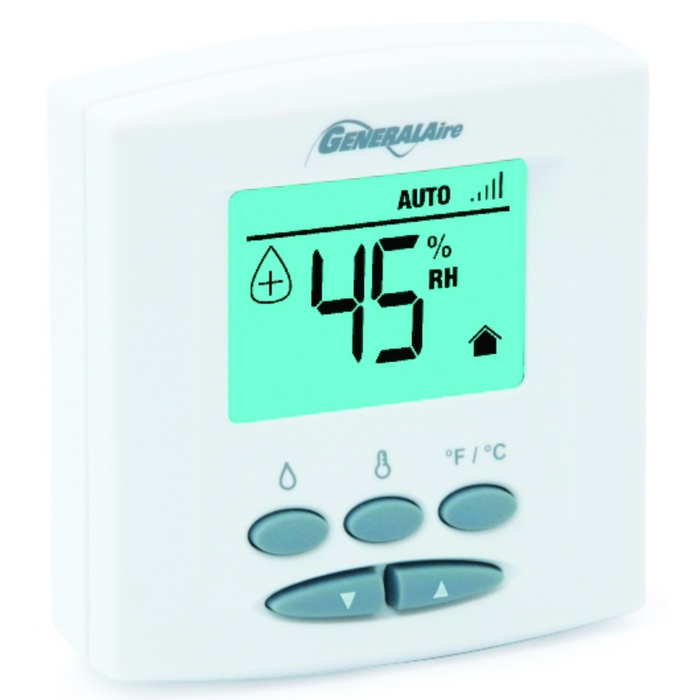

• Control: GFX4 digital automatic-control humidistat; controls the furnace blower motor
• Power: 24 volts
• GFI #: 5801
