General Filters 2630 Oil Filter Cartridge Spin-on Water Block

Product Description

The GENERAL FILTERS 2630 is an epoxy-coated spin-on oil filter cartridge designed for fuel oil filtration in residential and light commercial heating systems. This replacement cartridge features Water Block technology to separate and remove water from fuel oil before it reaches the burner, protecting downstream components from corrosion and fouling. It delivers a 10-micron removal rating and a flow rate of 45 gallons per hour, with a maximum firing rate of 10 gph. A Biogasket is included, making this cartridge compatible with biofuel blends up to B100. Licensed oil burner technicians install this cartridge as part of routine preventive maintenance on oil-fired heating equipment.

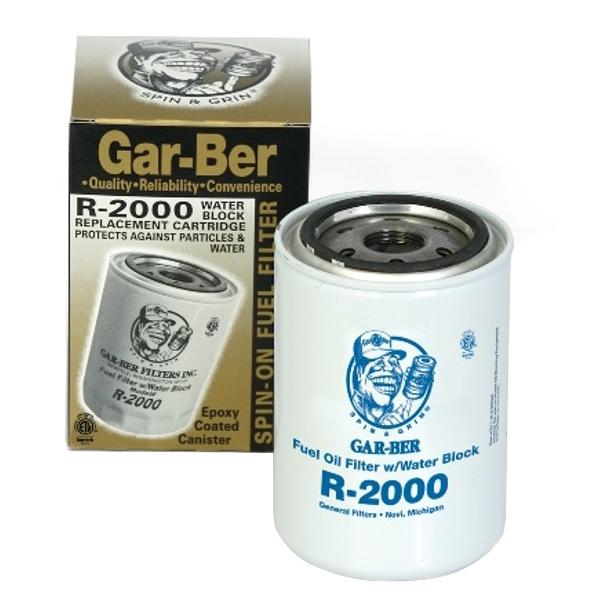

This cartridge fits the R2000 Gar-Ber Spin-On Oil Filter housing and is suited for residential oil-fired heating systems requiring reliable particulate and water removal ahead of the burner assembly. The 500 square inch filtering area provides ample surface for extended service intervals. The epoxy coating adds corrosion resistance in fuel oil environments. Systems running biodiesel blends benefit from the included Biogasket, which is formulated to withstand biofuel chemistry up to B100.

Key Features

• Water Block technology removes entrained water from fuel oil to protect burner components
• 10-micron filtration rating removes particulates before they reach the burner nozzle
• Includes Biogasket rated for biofuel blends up to B100
• Epoxy-coated cartridge construction resists corrosion in fuel oil service
• Flow rate of 45 gallons per hour with a maximum firing rate of 10 gph
• Working pressure rated to 15 psi

Compatibility

Designed as a replacement cartridge for the R2000 Gar-Ber Spin-On Oil Filter housing. Suitable for oil-fired heating systems using standard No. 2 fuel oil or biodiesel blends up to B100.

Installation Notes

Installation should be performed by a licensed oil burner technician following all applicable local and national codes. Shut down the burner and de-energize the system before servicing the filter housing. Drain residual oil from the housing before removing the spent cartridge, and dispose of used cartridges in accordance with local regulations. After installing the new cartridge, check all fittings for leaks before returning the system to service.

Technical Specifications

• Micron Removal Rating: 10 microns
• Maximum Firing Rate: 10 gph
• Flow Rate: 45 gph
• Working Pressure: 15 psi
• Filtering Area: 500 sq. in
• Height: 5.5 inches
• Width: 3.75 inches
• Biogasket Included: Yes, rated to B100

Standard Information

• Brand: GENERAL FILTERS
• Manufacturer Part Number: 2630
