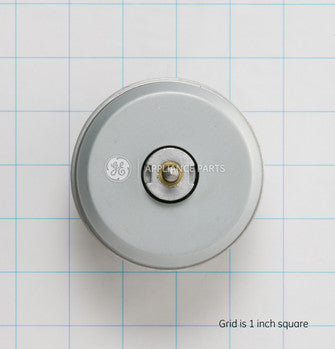

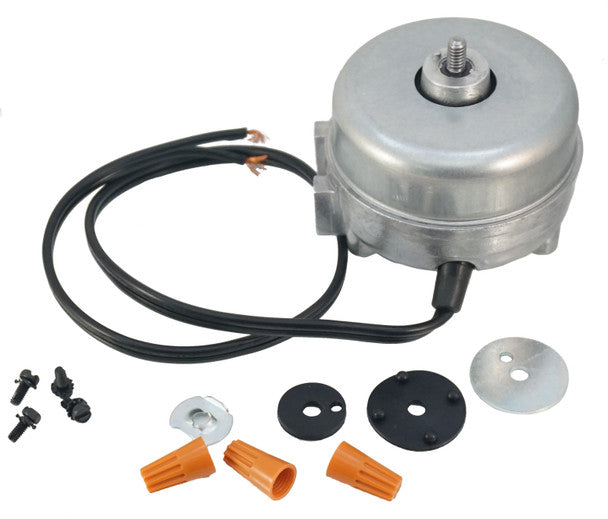

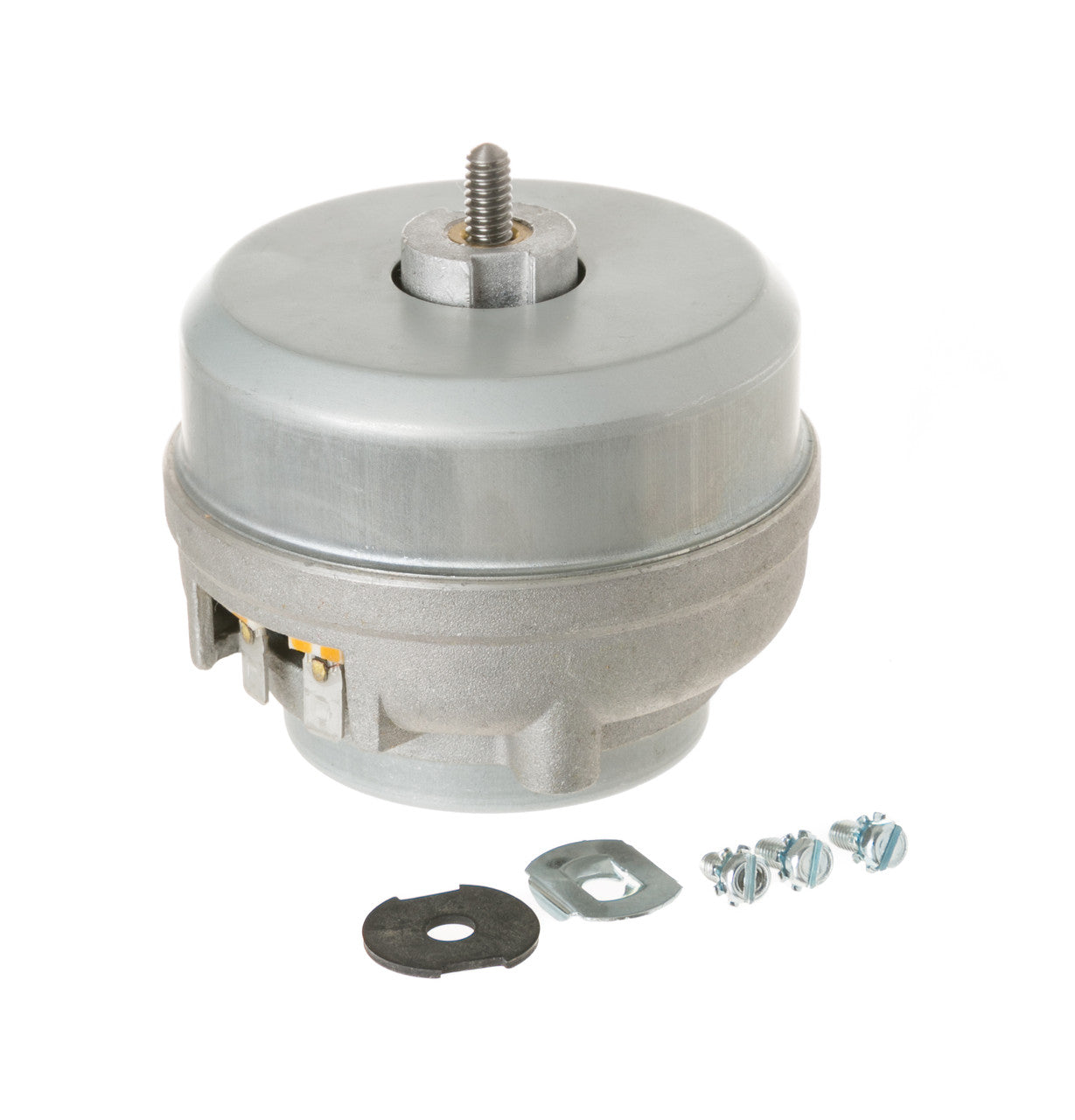

General Electric WR60X177 Condenser Fan Motor 115 Volts 2 Watts

Product Description

The General Electric WR60X177 is a condenser fan motor suitable for appliance applications. This motor operates on one hundred fifteen volts and has a power rating of two watts. The motor's design includes clockwise rotation when viewed from the opposite shaft end, ensuring efficient airflow.

• Operates at one hundred fifteen volts
• Rated for two watts
• Includes twenty-five wire leads with insulated terminals

Product Highlights

This fan motor is essential for maintaining proper temperature control in various appliances.

Product Information

Standard Information

• Country of Origin: Not specified
• UPC: 798506000000

Technical Specifications

• Wattage: 2 watts
• Input Voltage: 115 volts
• Output Current: 0.28 amps
• RPM: 1550
• Rotation: CW rotation viewed from the opposite shaft end
• Mounting Holes: 3 holes, 2.5 inches apart (center to center)
• Shaft: 1/4 inches threaded shaft
• Wire Leads: 25 wire leads with insulated ring terminals
