General Electric wd21x26060 Ui Harness Assembly

Product Description

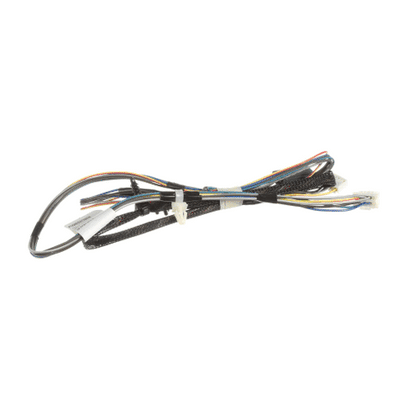

The GENERAL ELECTRIC wd21x26060 is a UI harness assembly designed to connect the user interface control panel to the main control board in a dishwasher. This wiring harness carries low-voltage signals and power between the display or touchpad assembly and the primary control, allowing the operator controls to communicate with the unit's operating logic. It is a direct OEM replacement part installed by appliance technicians during control panel or touchpad service calls.

This harness assembly is used in residential dishwasher applications where the existing UI wiring has failed, been damaged, or requires replacement as part of a broader control board or touchpad repair. It is typically addressed during service calls involving unresponsive controls, intermittent display errors, or visible wiring damage in the door panel cavity.

Key Features

• OEM replacement UI harness assembly for GENERAL ELECTRIC dishwashers
• Connects user interface touchpad or display to the main control board
• Carries low-voltage control signals between door panel and tub electronics
• Factory-terminated connectors for direct plug-in installation
• Designed to restore full control panel communication and function

Compatibility

Designed as an OEM-style replacement UI harness assembly for GENERAL ELECTRIC residential dishwasher models. Refer to your unit's service documentation or model number to confirm fitment before installation.

Installation Notes

Installation is performed by a qualified appliance technician. Disconnect power to the dishwasher at the circuit breaker before opening the door panel or accessing any wiring components. Route and secure the replacement harness following the original factory routing to avoid pinching or contact with moving parts. Consult the unit's service manual for connector orientation and panel reassembly sequence.

Technical Specifications

• Part Type: UI Harness Assembly

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: wd21x26060
