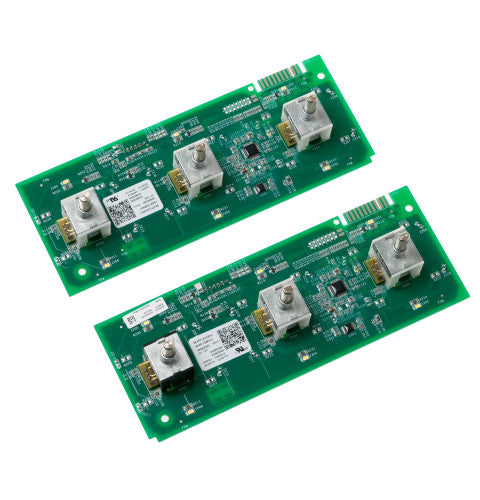

General Electric wb27x50967 Led Encoder Board Kit

Product Description

The General Electric wb27x50967 is an OEM LED and encoder board kit designed for GE range and cooktop control systems in the CHS90X product line. This kit provides the interface electronics that drive indicator lighting and rotary or push-button encoder input, allowing the control panel to communicate user commands to the main control board. It is a direct replacement component installed by appliance service technicians during control panel repairs or board failures.

This board kit is designed for use in GE electric range and cooktop models within the CHS90X series. It is appropriate for residential kitchen appliance applications where the LED display or encoder input function has failed, resulting in unresponsive controls or missing display output. Service technicians typically install this kit as part of a control panel assembly repair.

Key Features

• OEM GE part engineered to factory specifications for the CHS90X control platform
• Combines LED indicator board and encoder input board in a single kit for complete control panel restoration
• Direct plug-in replacement designed to match original wiring harness connectors
• Restores display output and user-input encoding function in a single service call

Compatibility

Designed as an OEM-style replacement for GE CHS90X series electric range and cooktop control board assemblies. Refer to the appliance model and serial number tag to confirm fitment before installation.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect power to the appliance at the circuit breaker or by unplugging the unit before beginning any disassembly. Handle the board assembly by its edges to avoid damage to solder joints or connector pins. Reconnect all wiring harness connectors fully before restoring power and testing control panel operation.

Technical Specifications

• Component Type: LED and Encoder Board Kit
• Product Line: CHS90X

Standard Information

• Brand: General Electric
• Manufacturer Part Number: wb27x50967
