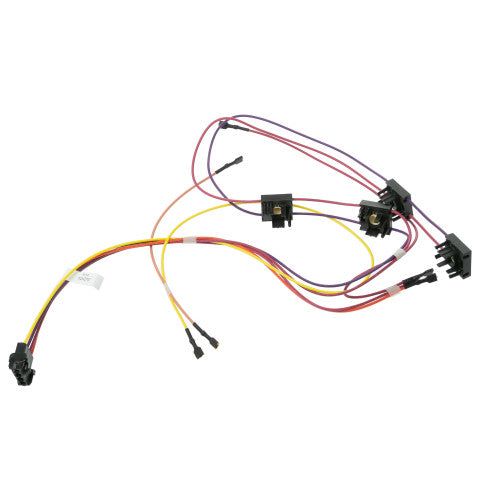

General Electric wb18x47870 Burner Box Wiring Harness

Product Description

The General Electric wb18x47870 is a burner box wiring harness designed for GE range and cooktop appliances. This harness routes low-voltage electrical signals between the burner assembly and the main control system, enabling proper ignition and burner operation. It is a direct OEM-style replacement component installed by appliance service technicians during burner circuit diagnostics or harness failure repairs. The wb18x47870 restores factory wiring continuity when the original harness shows signs of heat damage, fraying, or failed connector terminals.

This wiring harness is intended for use in GE-branded gas range and cooktop units where the burner box wiring requires replacement. It is typically encountered in residential kitchen appliance service calls. Technicians replacing this component will find it situated within the burner box area of the appliance, connecting ignition and valve wiring to the control board or terminal block. No specific compatible model numbers were provided in available product data.

Key Features

• OEM GE replacement wiring harness for burner box applications
• Restores factory electrical continuity between burner assembly and control system
• Designed for ignition circuit and burner valve signal routing
• Direct fit replacement to simplify swap-out during service calls

Compatibility

Designed as an OEM-style replacement wiring harness for GE gas range and cooktop appliances requiring burner box wiring service. No specific compatible model numbers were included in the available product data.

Installation Notes

Installation should be performed by a qualified appliance service technician. Disconnect the appliance from its power source and shut off the gas supply before beginning any wiring harness replacement. Take care to route the new harness away from heat sources and sharp edges that could cause future insulation damage. Follow all applicable local electrical and gas appliance service codes during installation.

Technical Specifications

• Component Type: Wiring Harness
• Application: Burner Box

Standard Information

• Brand: General Electric
• Manufacturer Part Number: wb18x47870
