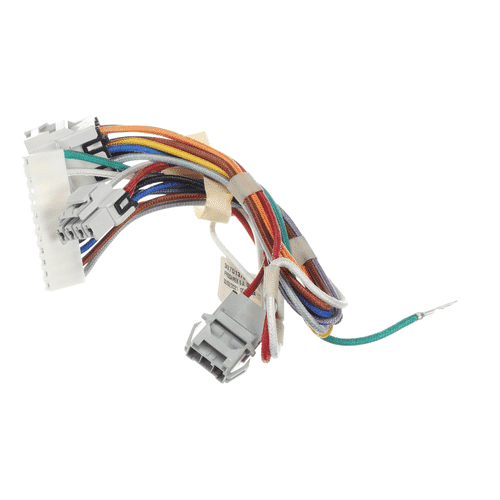

General Electric wb18x41306 Spark Module Harness

Product Description

The General Electric wb18x41306 is a spark module wiring harness designed for GE gas cooking appliances. This harness serves as the electrical interconnect between the spark module and the igniter electrodes, carrying the low-voltage signal that triggers ignition at each burner. It is a direct OEM replacement component, making it the appropriate choice when the original harness shows signs of heat damage, cracking, or failed continuity. Appliance service technicians install this part during ignition system diagnostics and repairs on GE gas ranges and cooktops.

This harness is used in residential gas cooking applications where the spark ignition system has failed or is producing intermittent ignition. Typical install scenarios include replacing a harness that has sustained heat damage near the burner wells, corroded terminals, or broken wire insulation. It connects the ignition control module to the individual spark electrodes mounted at each burner position on the cooktop surface.

Key Features

• OEM GE replacement harness for direct fit without modification
• Connects spark ignition module to burner electrode assemblies
• Designed to withstand the thermal environment of a residential gas cooktop
• Restores proper ignition signal routing when original harness is damaged or failed

Compatibility

Designed as an OEM-style replacement spark module wiring harness for GE residential gas ranges and cooktops. Verify fitment using the appliance model number before installation.

Installation Notes

This component is typically installed by an appliance service technician. Before servicing, disconnect power to the appliance at the wall outlet or circuit breaker and shut off the gas supply at the shutoff valve. Inspect terminal connections at both the module and electrode ends for secure seating. Do not route the harness in direct contact with burner grates or high-heat surfaces.

Technical Specifications

• Component Type: Spark Module Wiring Harness
• Application: Gas Range and Cooktop Ignition System

Standard Information

• Brand: General Electric
• Manufacturer Part Number: wb18x41306
