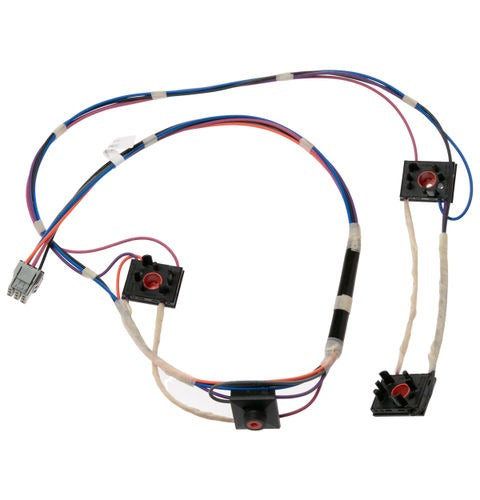

General Electric WB18X39301 Burner Box Wire Harness

Product Description

The General Electric WB18X39301 is a burner box wire harness designed for use in GE-brand residential ranges and cooktops. This harness provides the electrical interconnection between the burner control components and the main wiring system within the burner box assembly. It carries low-voltage and line-voltage signals that enable ignition and burner operation. Installation is typically performed by a qualified appliance technician during a burner assembly repair or full harness replacement. The WB18X39301 is an OEM-specification part built to match the original routing, connector types, and conductor count of the factory harness it replaces.

This wire harness is used in the burner box section of GE freestanding and slide-in ranges and gas cooktops. It is most commonly replaced during service calls involving burner ignition failures, melted or damaged wiring near the burner assembly, or after a control board replacement that requires a matched harness. The harness connects directly within the burner box enclosure and must be routed and seated exactly as the original to ensure correct burner function and safe operation.

Key Features

• OEM-specification burner box wire harness for GE ranges and cooktops
• Designed to match original connector types, conductor count, and harness routing
• Supports both ignition signal and burner control circuits within the burner box
• Direct replacement for damaged, melted, or failed factory wiring harnesses
• Built to original factory specifications for fit and function

Compatibility

Designed as an OEM-style replacement burner box wire harness for GE-brand residential gas ranges and cooktops. Verify fitment against your model number before ordering.

Installation Notes

Installation should be performed by a qualified appliance repair technician. Before beginning any harness replacement, disconnect the range or cooktop from its power source and shut off the gas supply at the appliance shutoff valve. Carefully document the original harness routing and connector positions before removal to ensure correct reinstallation. Follow all applicable local electrical and gas codes during service.
