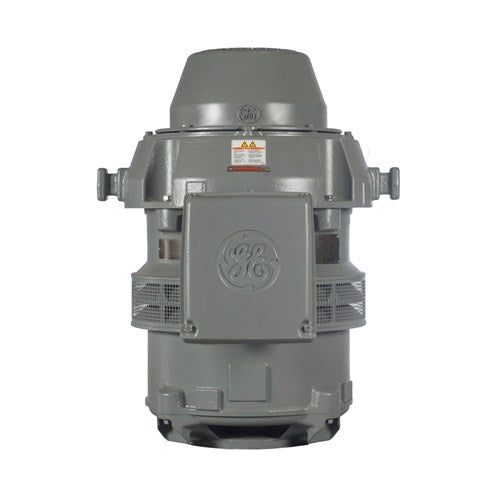

General Electric V4427 AC Motor 200 HP L444TP16 Frame

Product Description

The GENERAL ELECTRIC V4427 is an AC motor designed for pump applications. This 200 HP motor features a WPI enclosure, operates at 4 poles and 1800 RPM, and has a frame size of L444TP16. Suitable for continuous duty, it is NEMA rated with insulation class H and designed for an ambient temperature of 40 degrees Celsius.

• WPI Enclosure
• Premium Efficient
• Cast Iron Frame

Product Highlights

AC motor with WPI enclosure, premium efficiency, and cast iron frame, ideal for pump applications.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: V4427

Technical Specifications

• Enclosure: Weather Protection I (WPI), Totally Enclosed Fan Cooled (TEFC)
• HP: 200
• Pole: 4
• RPM: 1800
• Frame: L444TP16
• Category: Pump Motor
• KW: 149.2
• Motor Standards: NEMA
• Motor Type: AC Motor
• Phase: 3
• Hertz: 60
• Efficiency: Premium Efficient
• Full Load Amps: 230
• Nema Design: B
• Duty: CONT
• Insulation Class: H
• Ambient Teperature: 40
• Service Factor: 1.15
• Temperature Rise: 80C @ 1.0 SF
• Elevation: 3300Ft
• Rotor: Cast Aluminum
• Frame Material: Cast Iron
• Paint: Grey Epoxyester
• Nameplate: Stainless Steel
• Space Heaters: 115V/60Hz
• Voltage: 460
• Full Load Speed: 1780
• Efficiency 100: 95.12
• Efficiency 75: 95.1
• Efficiency 50: 94.63
• Power Factor 100: 85.27
• Power Factor 75: 81.75
• Power Factor 50: 73.08
• Locked Rotor Torque: 171
• Breakdown Torque: 253.7
• Locked Rotor Current: 1338.65
• Rotor Inertia lb ft: 54.77
• Brand: GE
• Manufacturer Part #: V4427
• Series: Ultra Fire Pump Duty VHS (Fire Pump Duty)
• Catalog #: V4427
• ERP Part #: 320856
• Application: Vertical Motors
