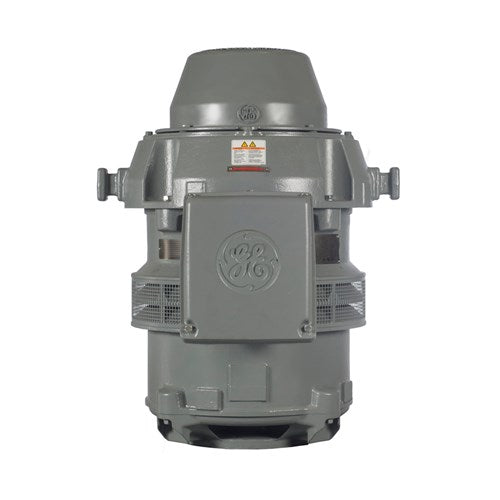

GENERAL ELECTRIC V4423 Ultra VHS Electric Motor 100HP 1800RPM 460V L404TP16

Product Description

The GENERAL ELECTRIC V4423 Ultra VHS electric motor is built for high-performance applications, particularly in turbine pump settings. This motor has a power rating of 100HP, operates at 1800RPM, and works with a voltage of 460V. It boasts a service factor of 1.15 and conforming to the L404TP16 frame size.

• Premium efficiency AC motor ideal for demanding environments.
• Constructed with a robust cast iron frame and conduit box.
• Includes space heater for optimal operation in cold environments.

Product Highlights

The motor provides high efficiency and durability, making it a reliable choice for professionals. Its NEMA Premium Efficiency rating ensures reduced energy consumption while meeting rigorous standards.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part #: V4423

Technical Specifications

• Voltage: 460
• Power (HP): 100
• RPM: 1800
• Frame: L404TP16
• Phase: 3
• Efficiency: Premium Efficient
• Full Load Amps: 120
• Temperature Rise: 80C @ 1.0 SF
