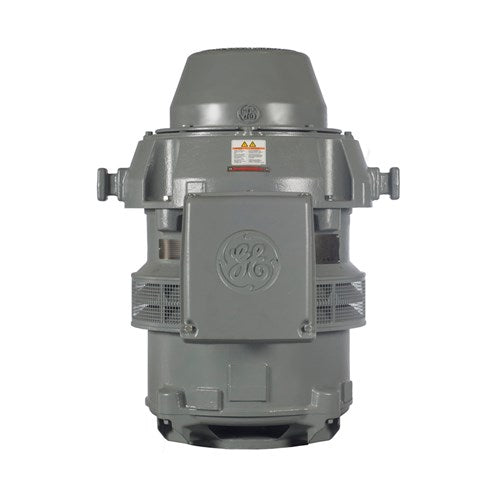

General Electric V4417 Motor 60 HP 1800 RPM L364TP16 Frame

Product Description

The General Electric V4417 motor features a WPI enclosure, operates at 60 HP and 1800 RPM. This AC motor is designed with a L364TP16 frame, pump motor category, and adheres to NEMA motor standards. It supports 230/460 voltage, 3 phase, and 60 Hertz frequency, with premium efficient performance.

• Operates at 60 HP and 1800 RPM

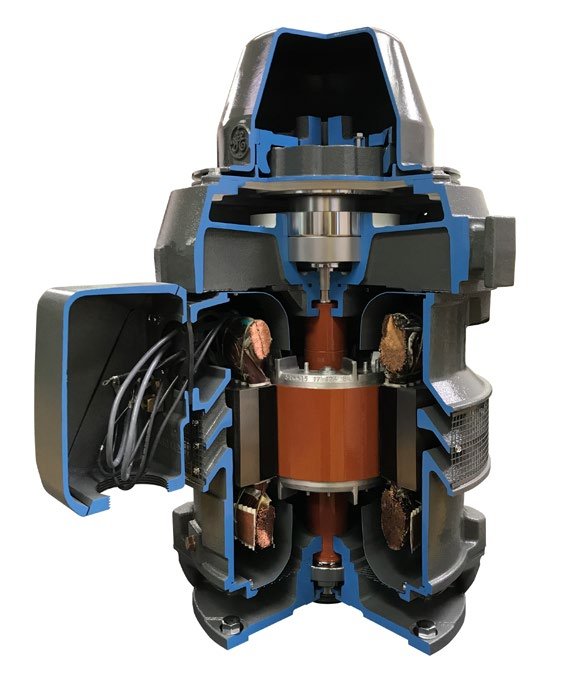

• Features a durable cast iron frame and cast aluminum rotor
• Premium efficient with 230/460 voltage compatibility

Product Highlights

This General Electric motor is ideal for pump applications requiring efficient and reliable performance. It is built with a robust design and premium efficiency.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: V4417

Technical Specifications

• Enclosure: WPI
• HP: 60
• Pole: 4
• RPM: 1800
• Frame: L364TP16
• Category: Pump Motor
• KW: 44.76
• Motor Standards: NEMA
• Motor Type: AC Motor
• Phase: 3
• Hertz: 60
• Efficiency: Premium Efficient
• Full Load Amps: 146.0/73.0
• Nema Design: B
• Duty: Pump Duty Non-Explosion Proof
• Insulation Class: H
• Ambient Temperature: 40
• Service Factor: 1.15
• Temperature Rise: 80C @ 1.0 SF
• Elevation: 3300Ft
• Rotor: Cast Aluminum
• Frame Material: Cast Iron
• Paint: Grey Epoxyester
• Nameplate: Stainless Steel
• Space Heaters: 115V/60Hz
• Voltage: 230/460
• Full Load Speed: 1785
• Efficiency 100: 94.75
• Efficiency 75: 94.58
• Efficiency 50: 93.84
• Power Factor 100: 81.17
• Power Factor 75: 76.28
• Power Factor 50: 65.77
• Locked Rotor Torque: 153.94
• Breakdown Torque: 256.9
• Locked Rotor Current: 406.95
• Rotor Inertia lb ft: 11.21
• Brand MFG: Wolong GE
• Catalog Number: V4417
• Application: Irrigation Hollow Shaft Pump Motor
• Series: Ultra Fire Pump Duty VHS (Fire Pump Duty)
• Manufacturer Name: GENERAL ELECTRIC
• VT: 0-60Hz
• Part #: 5KS364DAJ6005
• Subcategory: Motor
