General Electric V4033 Ultra VHS 20HP 2P 230/460V L254TP12

Product Description

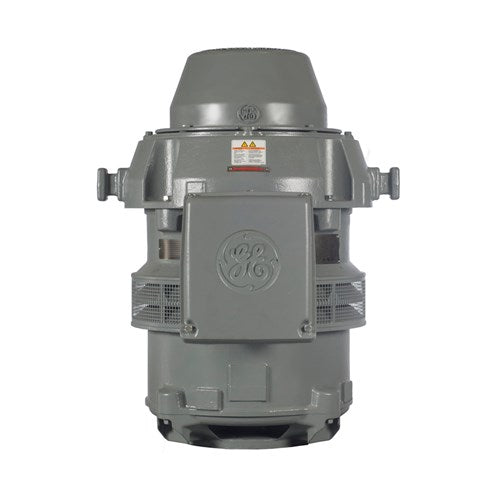

The GENERAL ELECTRIC V4033 Ultra VHS is an AC electric motor designed for high thrust turbine pump applications. This 20HP, 3-Phase motor operates at 3600RPM with a voltage of 230/460V and 60/50Hz frequency. It features a weather-protected Type I enclosure and cast iron construction, ensuring durability and premium efficiency. The motor includes a L254TP12 frame with P-Base and a non-reversing ratchet.

• Weather Protected Type I enclosure
• Cast Iron Construction
• Premium Efficient

Product Highlights

AC Electric Motor for High Thrust Turbine Pump Applications. Operates at 20HP, 3600RPM, 230/460V, and 60/50Hz.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: V4033

Technical Specifications

• Brand: GE
• HP: 20
• Poles: 2
• RPM: 3600
• Voltage: 230/460V
• Phase: 3-Phase
• Hertz: 60/50Hz
• FLA: 46/23
• Service Factor: 1.15
• Frame: L254TP12
• Base: P-Base
• Bearing: DE Ball Bearing
• Ratchet: Non-Reversing Ratchet
• Application: For High Thrust Turbine Pump Applications
• Enclosure: Weather Protected Type I
• Construction: Cast Iron
• Efficiency: Premium Efficient
• Motor Type: AC Electric Motor
