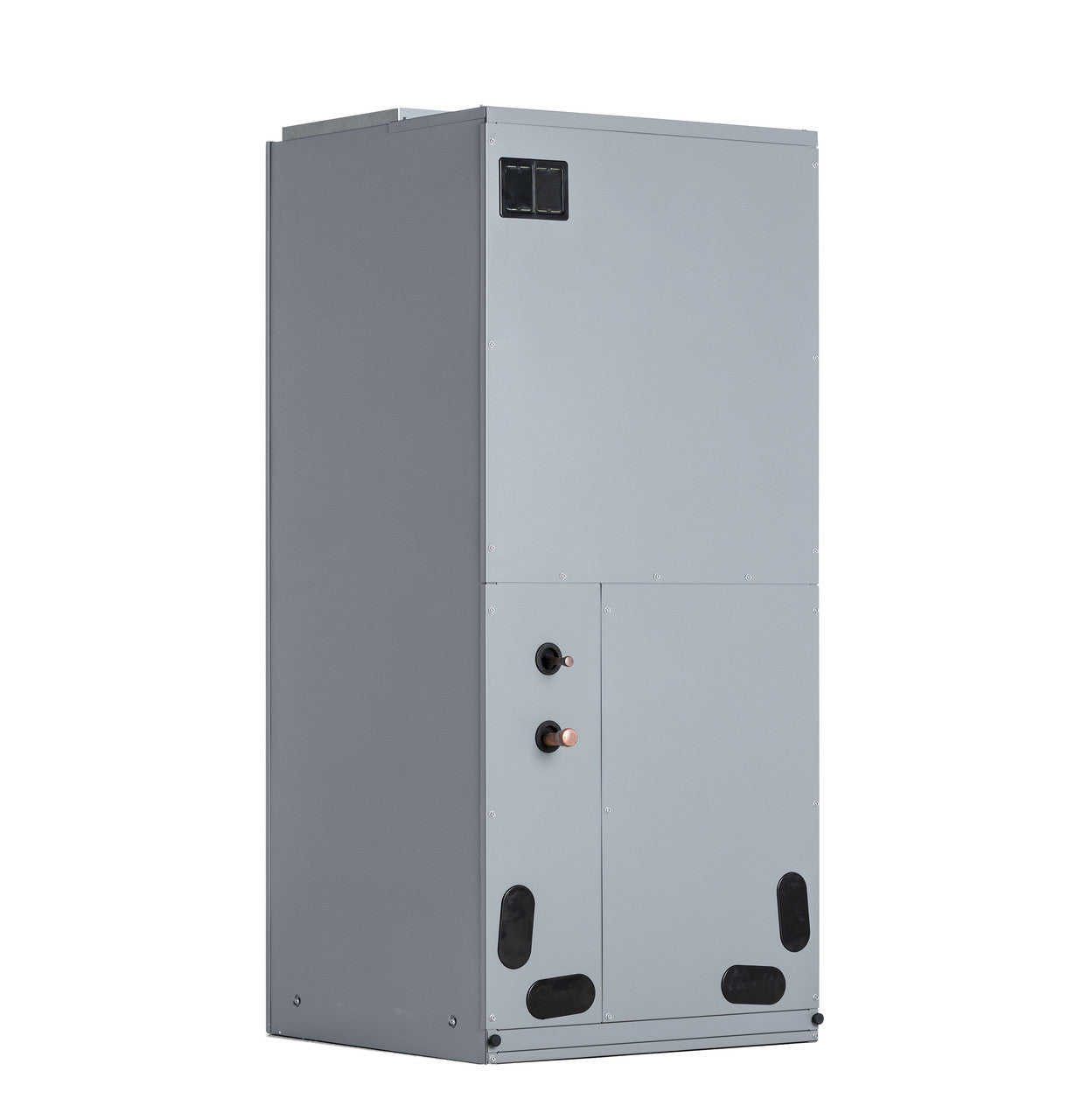

General Electric UUY60ZGDAB Connect Series Air Handling Unit 60,000 BTU

Product Description

The GENERAL ELECTRIC UUY60ZGDAB air handling unit provides flexible thermostat capability, compatible with many 24 volt conventional thermostats and the Connect Series Heat Pump. Designed for ducted HVAC systems, this indoor unit ships configured for up-flow or horizontal left application. It operates quietly, with sound levels as low as 51 dBs, ensuring minimal disruption. This unit has a Cooling Rated Capacity of 60,000 BTU/Hr and a SEER of 17.

• Flexible thermostat capability for 24 volt conventional thermostats
• Compatible with Connect Series Heat Pump outdoor units
• Configured for up-flow or horizontal left application

Product Highlights

Quiet operation with sound levels as low as 51 dBs.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: UUY60ZGDAB
• Country of Origin: CN

Technical Specifications

• Color Appearance: White
• EER: 10
• HSPF Rating: 10
• Max. External Static Pressure: 0.60
• Outdoor Model to Complete Single Zone System: AUH4860ZGDA
• Product Type: Air Handling Unit
• SEER: 17
• Series: Connect
• Style: Air Handler
• Unit Type: Indoor
• Cooling Rated Capacity BTU/Hr: 60,000
• Nominal Capacity: 5 ton
