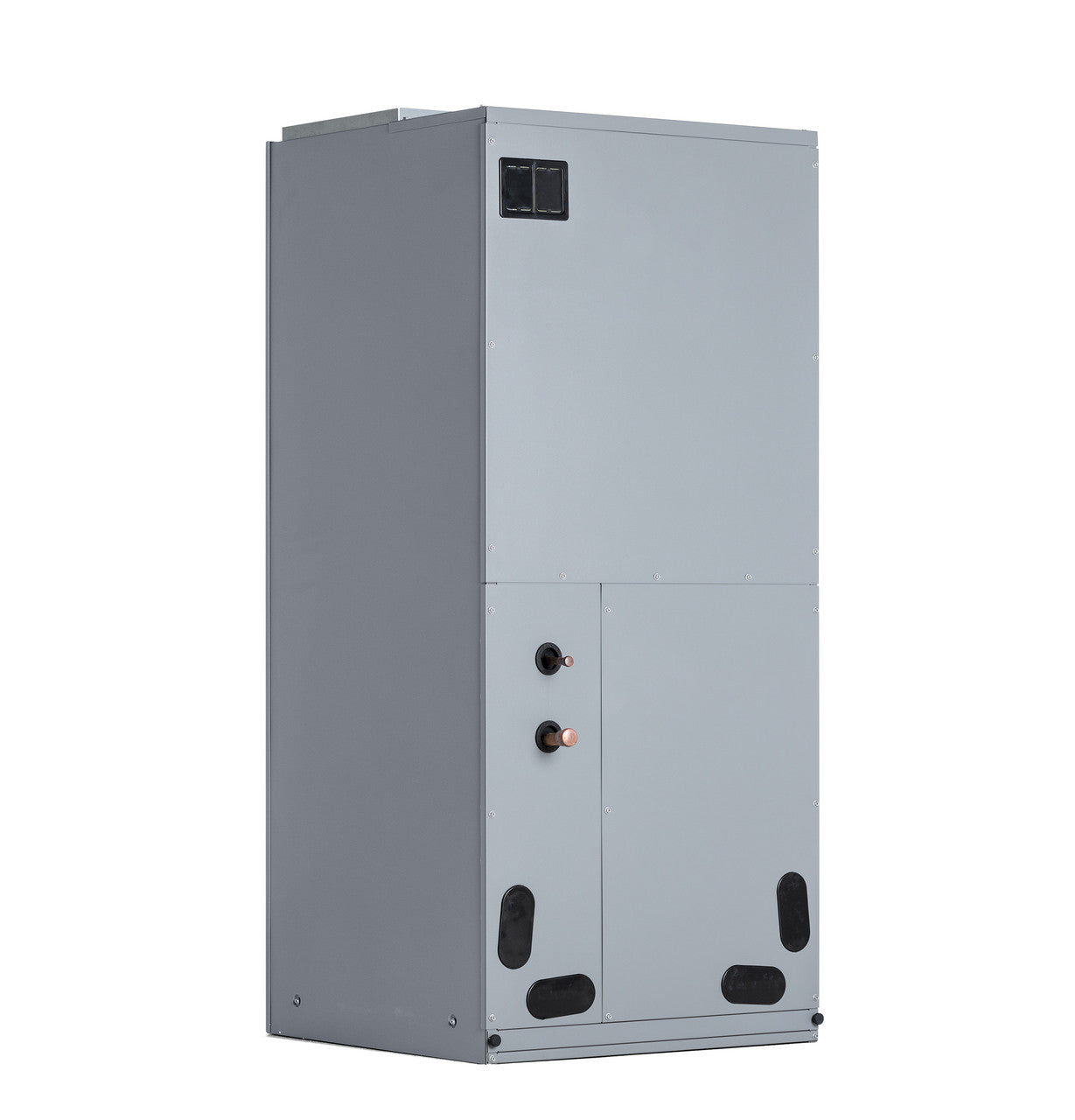

General Electric UUY48ZGDAB Connect Series Air Handling Unit 48,000 BTU

Product Description

The General Electric UUY48ZGDAB is a Connect Series Air Handling Unit designed for indoor use. This unit offers flexible thermostat capability, allowing application with many common 24 volt conventional thermostats. It is compatible with the Connect Series Heat Pump (AUH243ZGDA Outdoor Unit) and ships as an up-flow or horizontal left configuration. Operating quietly at levels as low as 51 dBs, it provides 48,000 BTU/Hr cooling capacity.

• Flexible Thermostat Capability for 24 volt conventional thermostats.
• Compatible with Connect Series Heat Pump (AUH243ZGDA Outdoor Unit).
• Quiet operation at levels as low as 51 dBs.

Product Highlights

ADA Compliant with built-in WiFi powered by SmartHQ™ for real-time feedback and optimized performance.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: UUY48ZGDAB

Technical Specifications

• Color Appearance: White
• EER: 11
• HSPF Rating: 10.5
• Max. External Static Pressure: 0.6
• Outdoor Model to Complete Single Zone System: AUH4860ZGDA
• Product Type: Air Handling Unit
• SEER: 18
• Series: Connect
• Style: Air Handler
• Unit Type: Indoor
• Manufacturer Part Number: UUY48ZGDAB
• Air Flow: 1300 CFM
• Cooling Capacity: 48000 BTU/H
• Heating Capacity: 48000 BTU/H
• Voltage: 208V-230V
