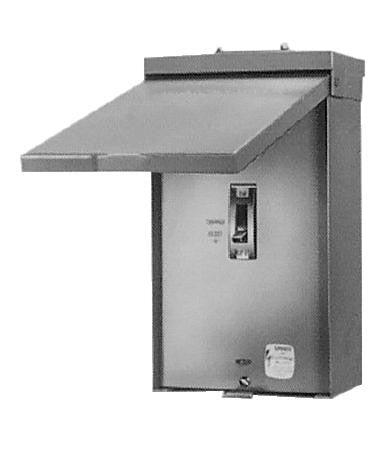

General Electric TQL125R Circuit Breaker Enclosure 125A 7-1/2 in x 5.2 in x 18-5/16 in NEMA 3R

Product Description

The General Electric TQL125R is a circuit breaker enclosure designed to provide durable protection for electrical connections. This enclosure fits various circuit breakers while maintaining a short circuit rating equal to that of the installed circuit breaker. It is suitable for surface mounting and has a NEMA 3R rating, making it effective for outdoor use.

• Surface mount installation for easy application.
• Rated for 125 amps at 600 VAC.
• Constructed from low carbon steel for strength.

Product Highlights

Effective for both residential and commercial applications, the TQL125R offers protection against dust and water. Ideal for environments requiring circuit breaker installations.

Product Information

Standard Information

• Brand: General Electric
• Part Number: TQL125R

Technical Specifications

• Color: Gray
• Depth: 5.2 inches
• Electrical Ratings: 125 A, 600 VAC
• Finish: Electro Coated Enamel
• Height: 18-5/16 inches
• Material: Low Carbon Steel
• Mounting Type: Surface
• NEMA Rating: NEMA 3R
• Number of Poles: 2
• Temperature Rating: 60/75 deg C
• Width: 7-1/2 inches
