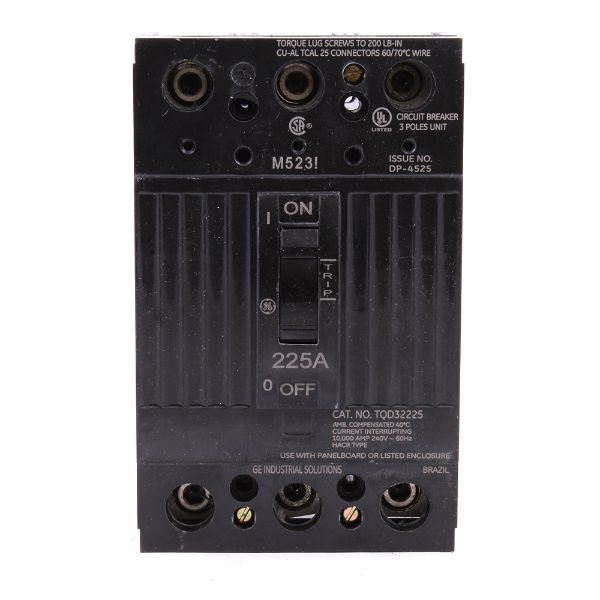

General Electric TQD32225WL GE Q-Line Type TQD Compact Molded Case Circuit Breaker 240 VAC 225 A 10 kA Interrupt 3 Poles

Product Description

The General Electric TQD32225WL is a type TQD compact molded case circuit breaker designed for various industrial applications. This device operates at a voltage rating of two hundred forty volts alternating current (VAC) and has a current rating of two hundred twenty-five amperes (A). It provides a ten kiloampere (kA) interrupt rating and features three poles. This circuit breaker is suitable for switchboards, motor control centers, and electrical distribution.

• Molded case made from strong, dielectric plastic
• Includes trip indication feature
• UL listed for safe electrical connections

Product Highlights

The breaker is designed for reliable operation with features that enhance performance and safety.

Product Information

Standard Information

• Brand: General Electric
• Part #: N2042

Technical Specifications

• Actuator Type: Pivot/Toggle
• Amperage Rating: 225 A
• Application: Industrial, Switchboards, Motor Control Centers, Lighting, Power and Customized Control Panelboards
• Connection Type: Line/Load Lug
• Country of Origin: UU
• Dimensions: 6-9/16 in H x 4-1/8 in W x 2-5/8 in D
• Frequency Rating: 50/60 Hz
• Includes: Internal Common Trip
• Interrupt Rating: 10 kA
• Material: Plastic
• Mounting Type: Bolt-On
• Number of Poles: 3
• Voltage Rating: 240 VAC
• Wire Size: 1 AWG to 300 kcmil
