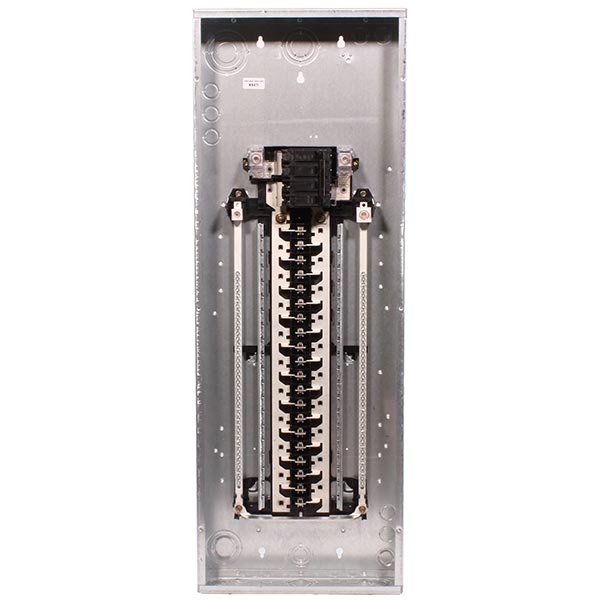

General Electric TM4020C80 GE PowerMark Plus 1-Phase Combination Top/Bottom Feed Main Breaker Loadcenter 120/240 VAC 200 A 22 kA Interrupt

Product Description

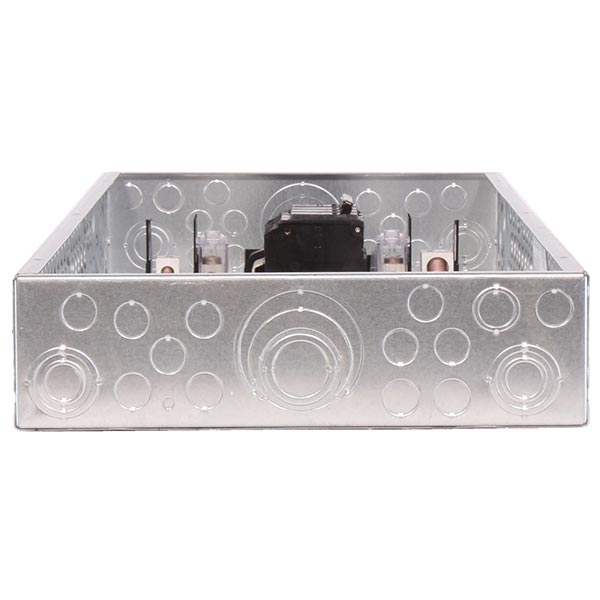

The General Electric TM4020C80 is a 1-phase combination top/bottom feed main breaker load center. It operates at 120/240 VAC with a capacity of 200 A and a 22 kA interrupt rating. This load center is ideal for service entrance applications and indoor use. Its design allows for reliable circuit protection for residential or commercial installations.

• Amperage rating of 200 A
• Interrupt rating of 22 kA
• NEMA 1 enclosure type

Product Highlights

This load center features a conductor rating of 60/75 degrees Celsius. Its compact design helps save space while providing robust electrical service.

Product Information

Standard Information

• Brand: General Electric
• Voltage Rating: 120/240 VAC

Technical Specifications

• Amperage Rating: 200 A
• Enclosure Box Size: 40-5/9 inches H x 15-3/8 inches W x 3-3/4 inches D
• Mounting Type: Flush
• Number of Circuits: 40
• Wire Size: 1 AWG to 250 kcmil Copper, 2/0 AWG to 250 kcmil Aluminum
• Wiring Configuration: 3-Wire
• Country of Origin: UU
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed
