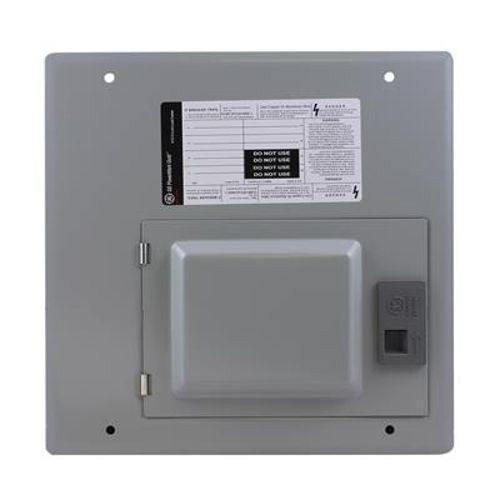

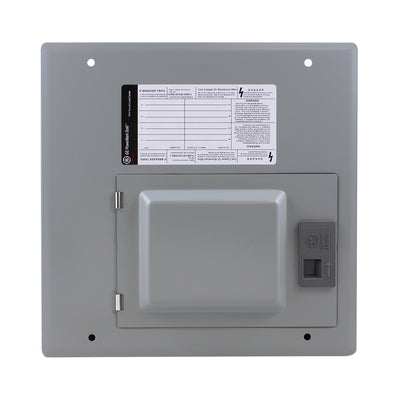

General Electric TLMQ812SCUD Load Center PowerMark Gold Convertible Main Lug

Product Description

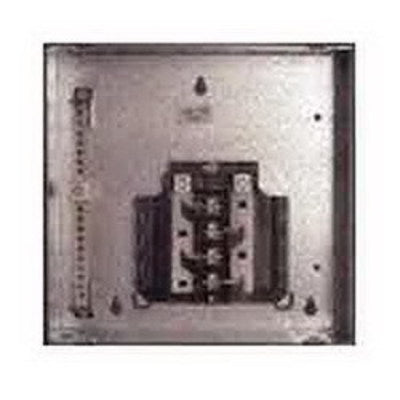

The General Electric TLMQ812SCUD is a PowerMark Gold load center, ideal for residential applications. This single-phase, three-wire convertible main lug load center operates at 120/240 VAC and is rated for 125 Amps.

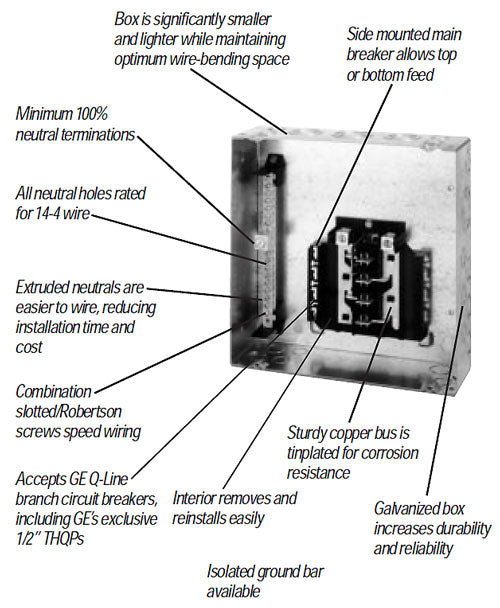

• Convertible main lug design allows conversion to main breaker.
• NEMA 1 enclosure suitable for indoor use.
• Accommodates THQL/THQP type breakers and wire sizes from 6 to 1 AWG.

Product Highlights

This load center features eight circuits and a 65kA interrupt rating, making it reliable for various electrical needs.

Product Information

Standard Information

• Brand: General Electric
• Trade Name: PowerMark Gold

Technical Specifications

• Main Type: Convertible
• Factory Installed: Main Lug (Convertible to Main Breaker)
• Interrupting Capacity Rating: 65 kA
• Phase: Single
• Wire: 3
• Amperage Rating: 125 A
• Input Voltage: 120/240 VAC
• Enclosure Type: NEMA 1
• Enclosure Mount Type: Flush
• Breaker Type: THQL/THQP
• Bus Rating: 125
• Wire Size: 6 to 1 AWG Al/Cu
• Dimensions: 12-3/8 in H x 12-5/8 in W x 3-3/8 in D
