General Electric THQP150 GED THQP 1 Pole 120/240V

Product Description

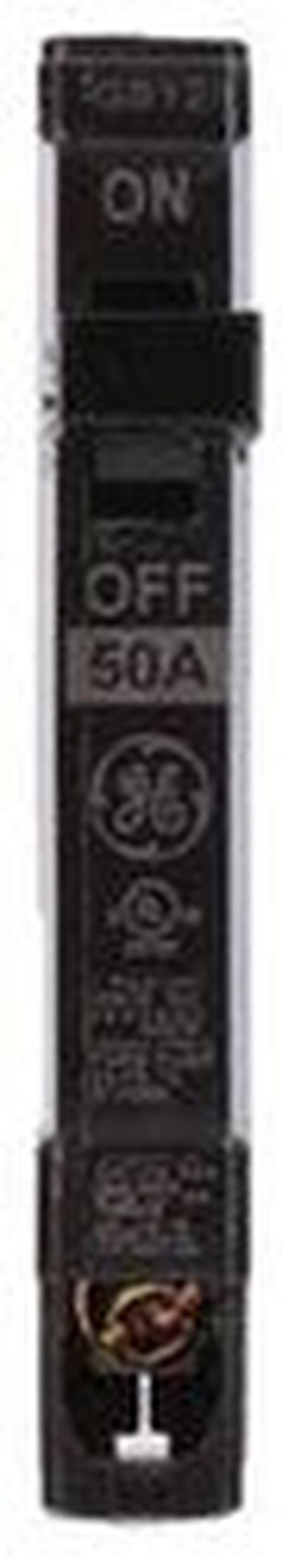

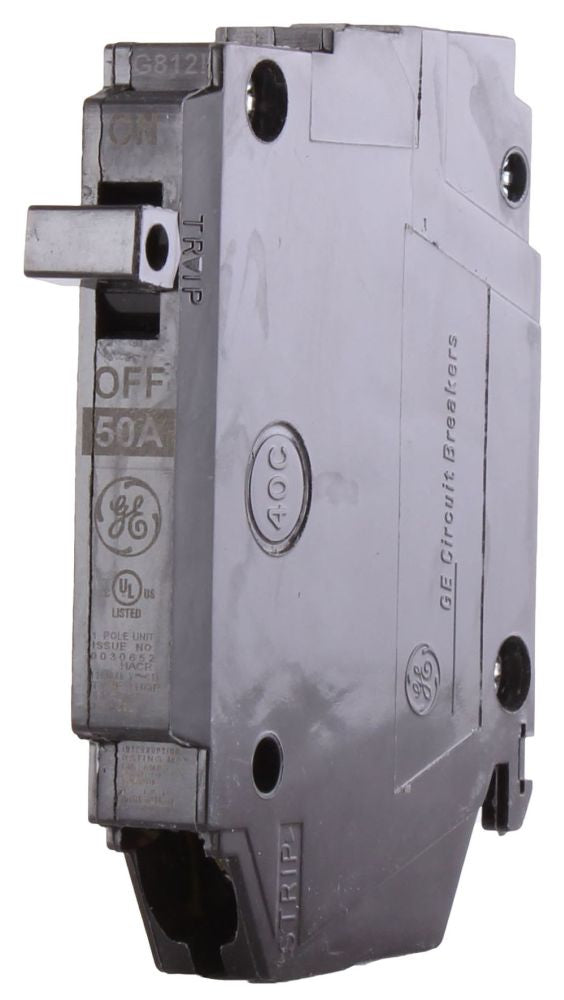

The General Electric THQP150 is a non-interchangeable circuit breaker with a thermal magnetic frame. It operates at a voltage rating of one hundred twenty to two hundred forty volts and has a maximum AC voltage rating of two hundred forty volts. This circuit breaker has a current rating of fifty amps and includes one pole. The interrupting rating is ten kiloamps at one hundred twenty to two hundred forty volts AC. The terminal type is plug-in, and the size measures one half inch in width. This model is UL approved.

• Voltage rating: 120/240 Volt AC
• Current rating: 50 Amp
• Number of poles: 1

Product Highlights

This circuit breaker is designed for HACR applications. It accepts wire sizes from eight to four AWG.

Product Information

Standard Information

• Manufacturer: General Electric
• MPN: THQP150

Technical Specifications

• Interrupting Rating: 10 kA
• Trip Function: LI
• Approval: UL
• Frame Type: Q-Line
• Application: HACR
• Connection: 8-4 kcmil
• Weight: 1.9 lbs
• Package Weight: 20.33 lbs
