Product Description

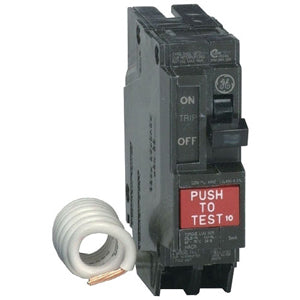

The General Electric THQL1115GF is a plug-in circuit breaker designed for use in electrical systems. This model provides reliable ground fault circuit interruption at a rating of fifteen amps.
- UL approved for use in various applications.
- Terminals support wire sizes from fourteen to eight AWG for copper and twelve to eight AWG for aluminum.
- Mounting is straightforward with a one-inch plug-in design.
Product Highlights
Great for protecting electrical systems from overload and ground faults. Ideal for use in Q-Line loadcenters, this breaker ensures safety and compliance with electrical guidelines.
Product Information
Standard Information
-
Manufacturer: General Electric
-
UPC: 783164085976
Technical Specifications
-
Approval: UL
-
Interrupting Rating: 10 Kiloampere
-
Mounting: 1 Inch Plug-In
-
Number Of Poles: 1
-
Size: 1 Inch x 2.38 Inch x 3.28 Inch
-
Trip Sensitivity: 5 Milliampere
-
Type: Molded Case, Thermal Magnetic
-
Used On: Q-Line Loadcenter
-
Wire Size: 14 to 8 AWG (Copper), 12 to 8 AWG (Aluminum)
