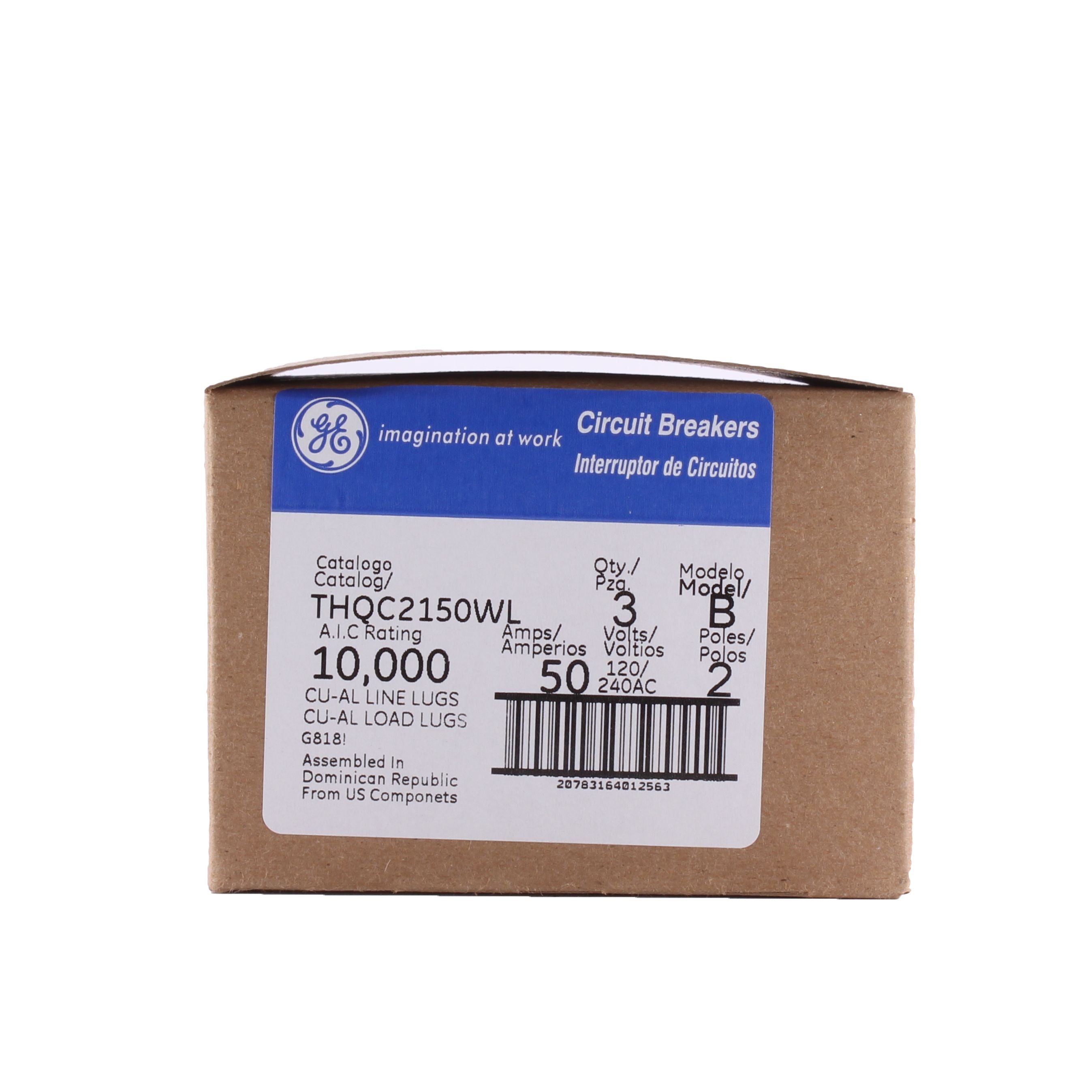

General Electric THQC2150WL Molded Case Circuit Breaker, 50A, 2 Poles

Product Description

The General Electric THQC2150WL is a molded case circuit breaker designed for residential and commercial applications. This 50 amp, two-pole circuit breaker is suitable for use in panelboards and offers excellent performance under varying loads.

• UL approved for safety compliance.
• Interrupting rating of 10 kiloamperes.
• Designed for mounting on a 35 mm DIN rail.

Product Highlights

The THQC2150WL provides reliable circuit protection while being compact and easy to install. It features a fixed thermal magnetic trip, ensuring proper functioning in a variety of settings.

Product Information

Standard Information

• Manufacturer: General Electric
• UPN: 783164012569
• Type: Molded Case, Fixed Thermal Magnetic, Internal Common Trip
• Used On: Panelboard

Technical Specifications

• Amperage Rating: 50 A
• Number of Poles: 2
• Interrupting Rating: 10 Kiloampere
• Size: 2 inches x 2.38 inches x 3.28 inches
• Wire Size: 8 to 3 AWG (Copper/Aluminum)
• Terminal Type: Copper/Aluminum Line and Load Lug
• Mounting: 35 MM DIN Rail
