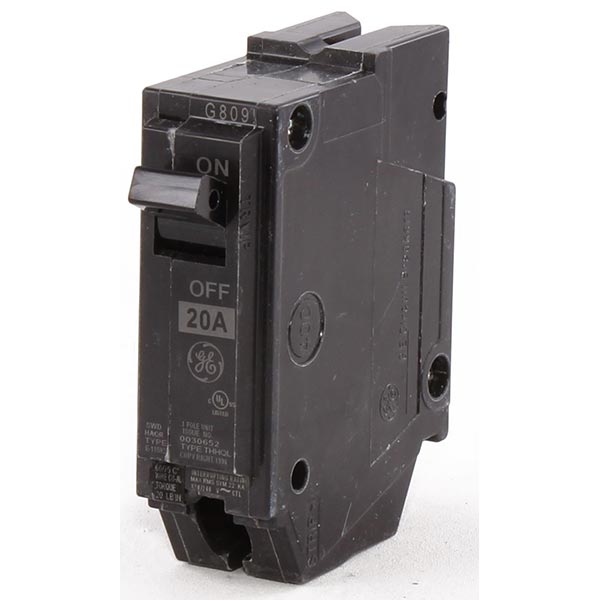

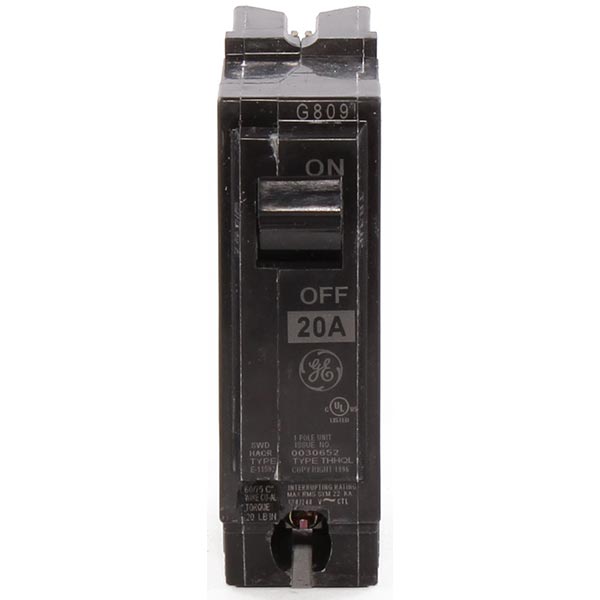

General Electric THHQL1120 Plug-In Circuit Breaker 20 AMP 1 Pole 22KA C

Product Description

The General Electric THHQL1120 is a plug-in circuit breaker with a capacity of twenty amps. This single-pole breaker offers a twenty-two kA interrupt rating, making it suitable for various applications. It is designed for use in both residential and commercial settings, ensuring reliability and safety.

• This breaker is ideal for AL series panelboards.
• It has a molded case that provides fixed thermal magnetic protection.
• Easy installation with a plug-in design for simplified connectivity.

Product Highlights

The THHQL1120 is compact and efficient, designed to meet the demands of electrical distribution systems while providing enhanced protection against overloads and short circuits.

Product Information

Standard Information

• Manufacturer: General Electric
• UPC: 783164117394

Technical Specifications

• Approval: UL
• Interrupting Rating: 22 Kiloampere
• Mounting: 1 Inch Plug-In
• Number Of Poles: 1
• Size REF: 1 IN x 2.38 IN x 3.28 IN
• Terminal Type: Copper/Aluminum Load Lug, Plug-In
• Type: Molded Case, Fixed Thermal Magnetic
• Used On: AL Series Panelboard
• Wire Size: 14 to 8 AWG (Copper)/12 to 8 AWG (Aluminum)
