General Electric THHQB2115 MCB 15A 22KA 2P 120/240V

Product Description

The GENERAL ELECTRIC THHQB2115 is a 2-pole, 15 Amp molded case circuit breaker designed for thermal-magnetic protection in both residential and commercial applications. This compact device features a bolt-on design for secure installation in load centers and lighting panels, offering a 22KA interrupting capacity at 120/240V. It is engineered for dependable branch circuit protection.

• Provides 15 Amp, 2 Pole, 120/240V operation
• Features a 22KA interrupting capacity
• Equipped with thermal-magnetic trip technology

Product Highlights

Compact thermal-magnetic circuit breaker providing dependable protection for branch circuits in residential and commercial applications.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: THHQB2115
• Country of Origin: United States

Technical Specifications

• Brand: GENERAL ELECTRIC
• MPN: THHQB2115
• Type: MCB
• Amperage: 15A
• Interrupting Capacity: 22KA
• Poles: 2P
• Voltage: 120/240V
• Model Number: GETHHQB2115
• Mounting Type: Plug-In Mount
• Country of Origin: United States
• Series: THHQB
• Phase: 1

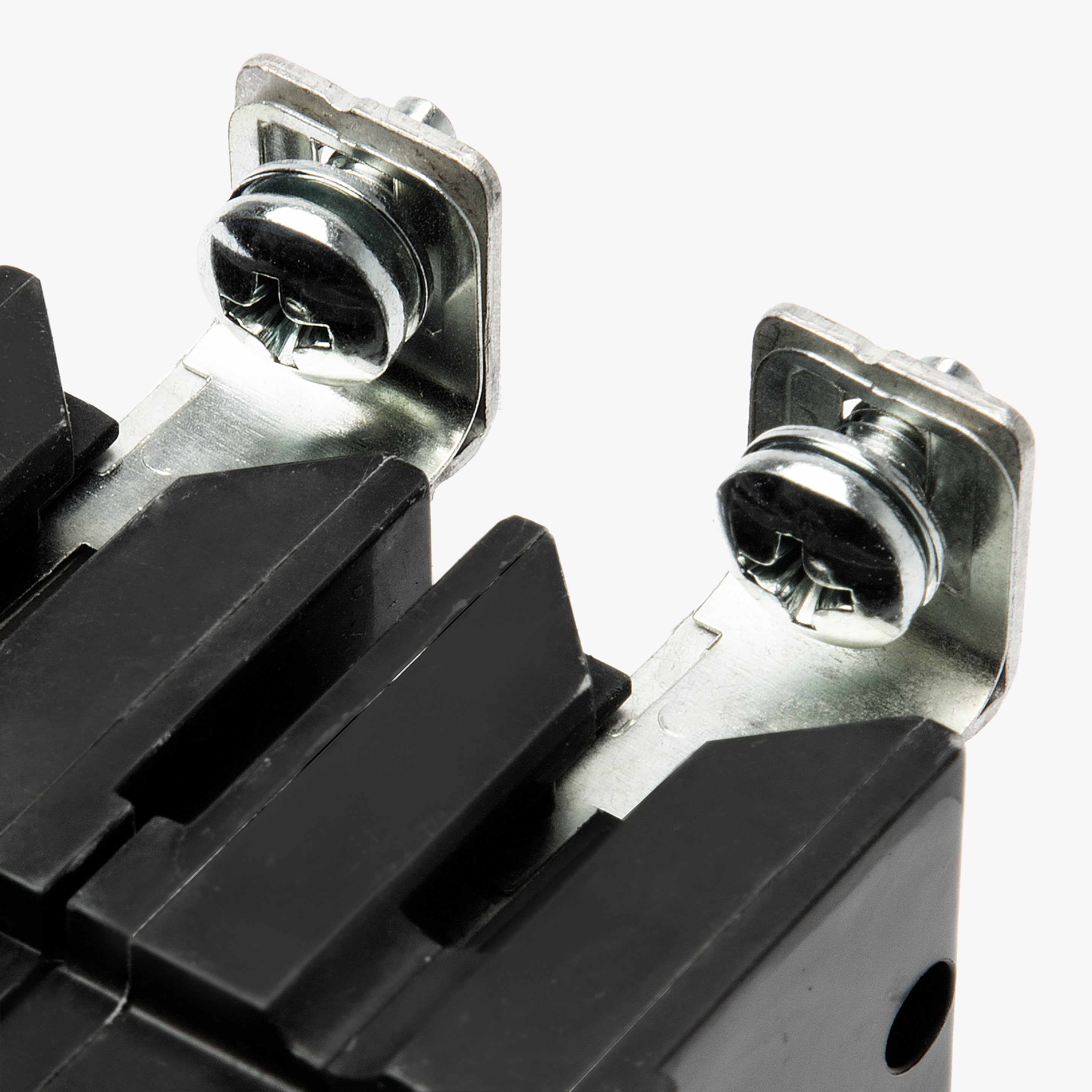

• Terminal Type: Box Lugs
• Compatible With: GE A-Series Panelboards, ReliaGear RQ Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al)
• Max Wire Gauge: 8 AWG
• Min Wire Gauge: 14 AWG (Cu), 12 AWG (Al)
• Available Options: Shunt Trip, Auxiliary Switch, Padlock Attachment
• Accessories: Load Side Lugs Included
• Standards: CSA C22.2 No. 5, NEMA AB 1, UL 489
• Approval: CSA, UL
• Operating Temperature: 10C to 50C
• Construction Features: HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator, Non-Interchangeable Trip
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Continuous Current Rating: Standard
• Suitable for Reverse Feed: Yes
• Long Time Trip: Fixed
• Instantaneous Trip: Fixed
• Protective Relays: No
• Current Metering: No
• Special Markings: HACR
• GSA Compliance: No
• UL Listing: SWD (Switching Duty) rated, HACR (heating, air conditioning and refrigeration)
• Application: Commercial panel boards, schools, offices, light industry
• Fluorescent Lighting Load Compatibility: Suitable for switching 120 VAC fluorescent lighting loads
• Breaker Type: Commercial Duty
