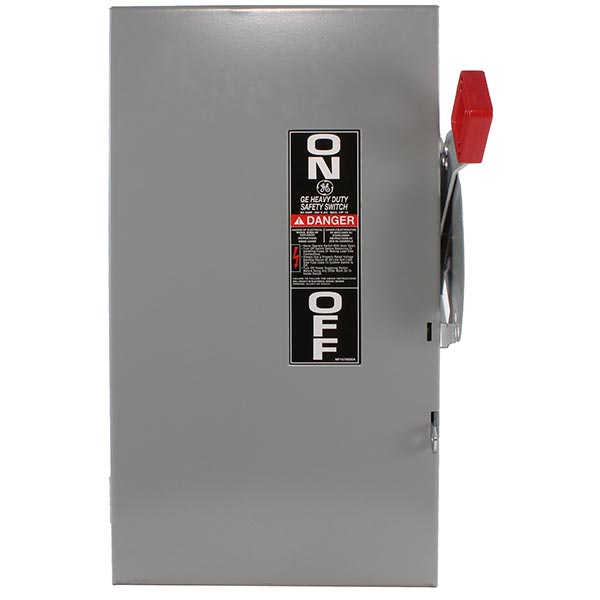

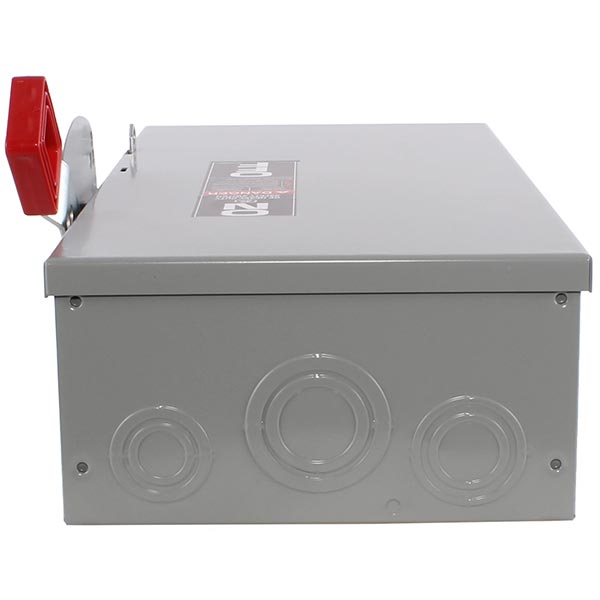

General Electric TH4322 GE Spec-Setter Fused Heavy Duty Safety Switch 240 VAC 60 A 7-1/2 hp

Product Description

The General Electric TH4322 is a fused heavy duty safety switch designed for commercial and industrial applications. It operates at two hundred forty volts alternating current and has a current rating of sixty amperes. This model can accommodate motors up to seven and one-half horsepower.

• Suitable for service equipment when installed according to national electrical code
• Easy installation with a three-point mounting pattern
• Clear line shield for visual verification of blade position

Product Highlights

Durable construction and reliable performance make this safety switch an ideal choice for various electrical distribution needs. Its robust features ensure safe operation in demanding environments.

Product Information

Standard Information

• Brand: General Electric
• Type: Fused Heavy Duty

Technical Specifications

• MPN: TH4322
• Amperage Rating: 60 A
• Voltage Rating: 240 VAC
• Horsepower Rating: 7.5 hp
• Number of Poles: 3
• Enclosure Type: NEMA 1
• Dimensions: 17.6 in H x 10.1 in W x 9 in D
• Material: Stainless Steel
• Mounting Type: 3-Point/Self-Leveling
• Temperature Rating: 60 to 75 deg C
• Insulation Type: Class H/J/K/R
