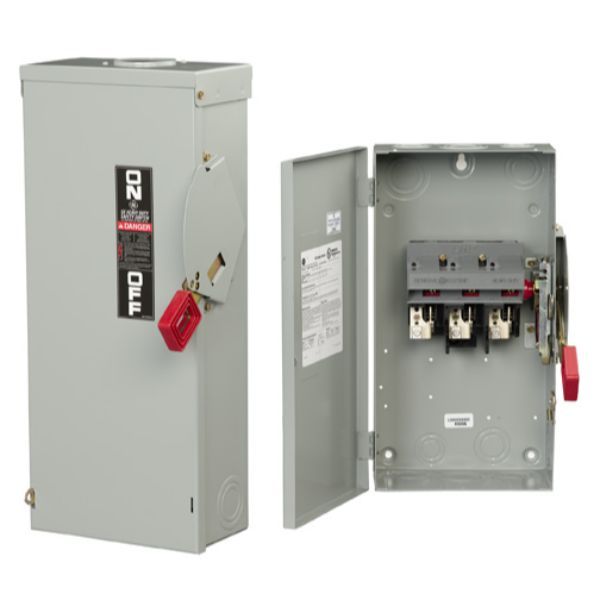

General Electric TH3365 GE Spec-Setter TH Series Fusible Heavy Duty Safety Switch, 600 VAC, 400 A, 125 hp Standard Fuse/350 hp Time Delay

Product Description

The General Electric TH3365 is a GE Spec-Setter TH Series Fusible Heavy Duty Safety Switch. It is designed for use in commercial and industrial applications requiring high performance and reliability.

• Fusible heavy duty construction
• Suitable for 600 VAC systems
• Rated for 400 A and 3 poles

Product Highlights

This switch features a donut handle for hook stick operation and supports up to three padlocks in the OFF position. The quick-make and quick-break mechanism ensures positive ON/OFF indication. The self-leveling, three-point mounting system simplifies installation.

Product Information

Standard Information

• Brand: General Electric
• MPN: TH3365

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 400 A
• Horsepower: 125 hp Standard Fuse / 350 hp Time Delay
• Number of Poles: 3
• Frequency Rating: 50/60 Hz
• Dimensions: Fifty-three point nine inches high x twenty-two point nine inches wide x eight point three inches deep
• Enclosure Type: NEMA 1
• Short Circuit Current Rating: 200 kA
• Temperature Rating: sixty to seventy-five degrees Celsius
• Mounting Type: Surface
