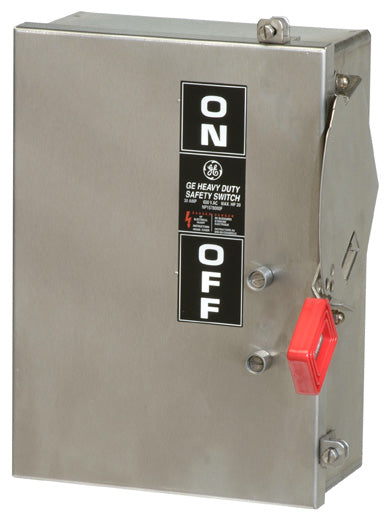

General Electric TH3362SS Spec-Setter Fused Heavy Duty Safety Switch, 600 VAC, 60 A, 15 hp, 3 Poles

Product Description

The General Electric TH3362SS is a fused heavy-duty safety switch designed to handle voltages up to six hundred VAC and currents of sixty amps. This product features three poles and is suitable for various commercial and industrial applications.

• Highly visible ON/OFF label promotes safety.
• Clear line shield allows visual confirmation of blade position.
• Plated blades ensure durability and performance.

Product Highlights

This switch is designed for robustness and reliability in demanding environments, ensuring smooth operation and quick installation.

Product Information

Standard Information

• Brand: General Electric
• Model Number: TH3362SS

Technical Specifications

• Type: Fused Heavy Duty
• Voltage Rating: 600 VAC
• Amperage Rating: 60 A
• Number of Poles: 3
• Horsepower Rating: 15 hp
• Enclosure Type: NEMA 4/4X
• Dimensions: 10.1 in W x 9.6 in D x 19.3 in H
• Material: 304 Stainless Steel
• Temperature Rating: 60 to 75 deg C
• Frequency Rating: 50/60 Hz
• Short Circuit Current Rating: 200 kA
