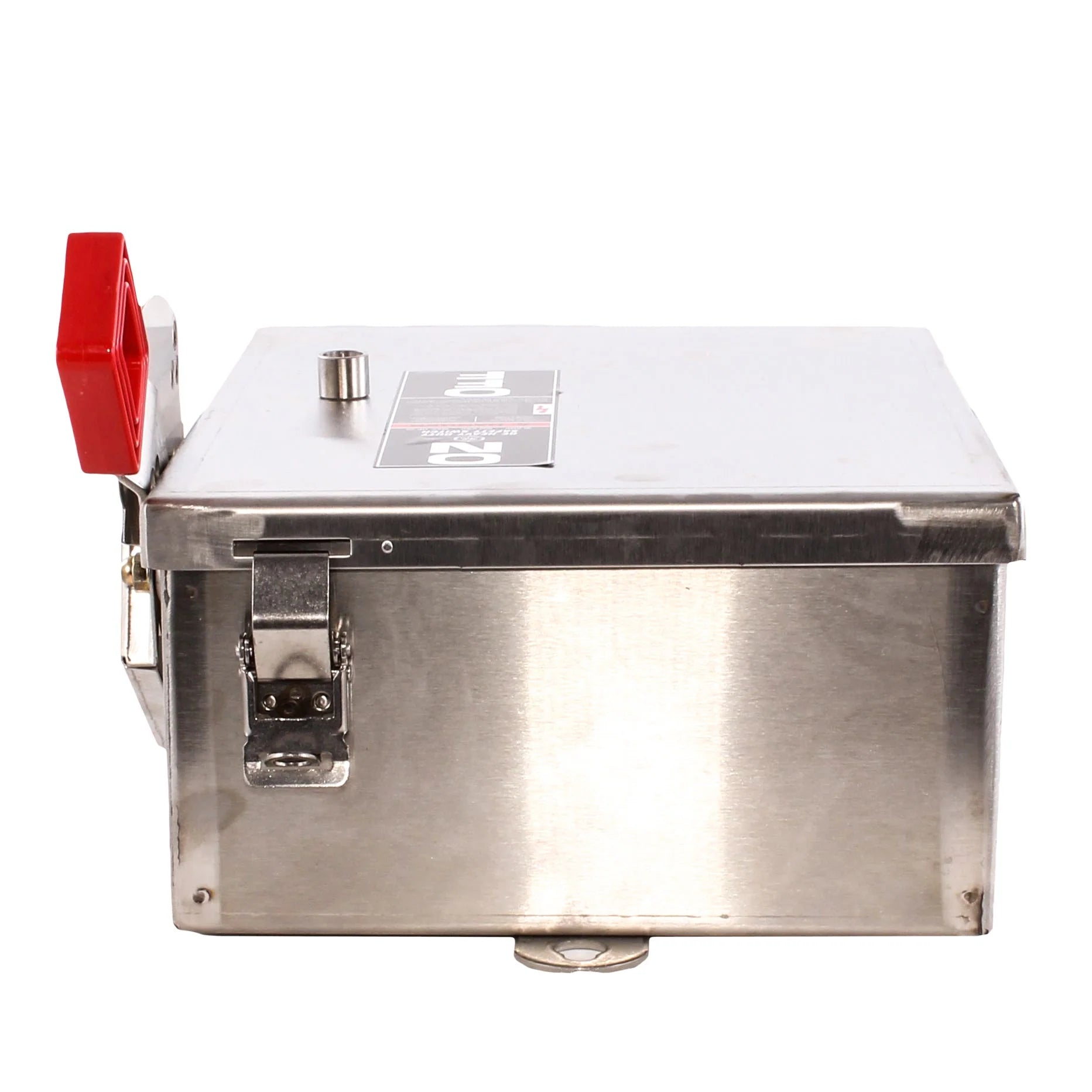

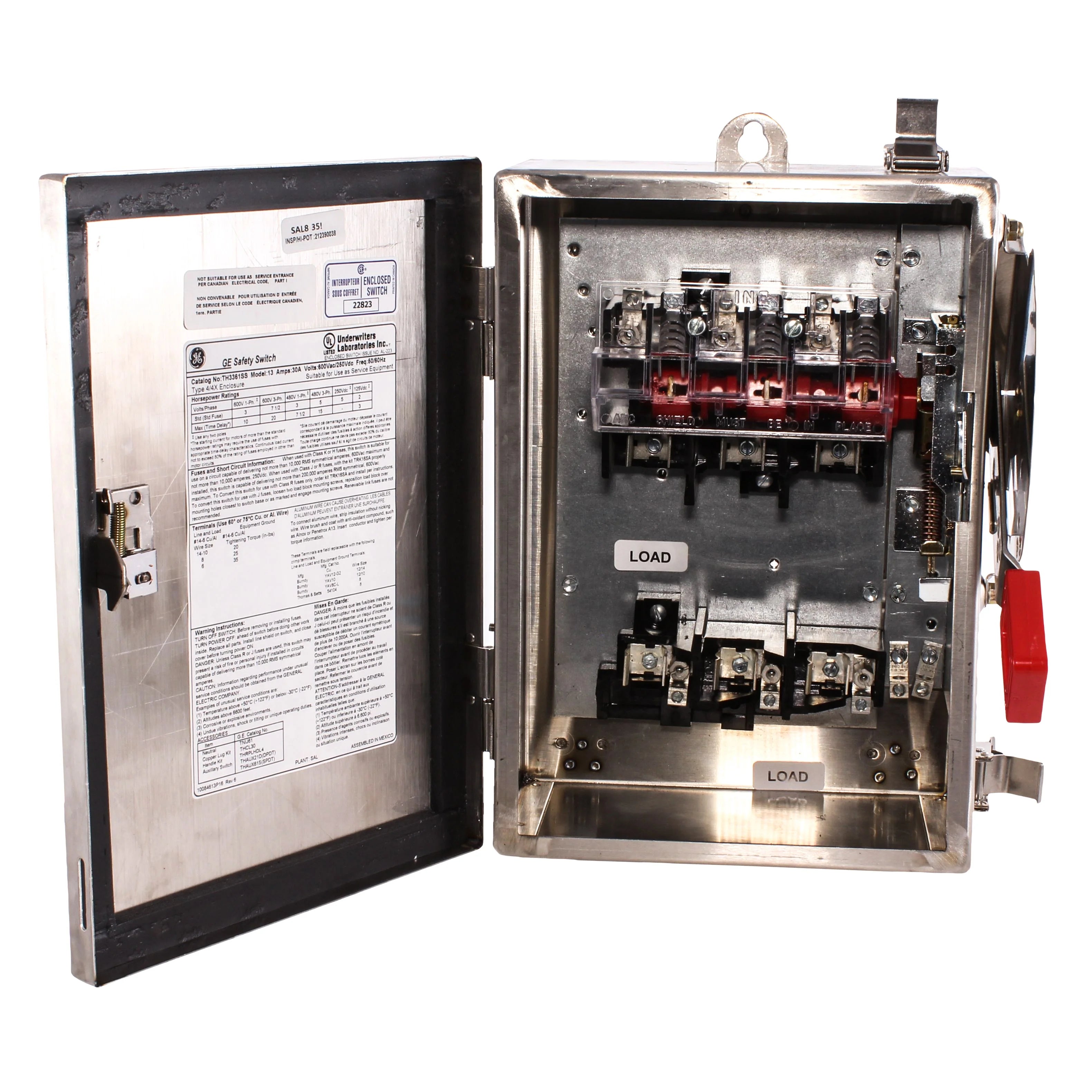

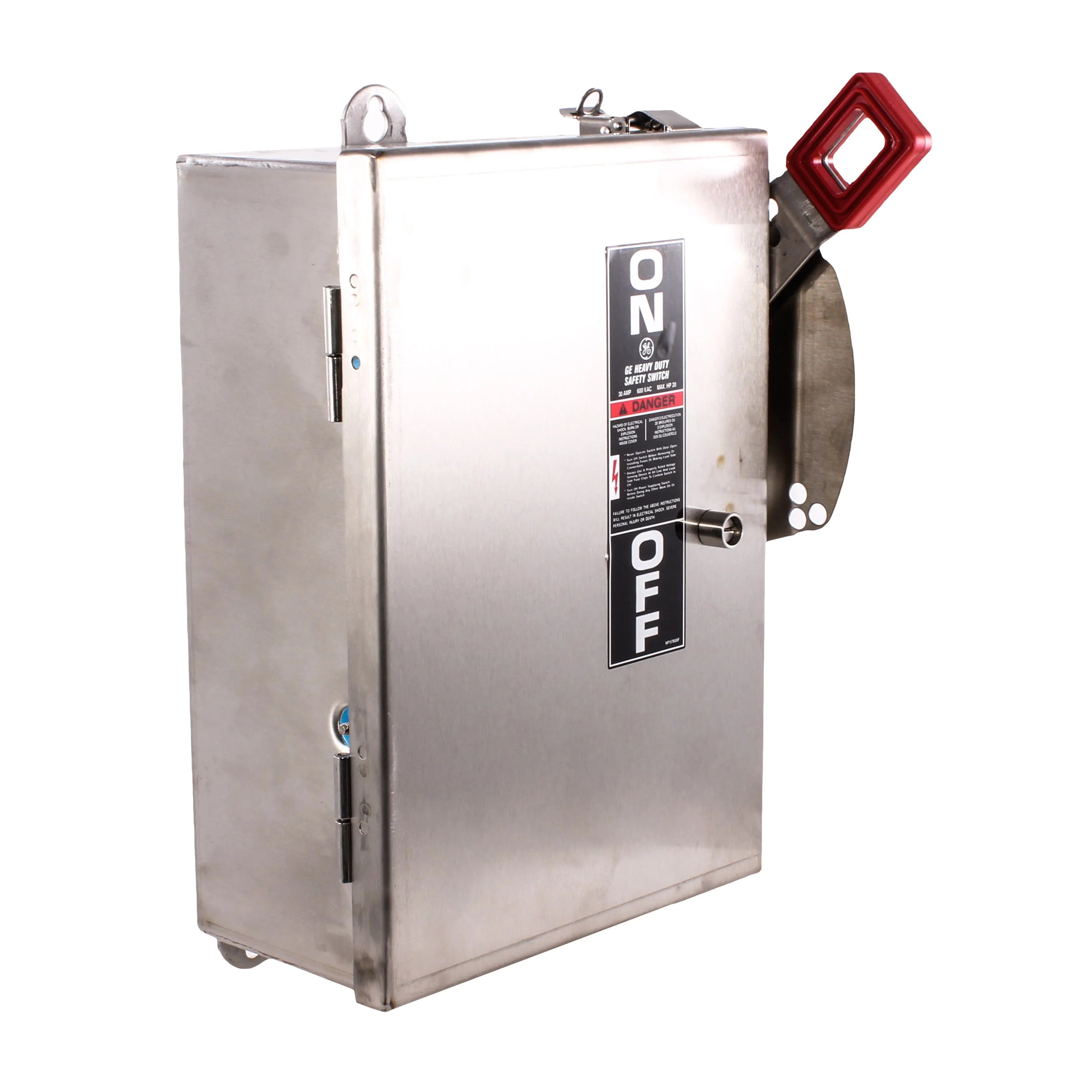

General Electric TH3361SS GE Spec-Setter Fused Heavy Duty Safety Switch 600 VAC 30 A 7-1/2 hp

Product Description

The General Electric TH3361SS is a fused heavy-duty safety switch designed for high-performance applications. This switch operates at a voltage rating of 600 VAC and a current rating of 30 A, making it suitable for various commercial and industrial environments. Its three-pole configuration allows for versatile installation options.

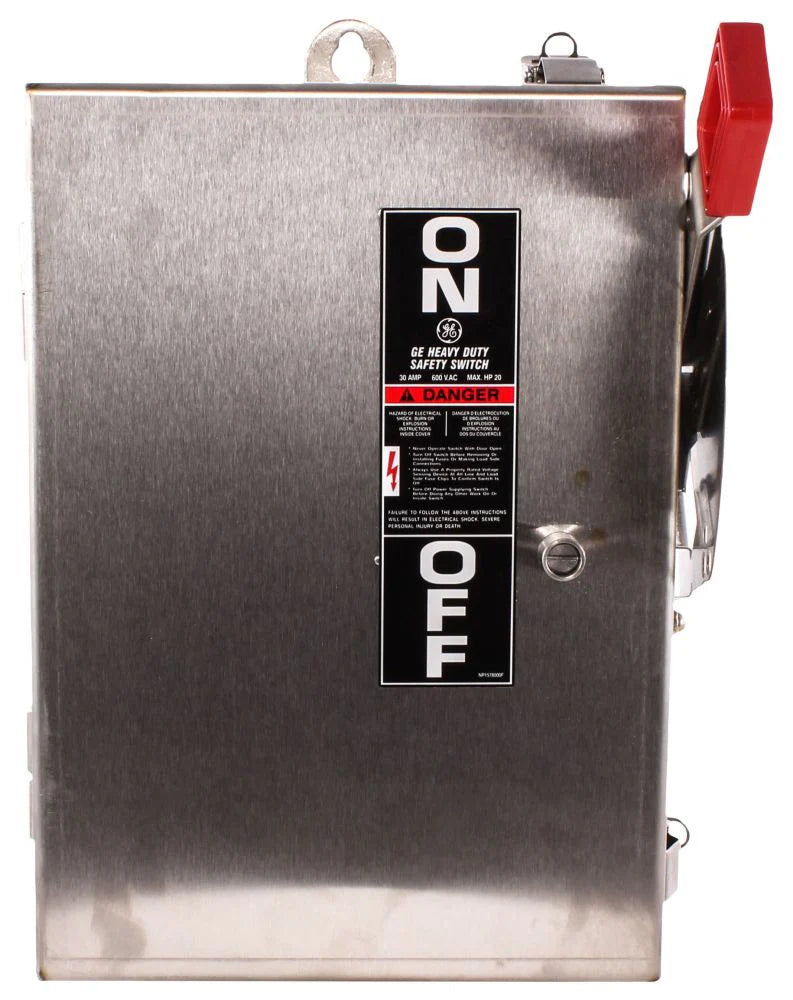

• Highly visible ON/OFF label ensures clear indication of switch position.
• Coin-proof, defeatable dual interlocks comply with all safety standards.
• Quick-make, quick-break mechanism prolongs switch life.

Product Highlights

This safety switch provides reliable performance and is ideal for environments requiring robust safety measures. It is suitable for connecting various wire sizes from fourteen to six AWG.

Product Information

Standard Information

• Manufacturer: General Electric
• Part Number: TH3361SS

Technical Specifications

• Type: Fused Heavy Duty
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Horsepower: 7-1/2 hp
• Phase: 3 Ph
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
• Number of Wires: 3
• Short Circuit Current Rating: 200 kA
• Actuator Type: Handle
• Insulation Type: Class H/J/K/R
• Enclosure Type: NEMA 4/4X
• Mounting Type: 3-Point/Self-Leveling
• Temperature Rating: 60 to 75 deg C
• Dimensions: 10.1 in W x 9.4 in D x 13.3 in H
• Material: 304 Stainless Steel
• Finish: Hot Dipped Galvanized/Powder Coated
