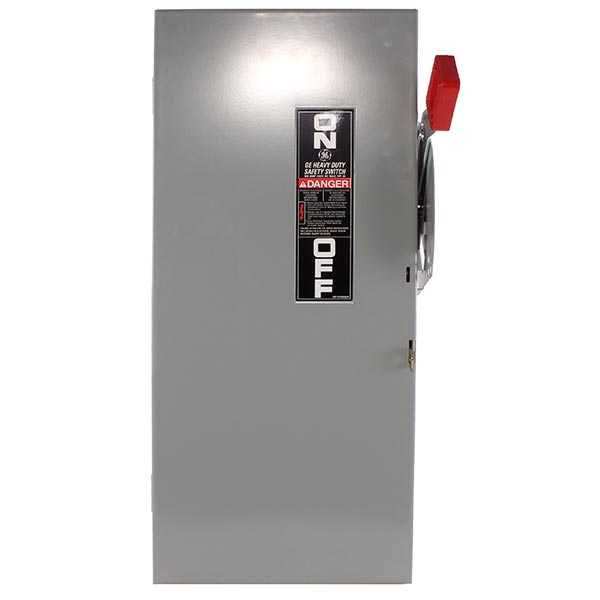

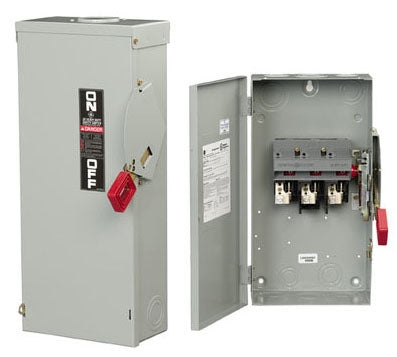

General Electric TH3223 Safety Switch 100A 240V 2P Fusible

Product Description

The General Electric TH3223 is a safety switch designed for commercial and industrial usage. This unit has a 100 amp rating and operates at 240 volts with two poles. The fusible safety switch provides reliable protection for electrical systems by facilitating safe power management. It is suitable for applications requiring strict adherence to safety standards, ensuring continuous performance under demanding conditions.

• 100A rating for heavy-duty applications
• UL 98 and CSA certified for safety
• Designed with a visible ON/OFF indication

Product Highlights

Ideal for electrical control and distribution. The switch features a direct-drive mechanism for reliable operation.

Product Information

Standard Information

• Manufacturer: General Electric
• UPC: 783164008999

Technical Specifications

• AC Voltage Rating: 240 Volt
• DC Voltage Rating: 250 Volt
• Amperage Rating: 100 A
• Power Rating: 7.5 HP at 240 Volt AC 1-Phase
• Enclosure Type: NEMA 1
• Number of Poles: 2
• Number of Wires: 3
• Size: 21.3 inches height x 9.3 inches width x 4.8 inches depth
• Fuse Type: Class H/J/R
