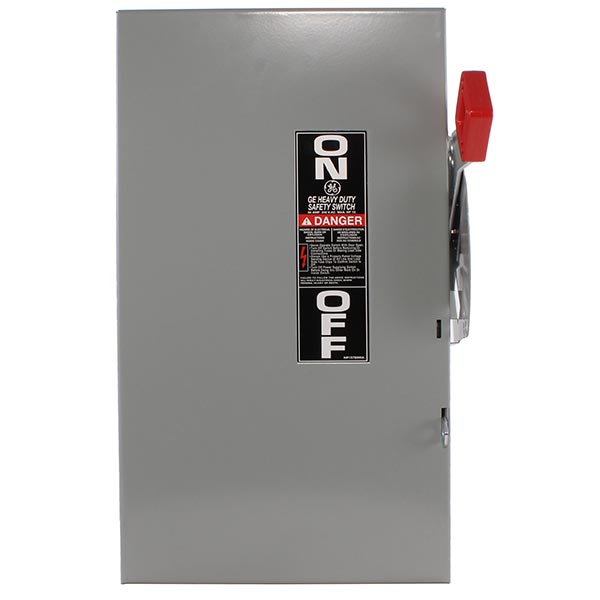

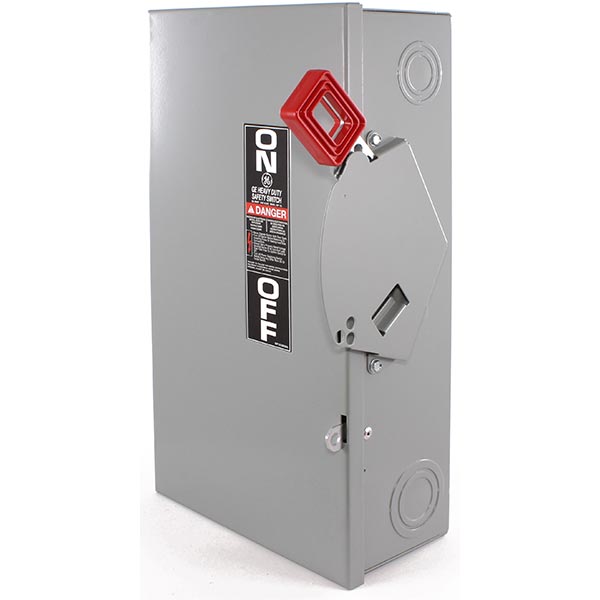

General Electric TH3222 Fused Heavy Duty Safety Switch 240 VAC 60 A 3 hp 2 Poles

Product Description

The General Electric TH3222 is a fused heavy-duty safety switch rated for two poles and up to sixty amperes at two hundred forty volts alternating current. Designed for commercial and industrial applications, this safety switch includes protective features to ensure safe operation.

• Suitable for service equipment as per the national electrical code
• Quick make, quick break mechanisms for reliable operation
• Full cover interlocks enhance safety

Product Highlights

This heavy-duty safety switch is ideal for protecting electrical circuits in industrial settings. It combines performance with safety features and meets stringent standards for commercial use.

Product Information

Standard Information

• Brand: General Electric
• MPN: TH3222

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 240 VAC
• Dimensions: 17.6 inches H x 10.1 inches W x 9 inches D
• Horsepower: 3 hp
• Enclosure Type: NEMA 1
• Number of Poles: 2
• Temperature Rating: 60 to 75 degrees C
• Weight: 0.034 lb
