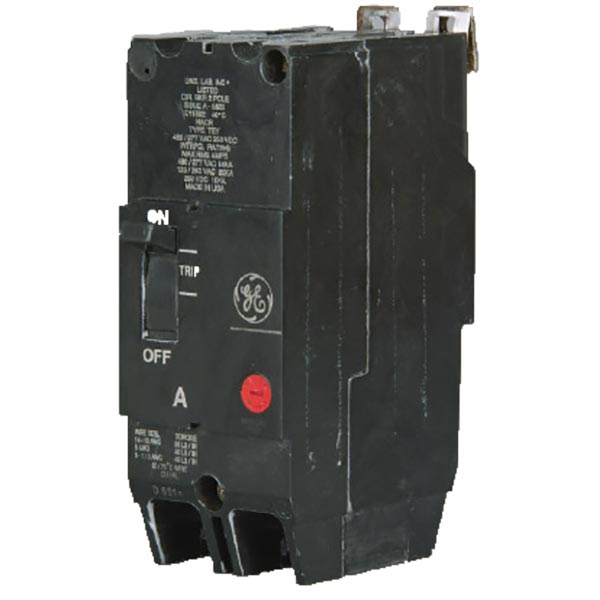

General Electric TEY280 Molded Case Circuit Breaker 80A 2P 277V

Product Description

The General Electric TEY280 is an 80 Amp, two-pole molded case circuit breaker designed for use in grounded 480Y/277 VAC systems. This compact circuit breaker features a one-inch width per pole and a bolt-on mounting base for easy installation in various applications.

• 80 Amp rated capacity
• Quick-make/quick-break mechanism
• Suitable for multiple applications including lighting and power distribution

Product Highlights

The TEY280 circuit breaker is suitable for switchboards and motor control centers and meets industry standards for safety and reliability.

Product Information

Standard Information

• Brand: General Electric
• Manufacturer: ABB Electrification

Technical Specifications

• MPN: TEY280
• Amperage Rating: 80 A
• Number of Poles: 2
• Operating Voltage: 120/240/277 VAC
• Interrupting Rating: 14 kA at 277 VAC, 65 kA at 240 VAC
• Dimensions: 2 inches wide x 3.06 inches deep x 5.25 inches high
• Frame Type: TEY
• Terminal Type: Copper/Aluminum Load Lug
• Mounting Type: Bolt-On
