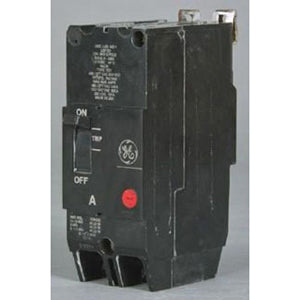

General Electric TEY250 Molded Case Circuit Breaker 50A 2P 277V

Product Description

The General Electric TEY250 is a molded case circuit breaker designed for reliable electrical protection. This unit operates at 50 Amperes and is suitable for two poles at a voltage rating of 277 Volts AC. The compact design makes it a versatile choice for various applications including switchboards and motor control centers.

• Two-pole circuit breaker
• Rated for 50 Amperes
• Maximum AC voltage rating of 277 Volts

Product Highlights

The TEY250 features a quick-make quick-break mechanism for enhanced safety, a common trip bar, and easy trip indication.

Product Information

Standard Information

• Manufacturer: General Electric
• UPC: 783164180992

Technical Specifications

• Type: Molded Case, Thermal Magnetic
• Number of Poles: 2
• Amperage Rating: 50 A
• Interrupting Rating: 65 kA at 240 VAC, 14 kA at 277 VAC
• Dimensions: 5.25 in H x 2 in W x 3.06 in D
• Terminal Type: Copper/Aluminum Load Lug
• Maximum AC Voltage Rating: 480 Star/277 V
• Maximum DC Voltage Rating: 250 V
• Frame Type: TEY
