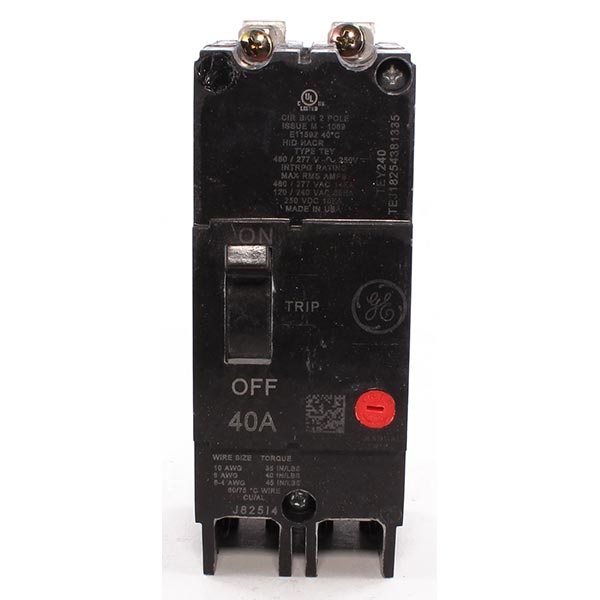

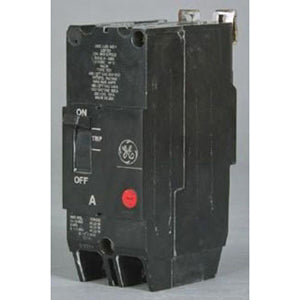

General Electric TEY240 Molded Case Circuit Breaker 40A 2P 277V

Product Description

The General Electric TEY240 is a molded case circuit breaker rated for forty amps and designed for two poles and a voltage of two hundred seventy-seven volts. This compact breaker features a thermal magnetic trip design suitable for a variety of applications including lighting and power distribution. It is built for reliability and ease of installation in commercial and industrial settings.

• Compact one-inch width per pole for space-saving installations.
• Dual voltage rating supports both 277 VAC and 480 VAC systems.
• Quick-make/quick-break mechanisms enhance safety and operational efficiency.

Product Highlights

The TEY240 is ideal for installation in switchboards and motor control centers due to its robust interrupt rating and compact design. With easy installation features, it caters to diverse electrical distribution needs.

Product Information

Standard Information

• Brand: General Electric
• Manufacturer: General Electric

Technical Specifications

• MPN: TEY240
• Amperage Rating: 40 A
• Number Of Poles: 2
• Voltage Rating: 120/240/277 VAC
• Frame Type: TEY
• Interrupt Rating: 65 kA at 120/240 VAC, 14 kA at 277 VAC
• Size REF: 2 in x 3.06 in x 5.25 in
• Terminal Type: Copper/Aluminum Load Lug
• Temperature Rating: 40 °C
• Connection Type: Load Lug
