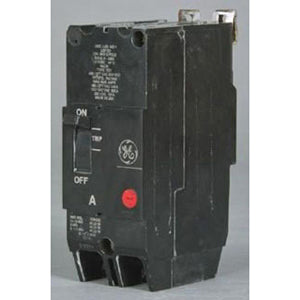

General Electric TEY230 Molded Case Circuit Breaker 30A 277V

Product Description

The General Electric TEY230 is a molded case circuit breaker rated at thirty amperes and designed for two-pole operation at a maximum voltage of two hundred seventy-seven volts AC. This circuit breaker is suitable for various applications in industrial settings where space is a constraint.

• Compact design at one inch wide per pole.
• Interrupting ratings of sixty-five kiloamperes at two hundred forty volts AC.
• Compatible with copper and aluminum load lugs.

Product Highlights

The TEY230 breaker is ideal for light industrial use, featuring a quick-make, quick-break mechanism for enhanced safety.

Product Information

Standard Information

• Manufacturer: General Electric
• UPC: 783164180978

Technical Specifications

• Type: Molded Case, Thermal Magnetic
• Frame Type: TEY
• Interrupting Rating: 65 Kiloampere at 240 VAC, 14 Kiloampere at 277 VAC
• Number of Poles: 2
• Maximum AC Voltage Rating: 480 Star/277 V
• Maximum DC Voltage Rating: 250 V
• Size: 2 inches x 3.06 inches x 5.25 inches
• Terminal Type: Copper/Aluminum Load Lug
