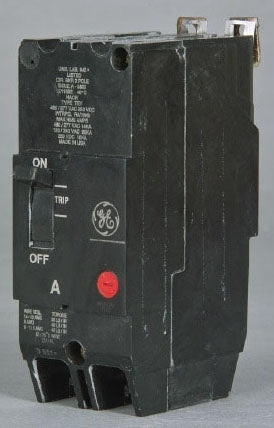

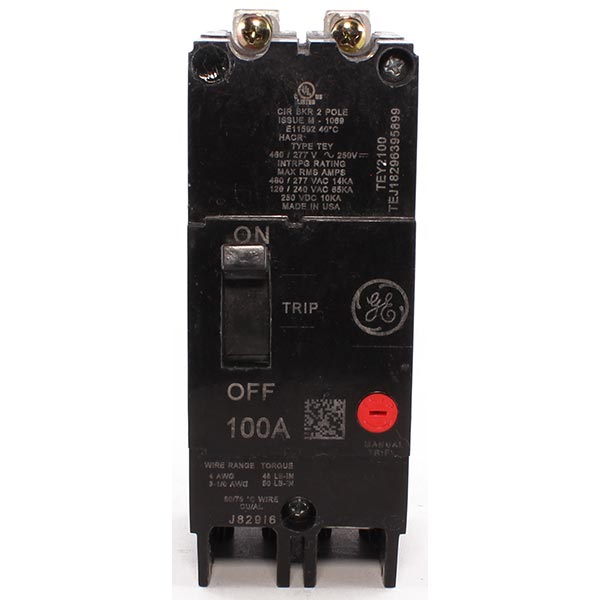

General Electric TEY2100 Molded Case Circuit Breaker 100A 2P 277V TEY2100

Product Description

The General Electric TEY2100 is a molded case circuit breaker designed for efficient performance in electrical distribution. This model features a current rating of one hundred amperes and is suitable for two poles. It operates at a maximum voltage of two hundred seventy-seven volts AC. The TEY2100 is ideal for applications in switchboards and motor control centers where reliable circuit protection is essential.

• UL and cUL approved
• Compact design with each pole measuring one inch
• Interrupt rating of sixty-five kiloamperes at two hundred forty volts

Product Highlights

The TEY2100 circuit breaker is designed with quick-make and quick-break mechanisms to ensure safety during electrical faults. It includes a bolt-on mounting base for easy installation and compatibility with various applications.

Product Information

Standard Information

• Manufacturer: General Electric
• Amperage Rating: 100 A

Technical Specifications

• Approval: UL, cUL
• Frame Type: TEY
• Interrupting Rating: 65 Kiloampere at 240 VAC, 14 Kiloampere at 277 VAC
• Maximum AC Voltage Rating: 480 Star/277 V
• Maximum DC Voltage Rating: 250 V
• Number Of Poles: 2
• Terminal Type: Copper/Aluminum Load Lug
• Dimensions: 2 inches x 3.06 inches x 5.25 inches
