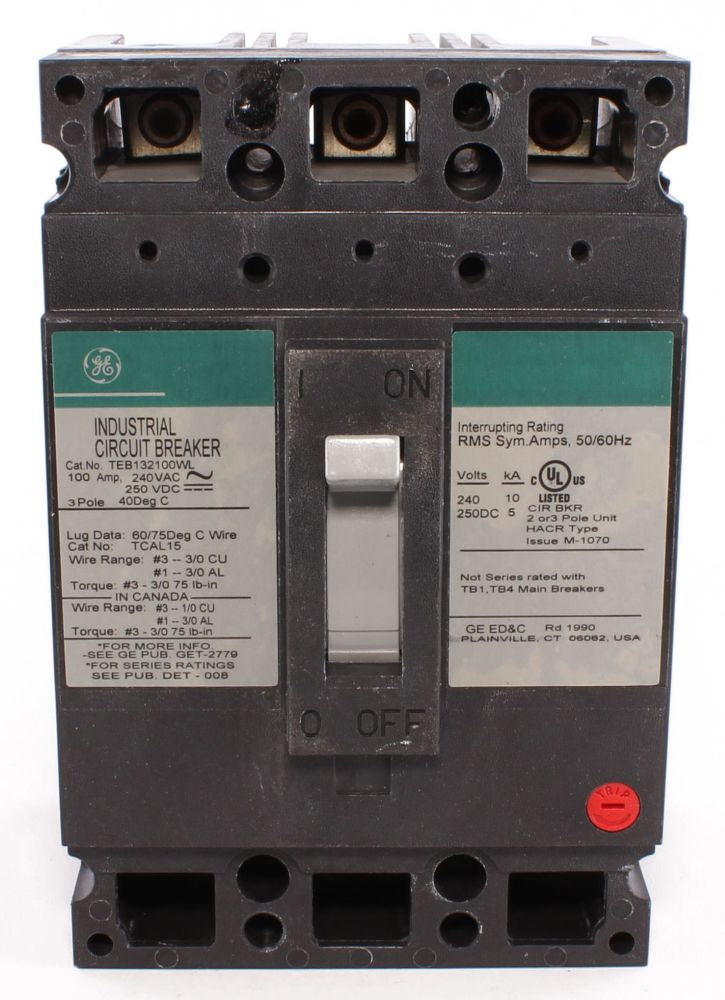

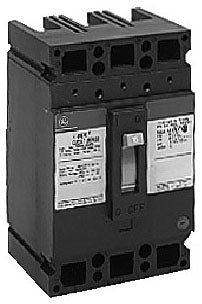

General Electric TEB132100WL Molded Case Circuit Breaker 100A 3P 240V

Product Description

The General Electric TEB132100WL is a molded case circuit breaker designed for industrial applications with a voltage rating of two hundred forty volts and a current rating of one hundred amps. This circuit breaker is suitable for reverse feed and features a thermal magnetic trip type, ensuring reliability in various situations.

• UL and CSA approved for safety compliance
• Three-pole configuration for versatile circuit protection
• Interrupting capacity of ten kiloamperes for circuit safety

Product Highlights

The TEB132100WL is ideal for use in electrical distribution systems, providing essential protection against overloads and short circuits.

Product Information

Standard Information

• Manufacturer: General Electric
• UPC: 783164069037

Technical Specifications

• Approval: UL, CSA
• Frame Type: TEB
• Interrupting Rating: 10 Kiloampere at 240 VAC
• Maximum AC Voltage Rating: 240 V
• Number Of Poles: 3
• Terminal Type: Copper/Aluminum Line and Load Lug
• Size: Four point thirteen inches x Three point thirty-eight inches x Six point thirty-one inches
