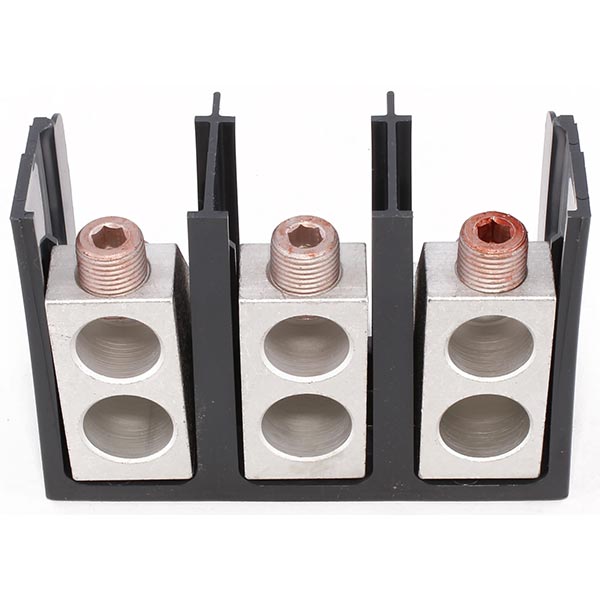

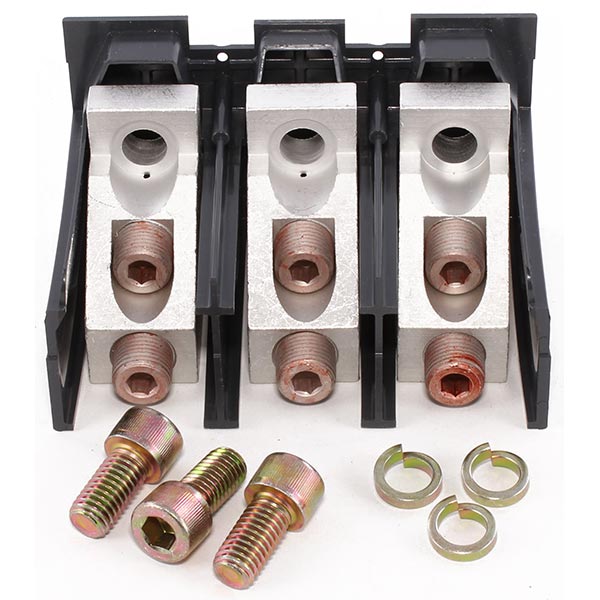

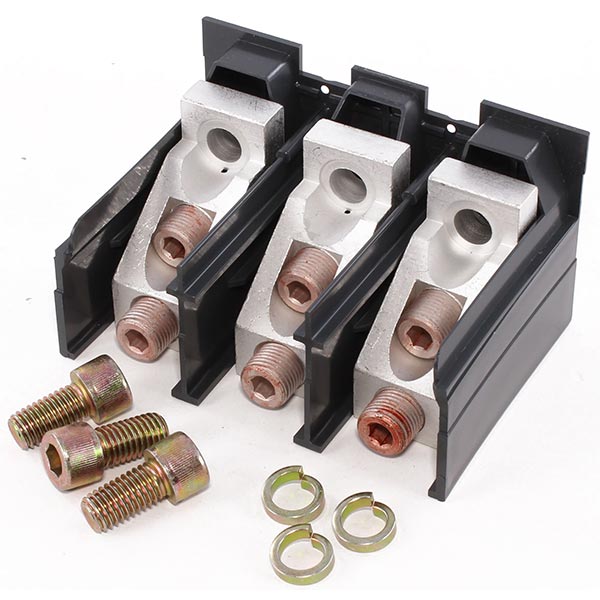

General Electric TCLK365 Circuit Breaker Terminal Lug Kit Power 2/0 AWG to 500 kcmil

Product Description

The General Electric TCLK365 is a circuit breaker terminal lug kit designed to connect conductors effectively. This kit supports two wires per phase and accommodates various wire sizes, making it suitable for multiple applications. It is essential for professionals working with electrical distribution systems.

• Compatible with 3-Pole SGDA/SGHA/SG600 Series Molded Case Circuit Breakers.
• Designed for both copper and aluminum conductors.
• Durable plated extruded aluminum construction.

Product Highlights

The TCLK365 offers a current rating of up to 600 amperes and supports multiple conductor sizes, ensuring reliability in electrical installations.

Product Information

Standard Information

• Manufacturer Name: General Electric
• MPN: TCLK365

Technical Specifications

• Body Material: Plated Extruded Aluminum
• Conductor Material: Copper/Aluminum
• Maximum Breaker Current Rating: 600 Ampere
• Maximum Conductor Size: (1) 600 KCMIL/(2) 500 KCMIL
• Minimum Conductor Size: (1) 8 AWG(Copper)/(2) 2/0 AWG(Aluminum
• Number Of Conductors: 1/2
• Type: Line/Load
• UPC: 783164212372
