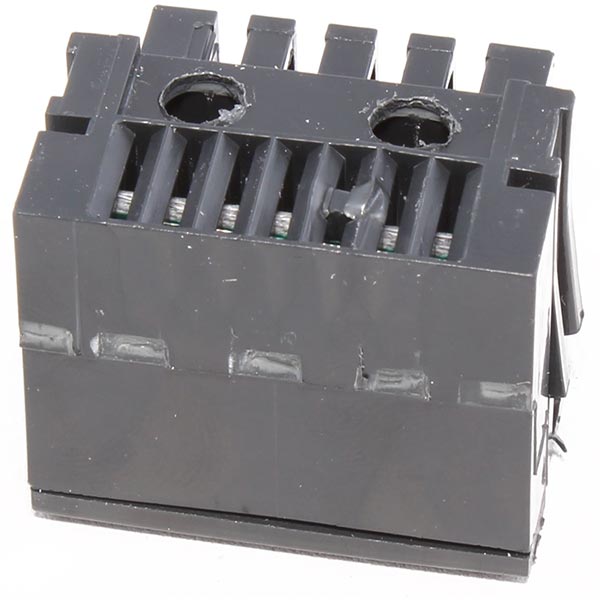

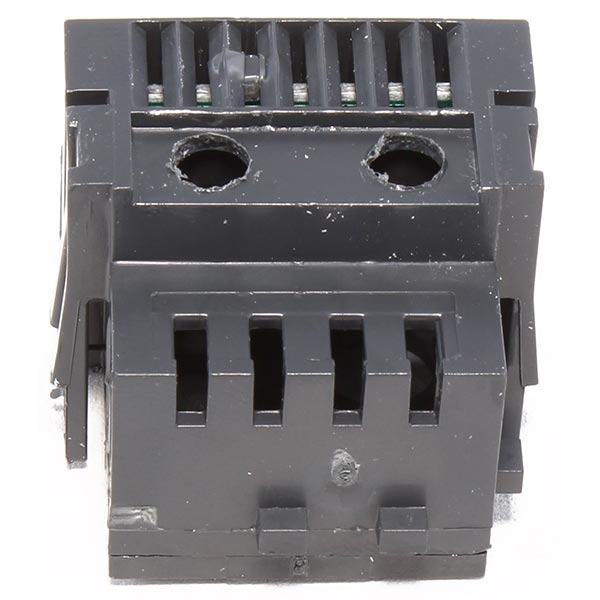

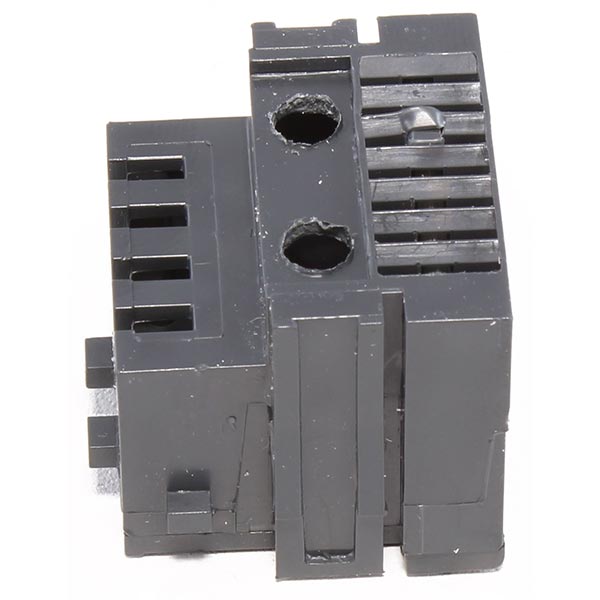

General Electric SRPE150A125 Rating Plug 150 A 125 A Plug Current SE150 Breaker Frame

Product Description

The General Electric SRPE150A125 Rating Plug is designed for use with SE Series Molded Case Circuit Breakers. It features a current rating of one hundred fifty amps and a plug current of one hundred twenty-five amps. The adjustable instantaneous trip range extends from three hundred twenty-eight to one thousand four hundred twenty-six amps.

• Adjustable instantaneous trip range from 328 to 1426 A
• Designed for SE Series Molded Case Circuit Breakers
• Meets various manufacturing standards and approvals

Product Highlights

This rating plug is suitable for electrical distribution and control applications, ensuring reliable operation within its specifications.

Product Information

Standard Information

• Product Name: GE Spectra RMS Rating Plug
• Brand: General Electric

Technical Specifications

• Application: Electrical Distribution and Control Applications
• Breaker Frame Type: SE150
• Country of Origin: UU
• Maximum Breaker Current Rating: 150 A
• Manufacturing Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA File No. LR40350, IEC 947-2, UL File No. E11592
• Package Height: 2.0 in
• Package Length: 4.0 in
• Package Volume: 0.015 CF
• Package Weight: 0.1 lb
• Package Width: 3.25 in
• Plug Current Rating: 125 A
• Series: SR Series
• Suitable For Use With: SE Series Molded Case Circuit Breaker
