General Electric RAVWPT9 Telescopic Wall Plenum (for wall thicknesses 5” to 9”) RAVWPT9

Product Description

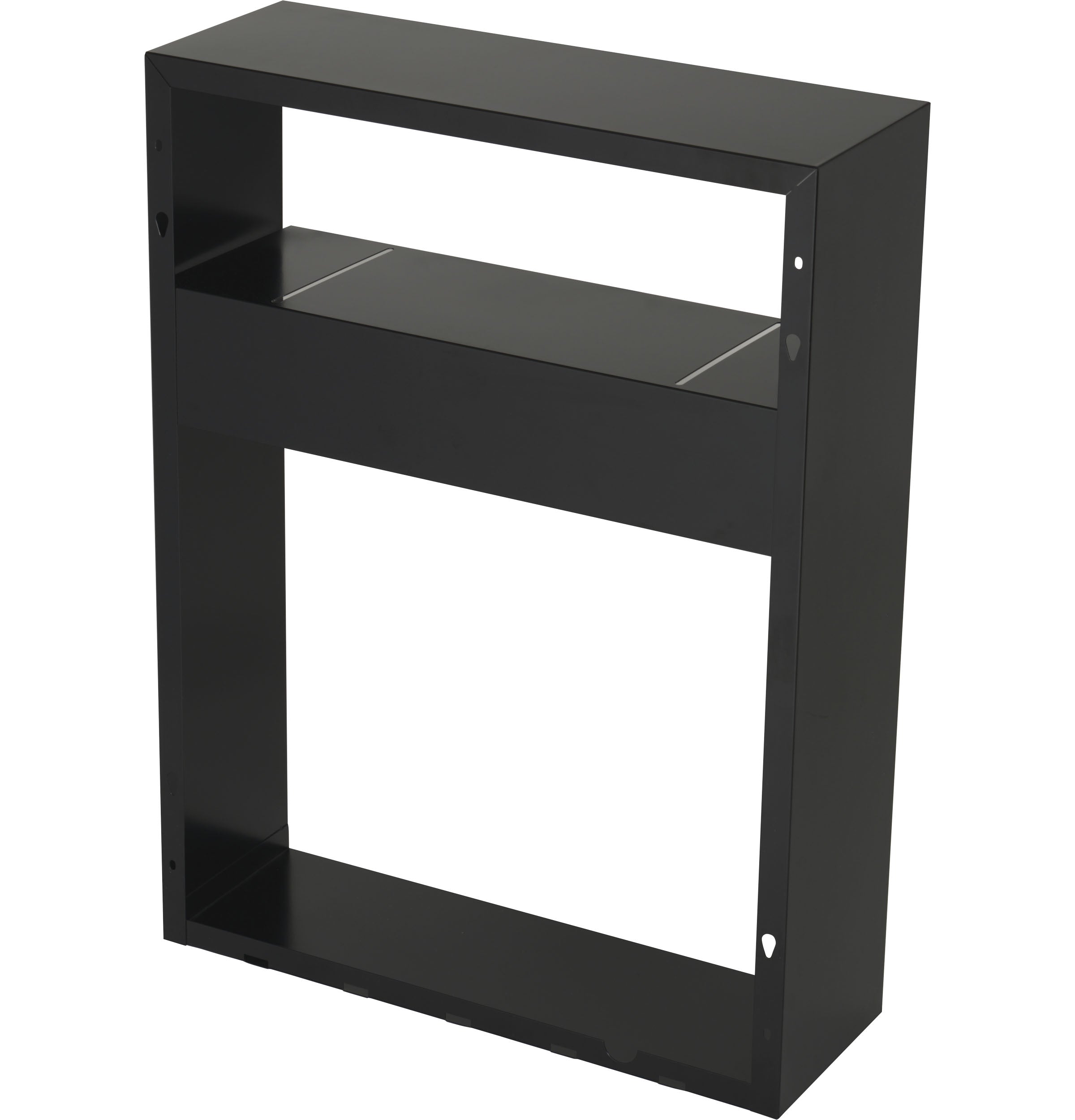

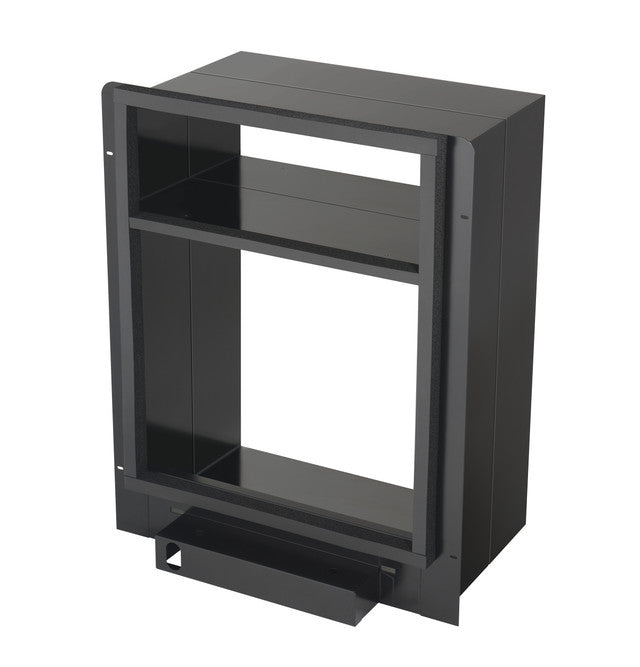

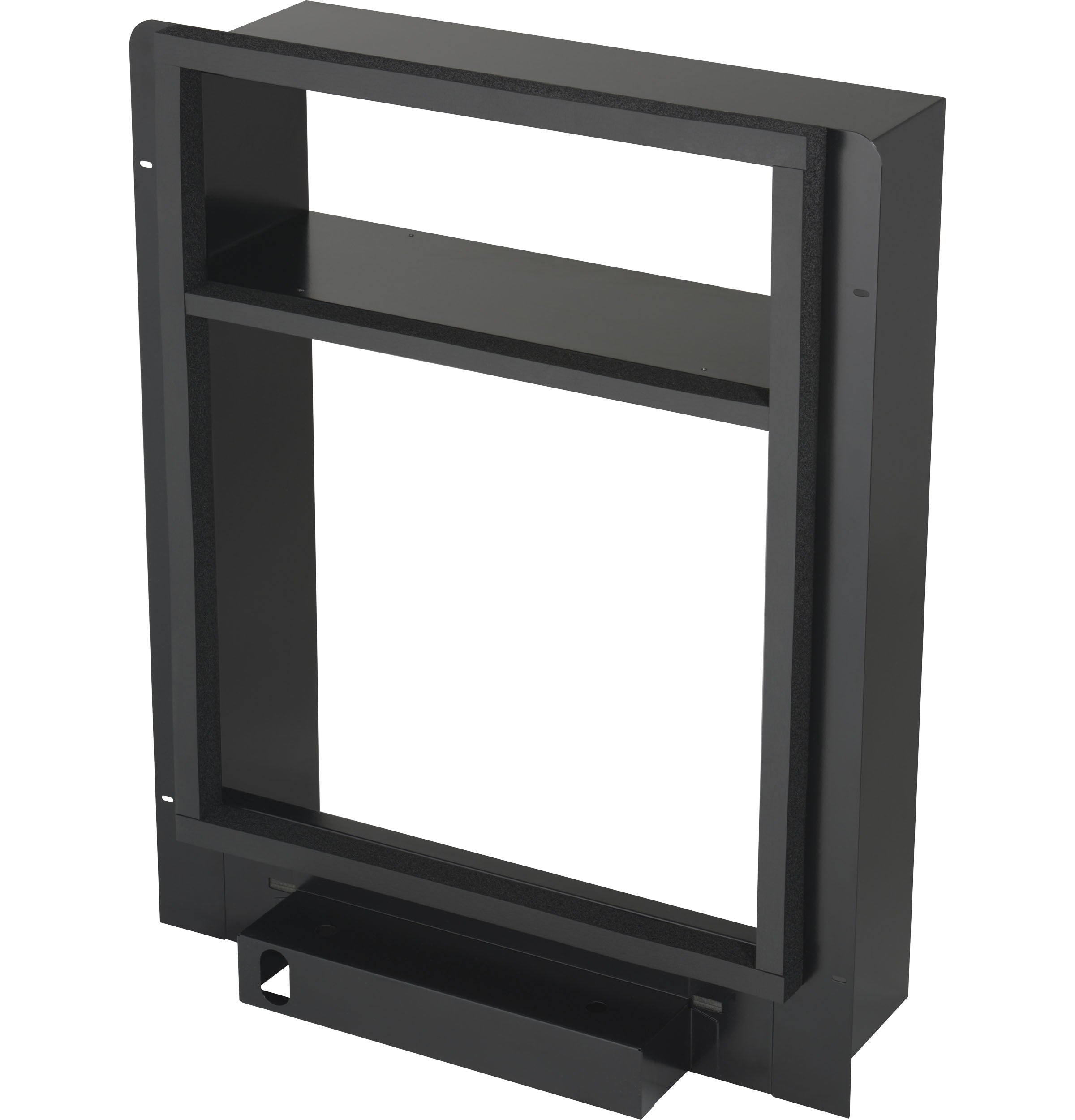

The GENERAL ELECTRIC RAVWPT9 telescopic wall plenum is an integral part of the installation, designed to accommodate wall thicknesses from 5” to 9”. Its two-piece design allows for easy assembly before installation, reducing overall installation time. The plenum is easily installed from the interior of the building, with only caulking needed from the exterior. A 1.25" thick gasket assures a complete seal.

• Telescopic design accommodates a range of different wall thicknesses (5” to 9”).
• Quick Install 2-piece Plenum design allows assembly before installation.
• Easy interior installation minimizes exterior handling.

Product Highlights

The RAVWPT9 telescopic wall plenum ensures a secure and efficient installation for vertical HVAC systems, with an adjustable depth and positive gasket seal.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: RAVWPT9

Technical Specifications

• Color Appearance: Black
• Overall Depth: 9 in
• Overall Height: 32.625 in
• Overall Width: 26.5 in
• Adjustable Depth: 4.75 to 9 in
• Cutout Width (in): 24
• Cutout Depth (in): 32
• UPC: 084691907466
• Manufacturer Description: TELESCOPIC PLENUM, PAINTED GALVANIZED STEEL, 4 1/2 TO 9 INCHES DEEP
• Brand: GE
• Model #: RAVWPT9
