General Electric RAK530D 30A Direct Connect Kit

Product Description

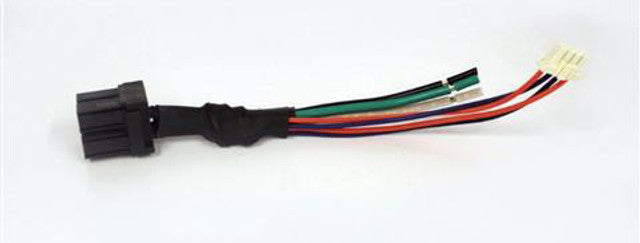

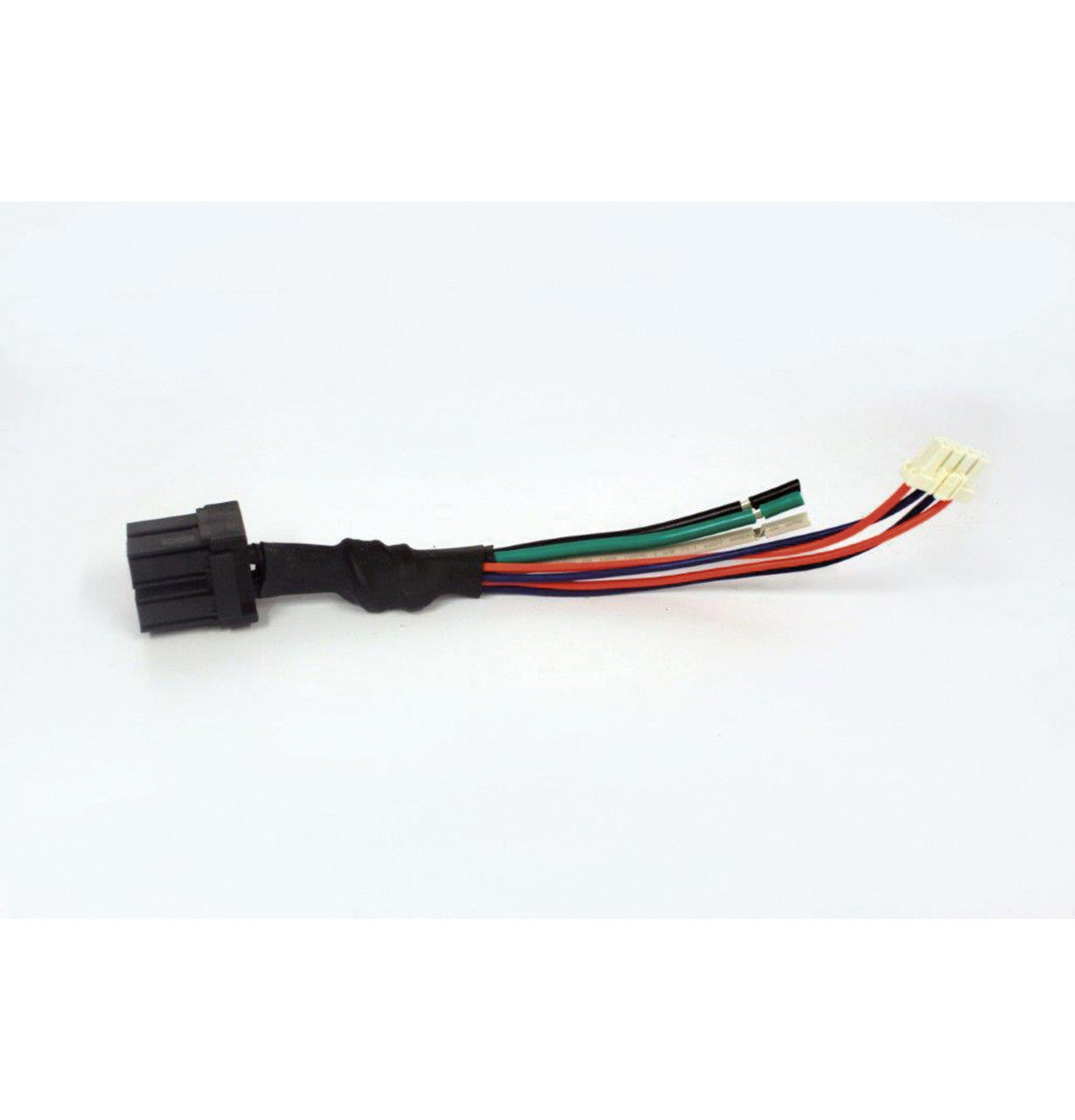

The General Electric RAK530D is a direct connect kit compatible with 265V PTAC and VTAC units. This kit allows for a secure connection to a power source. It features a 4-pin connector that includes three 7-inch, 12-gauge conductor wires and a low-voltage personality plug. It is specifically designed for use with AZ45 and AZ65 PTAC units that require a RAK204E30 sub-base, delivering a 30 Amp connection.

• Includes a 4-pin connector
• Features three 7-inch, 12-gauge conductor wires
• Designed for compatibility with 265V PTAC and VTAC units

Product Highlights

The General Electric RAK530D provides reliable power connectivity for specific PTAC and VTAC units, making it essential for HVAC installations.

Product Information

Standard Information

• Manufacturer Part Number: RAK530D
• Product Type: Power Kit

Technical Specifications

• Maximum Amperage: 30 Amp
• Maximum Voltage: 265V
• Overall Depth: 9.80 inches
• Overall Height: 3 inches
• Overall Width: 6.90 inches
• Certificate: Prop65
