General Electric RAK520D 20 Amp Direct Connect Power Kit

Product Description

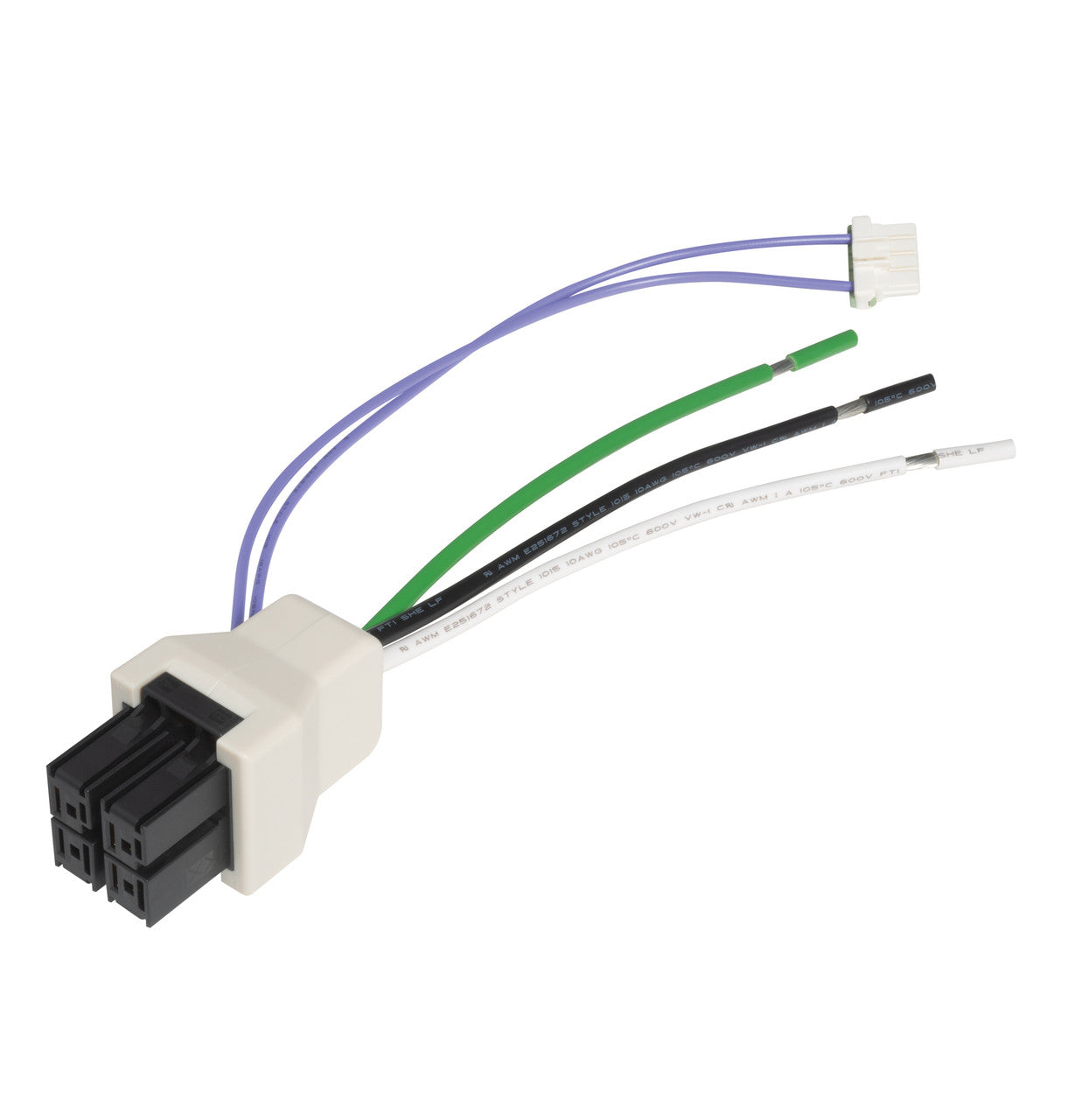

The General Electric RAK520D is a direct connect power supply kit designed to work with specific General Electric PTAC units. This kit includes a 4-pin connector, three 7-inch, 12-gauge conductor wires, and a low-voltage personality plug. It is compatible with AZ45 and AZ65 PTAC units when paired with a RAK204E20 sub-base. The power supply supports a voltage of 265/277V and an output current of twenty amps, with a heater power of 3.4 kW.

• Features a 4-pin connector.
• Includes three 7-inch, 12-gauge wires.
• Contains a low voltage personality plug.

Product Highlights

This power kit is suitable for direct connection to General Electric PTAC units and ensures reliable operation.

Product Information

Standard Information

• Brand: General Electric
• Product Type: Power Kit

Technical Specifications

• Input Voltage: 265/277V
• Output Current: 20 A
• Heater Power: 3.4 kW
• Overall Depth: 9.80 inches
• Overall Height: 3 inches
• Overall Width: 6.90 inches
• Approximate Shipping Weight: 1 lb
• Net Weight: 1 lb
