General Electric pnmd45w Water Softener 45000 Grain

Product Description

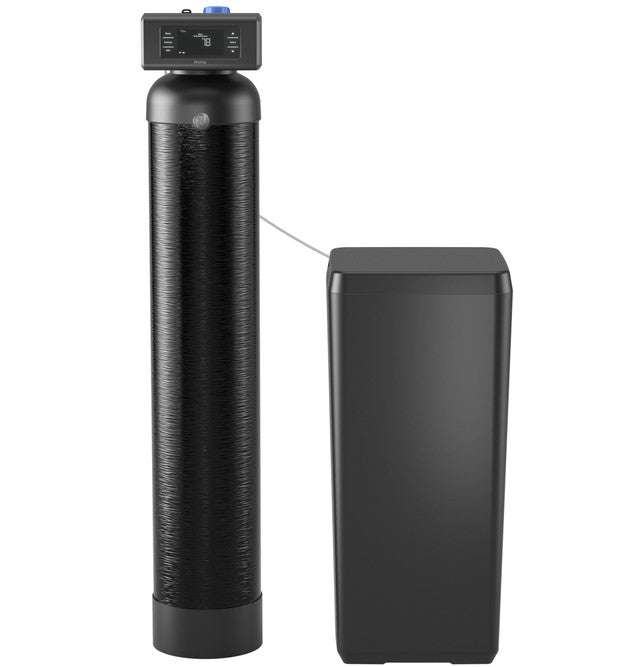

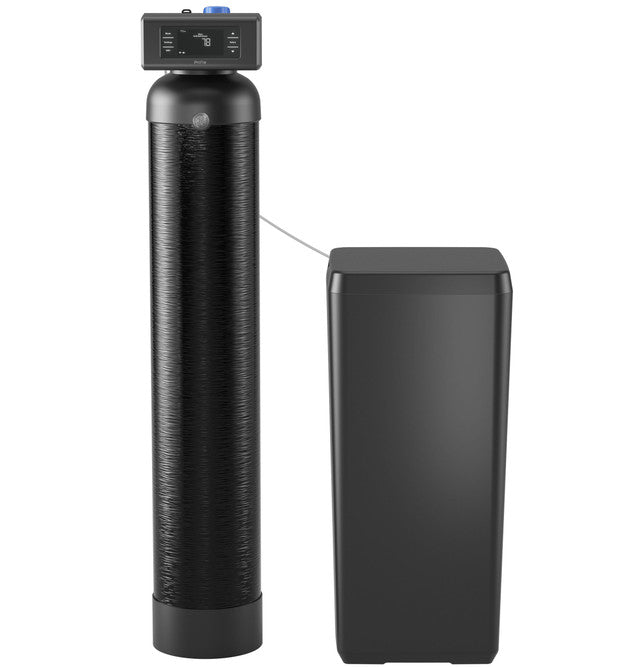

The GENERAL ELECTRIC pnmd45w is a 45,000-grain capacity water softener with an integrated long-life charcoal filter and electronic demand-driven smart valve. It removes hardness up to 165 grains per gallon and reduces clear water iron up to 10 ppm. The unit runs on a 12V electronic control system powered by an included 120V AC adapter and communicates over built-in Wi-Fi for remote monitoring and control. Licensed plumbers install this system in residential or light-commercial applications where water quality, salt efficiency, and remote management are priorities. Salt efficiency is rated at 5,088 grains per pound of salt.

The pnmd45w is suited for indoor or outdoor installation and handles operating water pressures from 20 to 125 psi. The integrated charcoal filtration block — 0.31 cubic feet of media — provides chlorine reduction rated at up to 2,282,000 gallons at 0.50 ppm chlorine concentration, with scaled ratings down to 570,000 gallons at 2.0 ppm. The 1.5 cubic feet of standard mesh resin sits in a 10-inch diameter by 54-inch tall resin tank. The brine tank stores up to 325 pounds of salt and stands 37 inches tall by 17.5 inches wide and deep. Service flow rate is 9.5 gallons per minute at a 15 psi pressure drop.

Key Features

• 45,000-grain softening capacity with demand-driven regeneration cycling between 145 and 246 minutes
• Built-in Wi-Fi enables leak detection alerts, remote water shutoff via external valve, and daily water usage and flow monitoring
• Integrated self-cleaning sediment and charcoal filter eliminates a separate filter housing for chlorine and sediment reduction
• Cap-touch LED control with 4.5-inch screen, low salt reminders, salt saver mode, and vacation mode
• NSF certified; metal bypass valve included; permanent settings memory retained through power outages
• Rated for clear water iron reduction up to 10 ppm and hardness removal up to 165 gpg

Compatibility

Designed as a self-contained residential water softener with integrated filtration. Plumbing connections accept pipe sizes up to 1-1/4 inches. An optional outdoor cover accessory (model ODCOVSFT) and installation kit are available for this unit.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes. Shut off the main water supply and depressurize the line before making any connections. The valve uses 1-inch NPT high-flow fittings; ensure the supply line is compatible before installation. Connect the unit to a grounded 120V AC outlet using the included power adapter, and complete Wi-Fi setup before commissioning to enable leak detection and remote shutoff features.

Technical Specifications

• Capacity: 45,000 grains
• Max Hardness Removal: 165 gpg
• Max Clear Water Iron Reduction: 10 ppm
• Salt Efficiency: 5,088 grains per pound of salt
• Service Flow Rate: 9.5 gallons per minute at 15 psi drop
• Operating Water Pressure: 20 to 125 psi
• Valve Type: 1 inch NPT High Flow
• Plumbing Connection Size: Up to 1-1/4 inches
• Resin Quantity: 1.5 cubic feet, Standard Mesh
• Resin Tank Size: 10 inches diameter x 54 inches height
• Charcoal Volume: 0.31 cubic feet
• Salt Storage Capacity: 325 pounds
• Brine Tank Height: 37 inches
• Brine Tank Width/Depth: 17.5 inches
• Overall Height: 60 inches
• Regeneration Time: 145 to 246 minutes
• Electrical Requirements: 12V, 60 Hz; 120V AC power adapter included
• Control Type: Electronic Cap-Touch, LED Display
• Connectivity: Built-in Wi-Fi
• Installation: Indoor/Outdoor
• Color: Black
• NSF Certified: Yes

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: pnmd45w
