Product Description

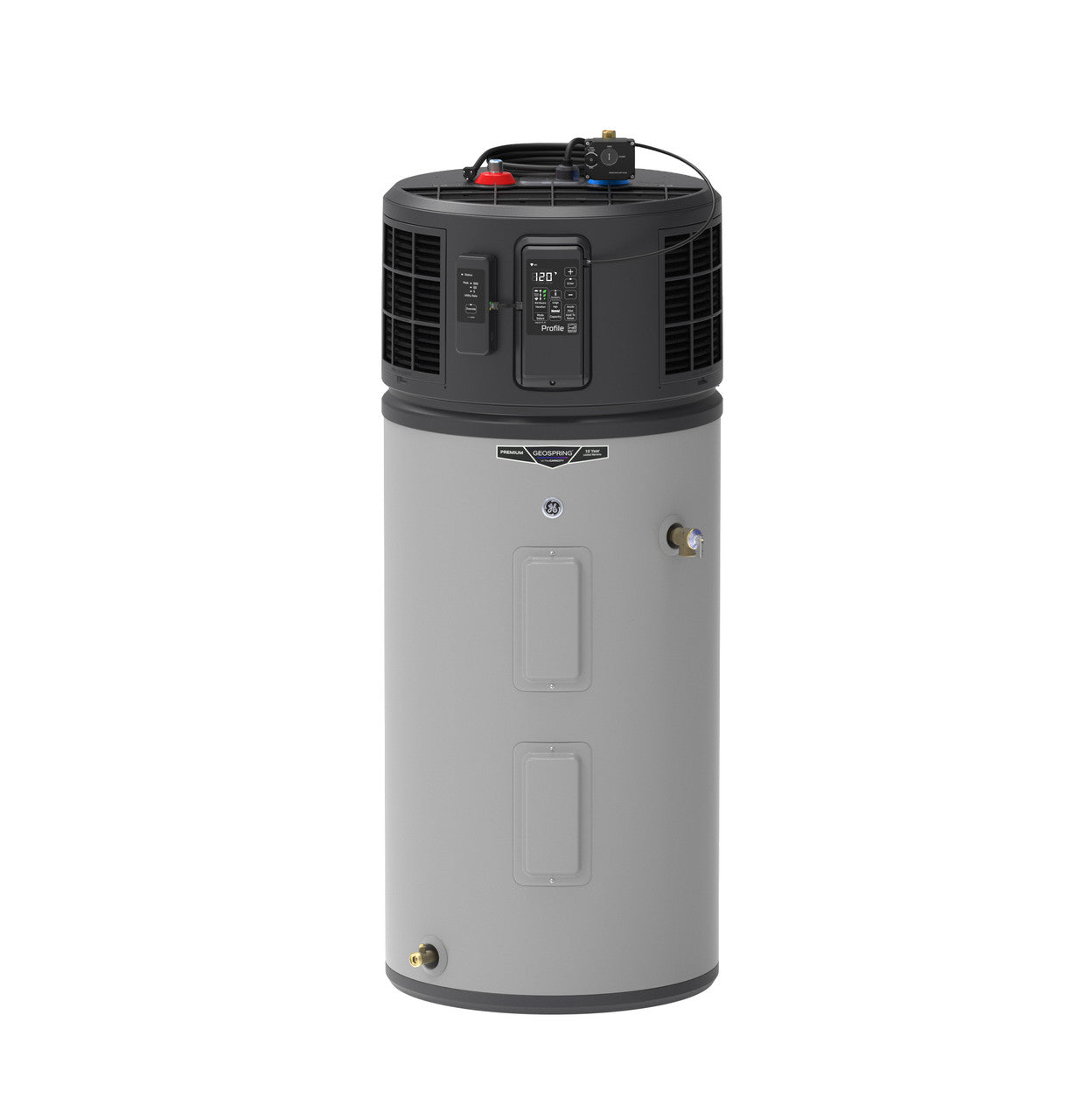

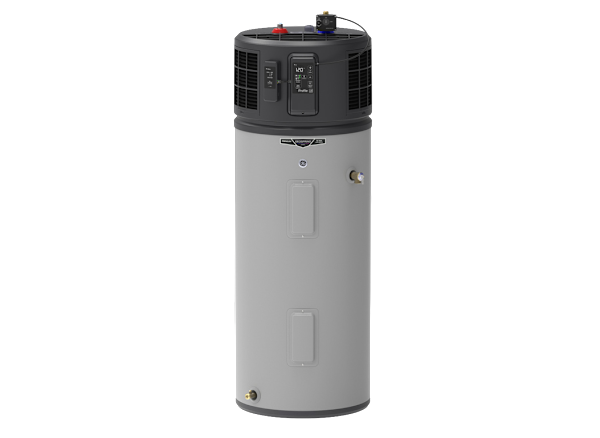

The GENERAL ELECTRIC PH50S10BPY GEOSPRING Smart Hybrid Heat Pump Water Heater is a 50-gallon, 240V electric heater that converts air into water heating power. It features FlexCAPACITY's electronic mixing valve for precise temperature control, delivering up to 60% more hot water. Control and monitor the water heater from anywhere with built-in WiFi via the SmartHQ app. It operates quietly at 41 dBA.
- Up to 4.7x More Energy Efficiency
- Features FlexCAPACITY integrated mixing valve
- Includes Wireless Leak Detection with Automatic Water Shutoff
Product Highlights
This smart hybrid heat pump water heater offers high energy efficiency, smart control, and flexible operation modes for maximum comfort and savings.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: PH50S10BPY
Technical Specifications
-
Color Appearance: Gray
-
Installation: Free-Standing
-
Unit Capacity: 50 Gallons
-
Operating Sound Level: 41 dBA
-
Anode Rod: Sensing
-
Magnesium: yes
-
Communication: yes
-
Connected Capabilities: Amazon Alexa, Google Home
-
Control Type: Electronic
-
LED: Service Diagnostics Integrated
-
Demand Response Capable: Yes
-
Diagnostic Feedback: Filter, Lock, Standard Electric
-
Drain Valve: Left Side
-
Drain Valve Type: Brass
-
Electronic, Integrated Mixing Valve: Yes
-
Fuel Type: Electric
-
Operating Modes: Hybrid (Default Mode), Heat Pump, High Demand/Boost, Standard Electric
-
Product Type: Electric Heat Pump
-

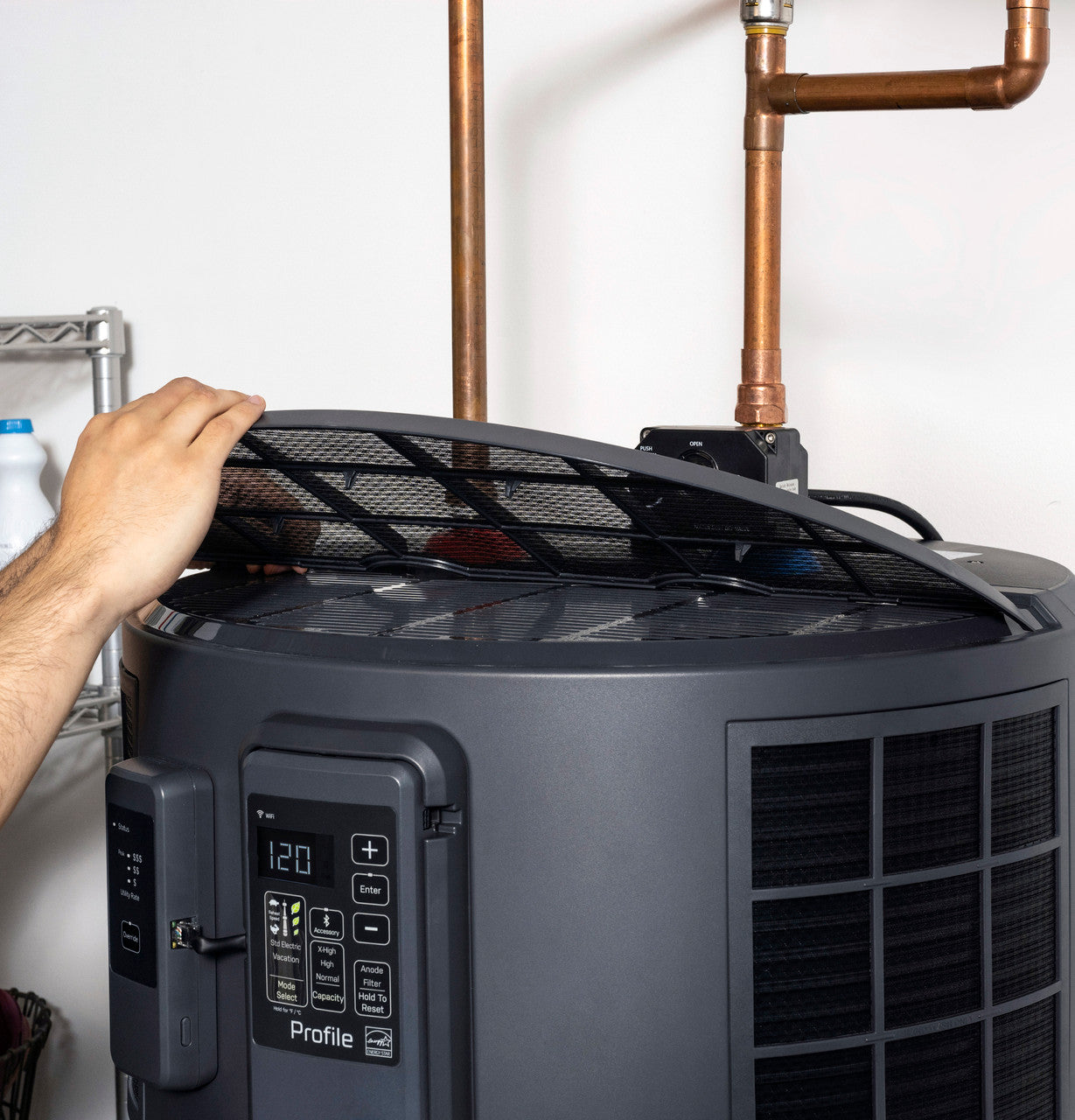

Renewable Air Filter: Top of Unit
-
Sensor: Leak Sensor Included (SPLK10N01A)
-
Temp & Pressure Relief Valve: Right Side
-
Temperature Setting: 100-140° F Range
-
Temperature Setting Factory Default: 120° F
-
UEF: 4.3
-
Water Connection Location: Top
-
WiFi Connect: Built-In
-
Electrical Circuit Required: 240/208VAC 30A, 60Hz
-
Electrical Consumption - Lower Element: 3600W
-
Electrical Consumption - Upper Element: 5500W
-
Energy Consumption (kWh/year): 1154
-
First Hour Rate (FHR): 77 Gallons
-
Hertz: 60
-
Operating Water Pressure: 20-125 PSI (30-80 PSI recommended)
-
Voltage (MAX): 240 V
-
Volts/Amps: 240V; 60Hz
-
Connection Sizes - Hot Water Outlet (MNPT): 3/4"
-
Connection Sizes - Water Inlet (MNPT): 3/4"
-
Net Weight: 179 lb
-

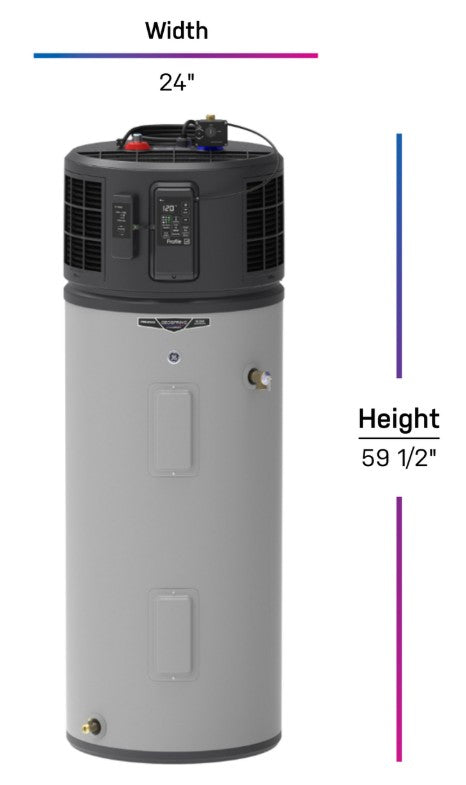

Overall Depth: 24 in
-
Overall Height: 68.25 in
-
Overall Width: 24 in
-
Product Diameter: 24 in
-
Product Height (to top of unit): 66.5 in
-
Product Height (to top of water inlet/outlet connections): 68.25 in
-
Hybrid mode: Yes
-
Top connections: Yes
-
Side connections: No
-
WiFi: Yes
-
Claimed UEF: 4.3
-
Rated Nominal Volume (Gallons): 50
-
DOE Rated Storage Volume (Gallons): 50
-
Energy Star: Yes
-
Connectivity: Built-In WiFi
-
Overall Height (in.): 68.25
-
Height (Floor To Top of Heater - in.): 66.5
-
Jacket Diameter (in.): 24
-
Element Watts: 5500W (Upper); 3600W (Lower)
-
First Hour Delivery Rating (Gal.): 77
-
Uniform Energy Factor (UEF): 4.3
-
Water Connection Size (in.): 3/4" NPT
-
Voltage: 240V
-
Circuit Breaker Size (Amps): 30
