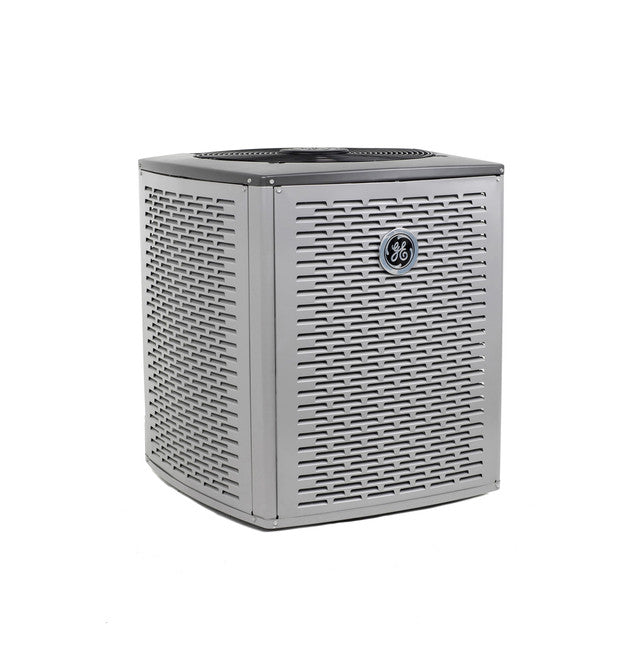

General Electric ns23a24ma4 Inverter Air Conditioner 2 Ton

Product Description

The GENERAL ELECTRIC ns23a24ma4 is a 2-ton, 23 SEER inverter-driven central air conditioner designed for residential cooling applications. The variable-speed inverter compressor modulates output to match the actual cooling load, reducing energy consumption and short-cycling compared to single-stage units. Aluminum alloy tube and fin coils provide corrosion resistance and efficient heat transfer. The unit ships at 157 pounds and carries a gray cabinet finish suited for standard outdoor condenser placement.

This condenser is intended for residential split-system installations where high-efficiency cooling is required. The inverter compressor makes it well suited for climates with wide temperature swings, where part-load efficiency gains are most significant. It is sized for light-to-medium residential loads and is designed with accessible service points to reduce labor time during routine maintenance or diagnostics.

Key Features

• Inverter compressor for variable-capacity operation and improved part-load efficiency
• 23 SEER efficiency rating reduces operating costs versus standard-efficiency units
• Aluminum alloy tube and fin coil construction for durability and heat transfer performance
• Designed for easy servicing with accessible internal components
• Limited 10-year entire appliance warranty with product registration
• Gray cabinet finish for standard residential outdoor installation

Compatibility

Designed as an OEM inverter split-system condenser for residential cooling applications. Consult system design documentation and matched indoor coil specifications to confirm compatible air handler or coil pairings before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and EPA Section 608 refrigerant handling requirements. Disconnect and lock out all electrical power before servicing the unit. Ensure the mounting pad or base is level and provides adequate clearance on all sides per manufacturer specifications. Do not operate the unit without verifying refrigerant charge and system static pressure with calibrated gauges.

Technical Specifications

• Product Type: Air Conditioner
• Compressor Type: Inverter
• Tonnage: 2 Ton
• SEER: 23
• Overall Width: 37.8 inches
• Overall Height: 37.5 inches
• Overall Depth: 35.8 inches
• Net Weight: 147 pounds
• Approximate Shipping Weight: 157 pounds
• Color: Gray
• Parts Warranty: Limited 5-year entire appliance; Limited 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: ns23a24ma4
