General Electric ns17a24sa4 Air Conditioner 2 Ton 17 Seer

Product Description

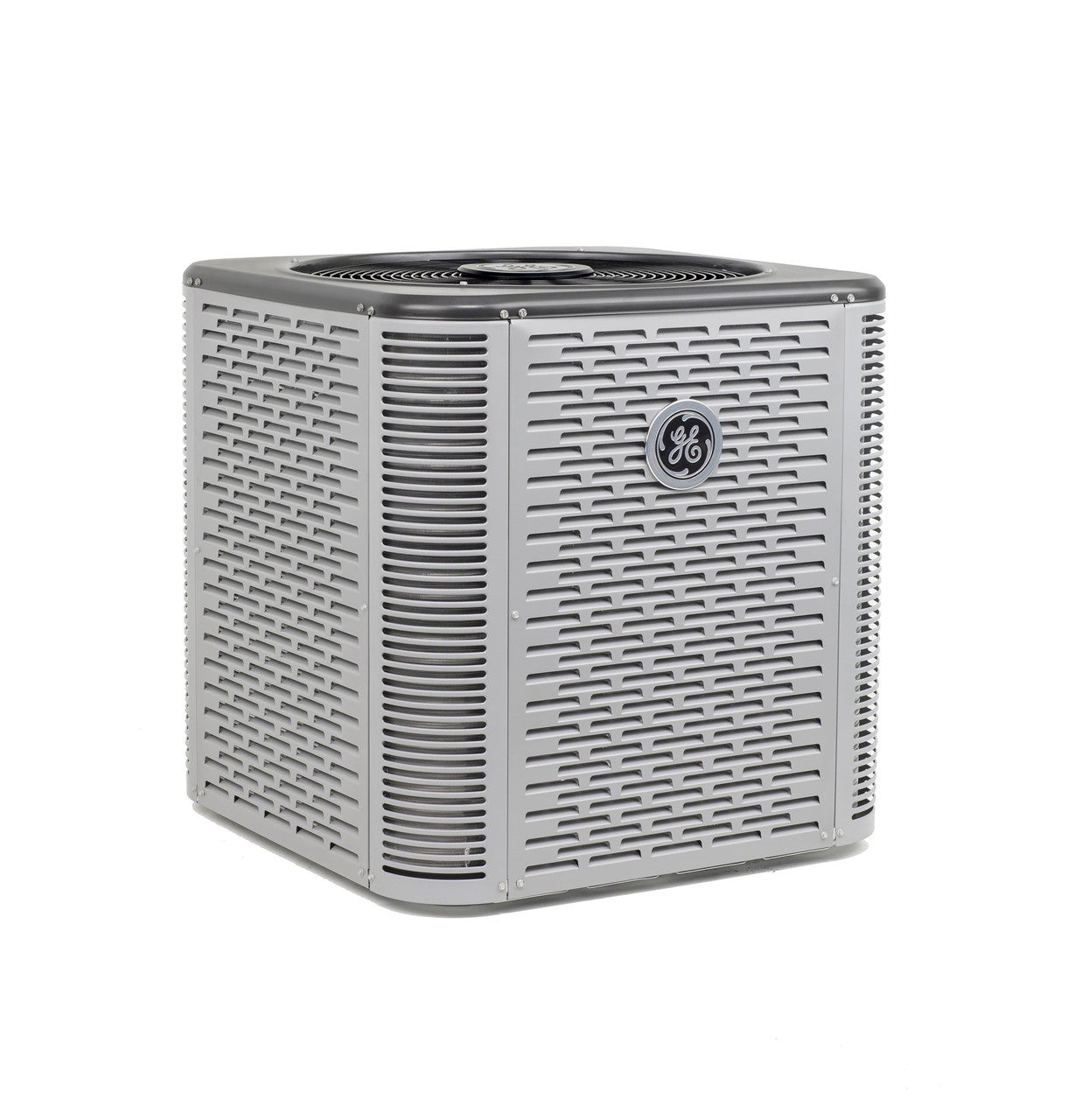

The GENERAL ELECTRIC ns17a24sa4 is a 2-ton, 17 SEER single-stage residential air conditioner built for reliable outdoor installation. The unit delivers consistent cooling capacity through aluminum alloy tube and fin coils, which resist corrosion and support straightforward field servicing. At 142 pounds net weight and a footprint of 28.3 inches wide by 28.3 inches deep by 37.3 inches tall, the cabinet is sized for standard residential pad or bracket installations. A removable wire fan guard allows quick access to the fan assembly without major disassembly. Licensed HVAC technicians are the intended installers for this equipment.

This condensing unit is suited for residential cooling applications where efficiency and long-term durability are priorities. The single-stage compressor operates at one fixed capacity, making it a straightforward replacement or new-installation option for split-system setups. The gray cabinet finish blends with standard residential exteriors. The aluminum alloy coil construction reduces the likelihood of formicary corrosion common in copper-only designs and simplifies coil cleaning during routine maintenance visits.

Key Features

• 17 SEER efficiency rating for residential split-system cooling
• 2-ton cooling capacity with single-stage compressor operation
• Aluminum alloy tube and fin coils for durability and easy servicing
• Removable wire fan guard for quick fan access in the field
• Limited 10-year parts warranty on entire appliance with registration; limited 5-year without
• Compact cabinet: 28.3 inches wide, 28.3 inches deep, 37.3 inches tall

Compatibility

Designed as an OEM-style single-stage condensing unit for residential split-system air conditioning applications. Pair with a compatible air handler or furnace coil matched to 2-ton capacity and confirmed system SEER rating.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Disconnect and lock out all electrical power to the system before beginning any wiring or refrigerant work. Follow EPA Section 608 requirements for refrigerant handling. Confirm that the matched indoor coil and air handler are rated for this condensing unit before startup.

Technical Specifications

• Cooling Capacity: 2 Ton
• SEER: 17
• Compressor Type: Single-Stage
• Overall Width: 28.3 inches
• Overall Depth: 28.3 inches
• Overall Height: 37.3 inches
• Net Weight: 142 pounds
• Shipping Weight: 152 pounds
• Color: Gray
• Parts Warranty: Limited 5-year entire appliance; limited 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: ns17a24sa4
