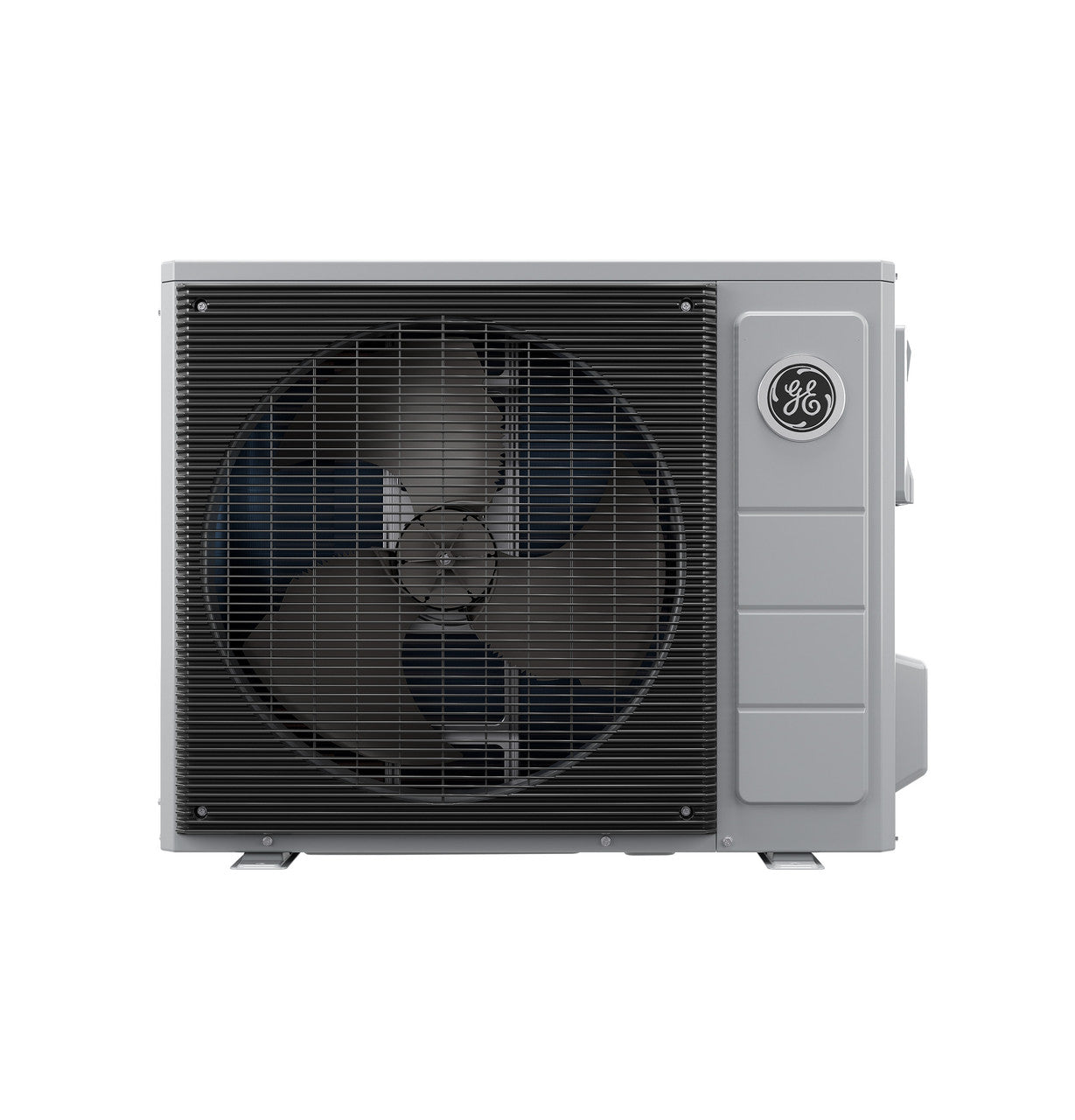

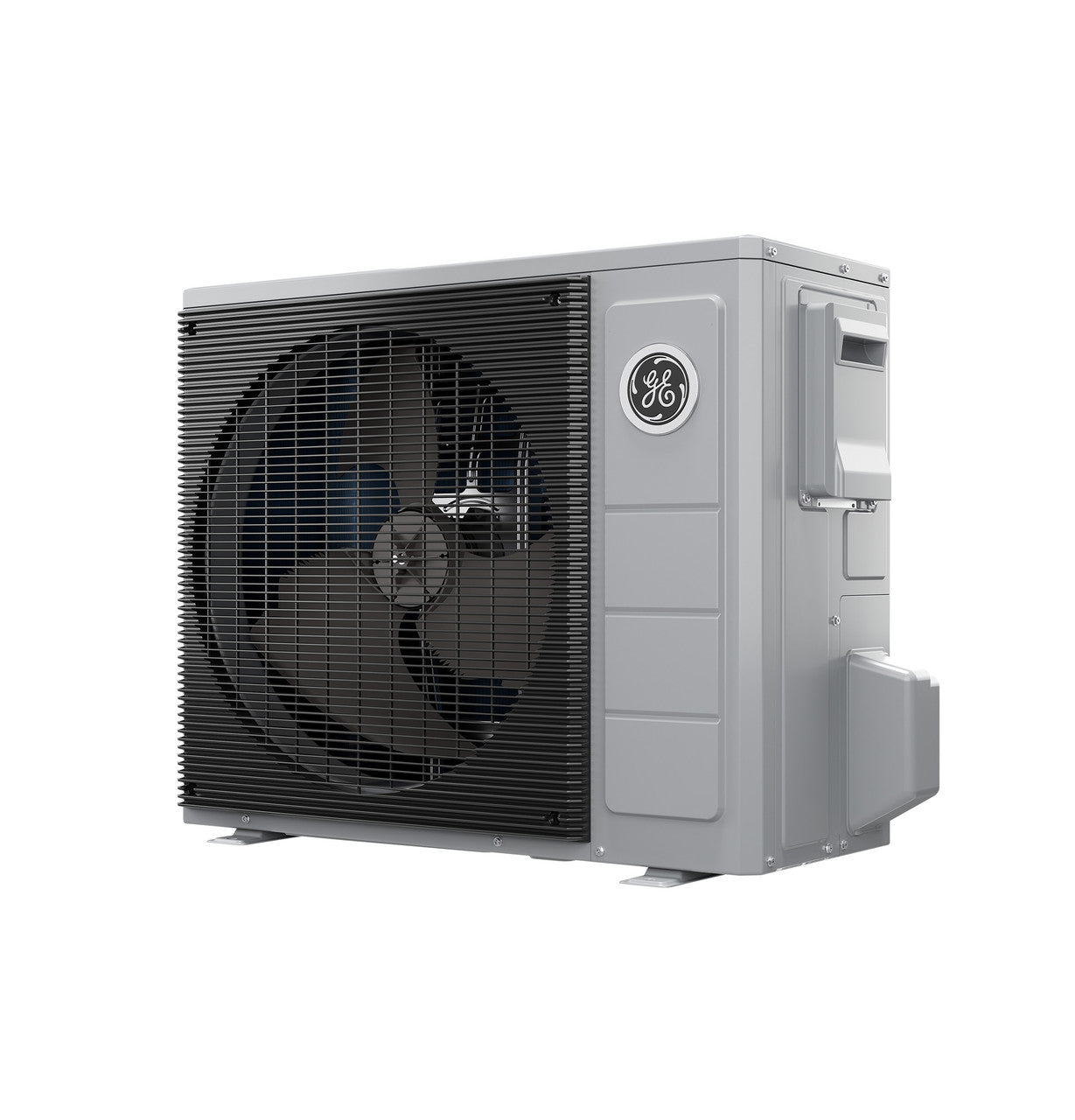

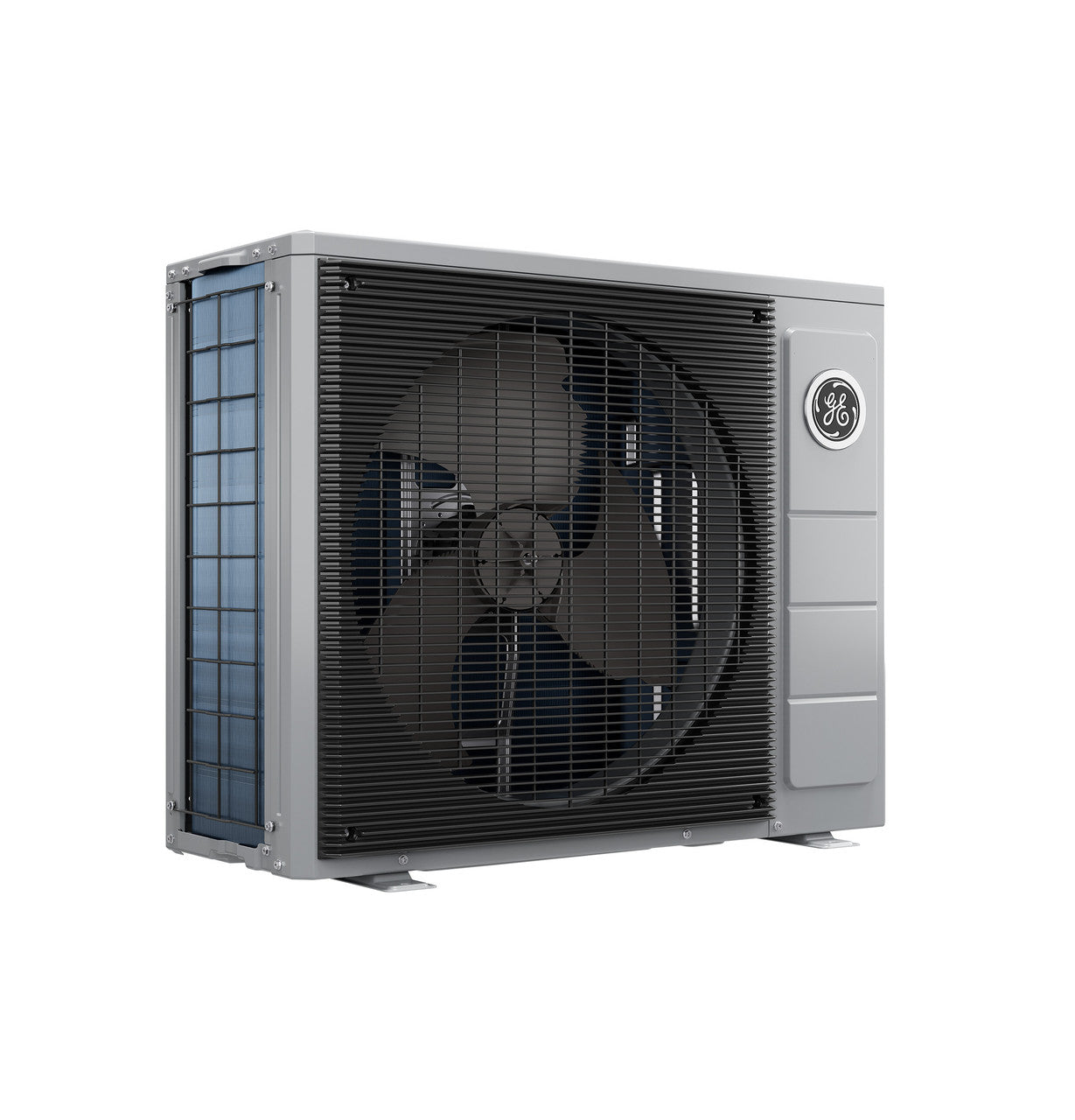

General Electric NS15H36HA5 3-Ton 15 SEER2 Connect Series Side-Discharge Inverter Heat Pump

Product Description

The GENERAL ELECTRIC NS15H36HA5 is a 3-ton heat pump from the Connect Series. This outdoor unit features R454B refrigerant, delivering high efficiency while meeting low-GWP standards. Optimized for tight spaces, it requires minimal installation clearances and includes external service valves for easy connections. It is compatible with standard 24V thermostats.

• R454B Refrigerant
• Quiet operation as low as 57 dB
• Optimized for tight spaces with minimal installation clearances

Product Highlights

The GENERAL ELECTRIC NS15H36HA5 heat pump provides efficient cooling and heating with easy installation and quiet operation.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: NS15H36HA5

Technical Specifications

• Compressor Type: Inverter
• EER: 9.5 (when paired with NAM36V1TA5S)
• HSPF Rating: 8.5/6.8 (when paired with NAM36V1TA5S)
• Product Type: Heat Pump
• Refrigerant Type: R454B
• SEER: 16 (when paired with NAM36V1TA5S)
• SEER2: 16
• Series: Connect
• Style: Heat Pump
• Tonnage: 3
• Unit Type: Outdoor
• Cooling Rated Capacity BTU/Hr: 35400
• Nominal Capacity: 3 ton
• Heating Capacity: 36 Kbtu/hr
• Voltage Rating: 208-240 VAC
• Phase: 1 ph
• Brand: GE Appliances
• Manufacturer: General Electric
• Manufacturer Part Number: NS15H36HA5
