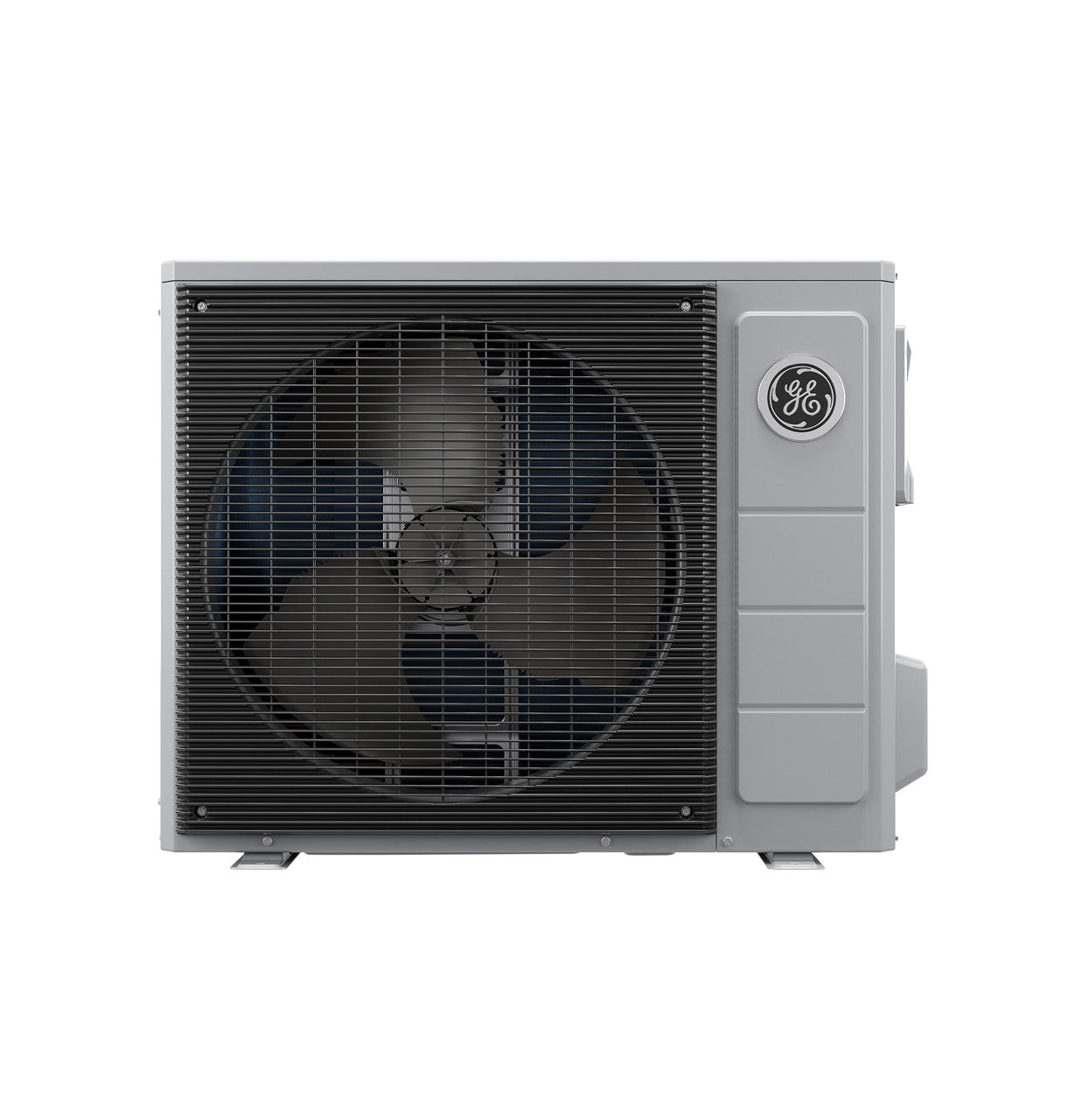

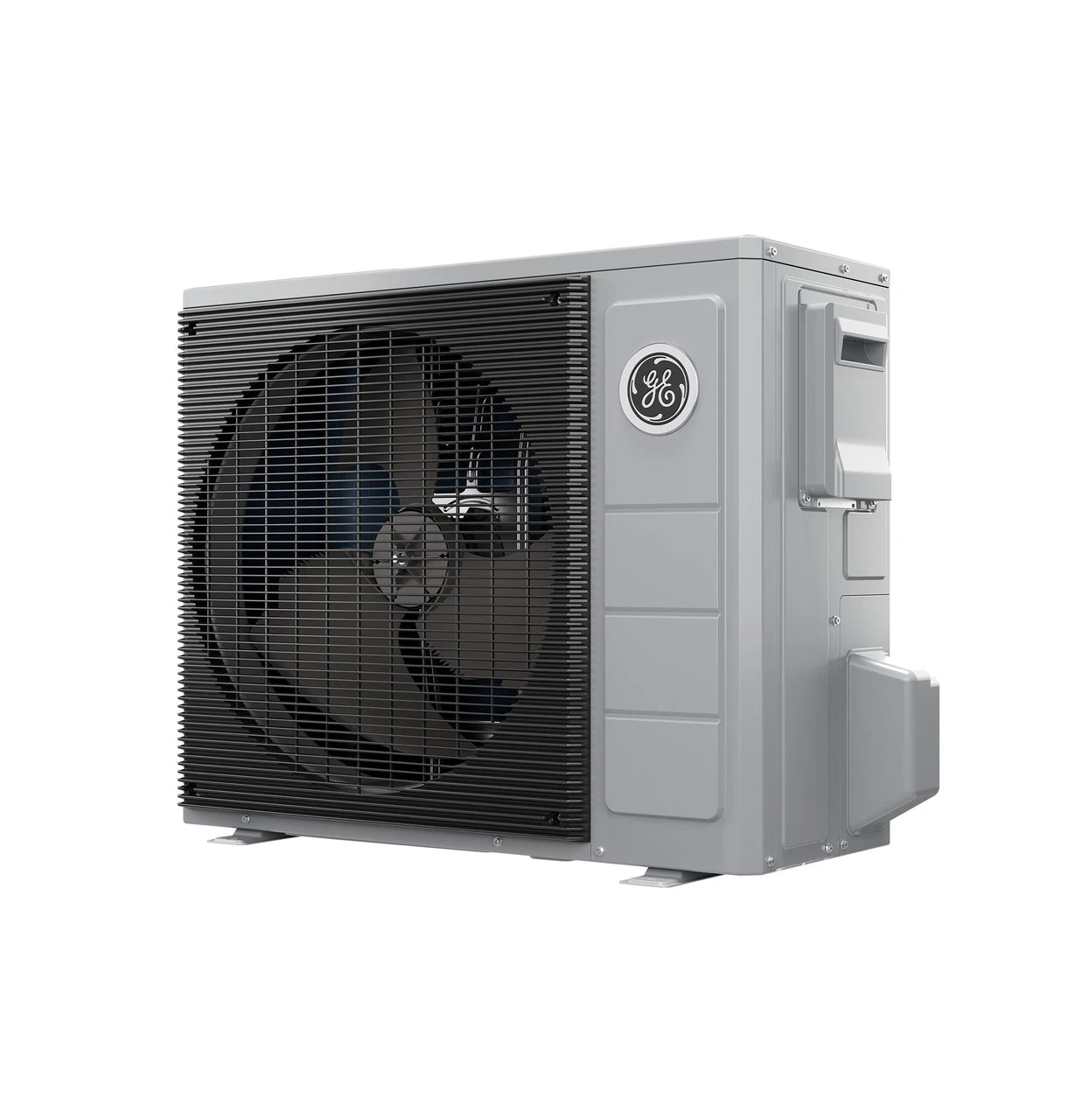

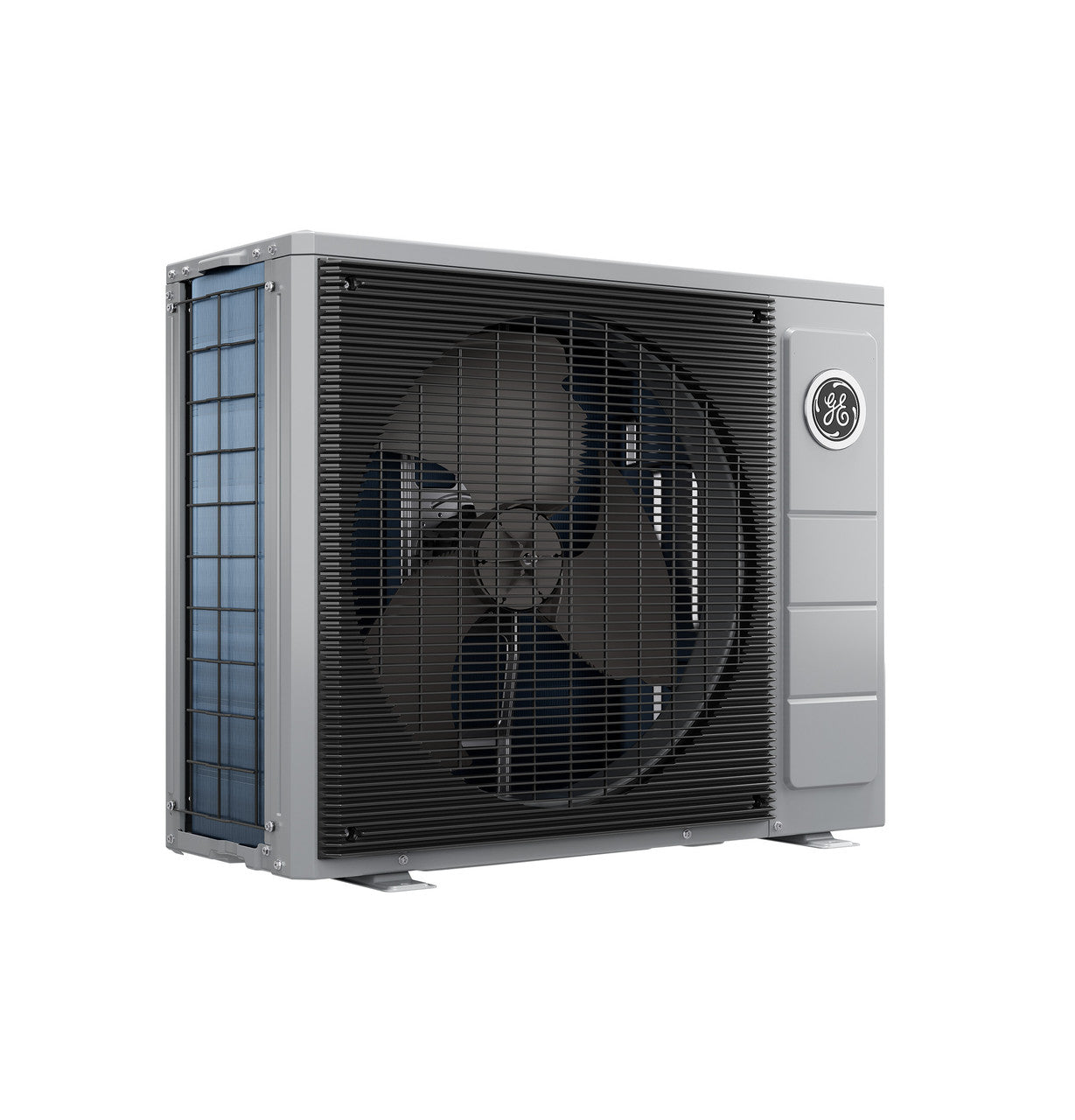

General Electric NS15H30HA5 Connect Series Heat Pump 2.5-Ton

Product Description

The GENERAL ELECTRIC NS15H30HA5 Connect Series heat pump delivers high efficiency while meeting low-GWP standards. With quiet operation, homeowners can rest easy knowing their comfort won’t be compromised by disruptive noise. Optimized for tight spaces, the Connect Series heat pump clearance requires just 4 in the back and 14 in the front.

• R454B Refrigerant
• Quiet Operation
• Industry-Leading Install Clearances

Product Highlights

This heat pump features external service valves, factory coil guards, and a push & lock thermostat terminal block. Integrated handles make moving and positioning the unit easier during installation.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: NS15H30HA5

Technical Specifications

• Compressor Type: Inverter
• EER: 11 (when paired with NAM30V1TA5S)
• HSPF Rating: 8.8/6.8 (when paired with NAM30V1TA5S)
• Product Type: Heat Pump
• Refrigerant Type: R454B
• SEER: 16 (when paired with NAM30V1TA5S)
• SEER2: 16
• Series: Connect
• Style: Heat Pump
• Tonnage: 2.5
• Unit Type: Outdoor
• Cooling Rated Capacity BTU/Hr: 30000
• Cooling Capacity (Btu/h): 30000
• Heating Capacity at 47 F (Btu/h): 30000
• Heating Capacity at 17 F (Btu/h): 23400
• Heating Capacity at 5 F (Btu/h): 19000
• COP at 5 F: 1.8
• Compressor Staging: Continuously variable
• Refrigerant with GWP: R-454B (GWP:470 | Lower GWP)
• Connected Capable: No
• Markets: United States, Canada
• Nominal Capacity: 2.5 ton
• Heating Capacity: 30 Kbtu/hr
• Voltage Rating: 208-240 VAC
• Phase: 1 ph
• Brand: GE Appliances
• Manufacturer: General Electric
• Manufacturer Part Number: NS15H30HA5
