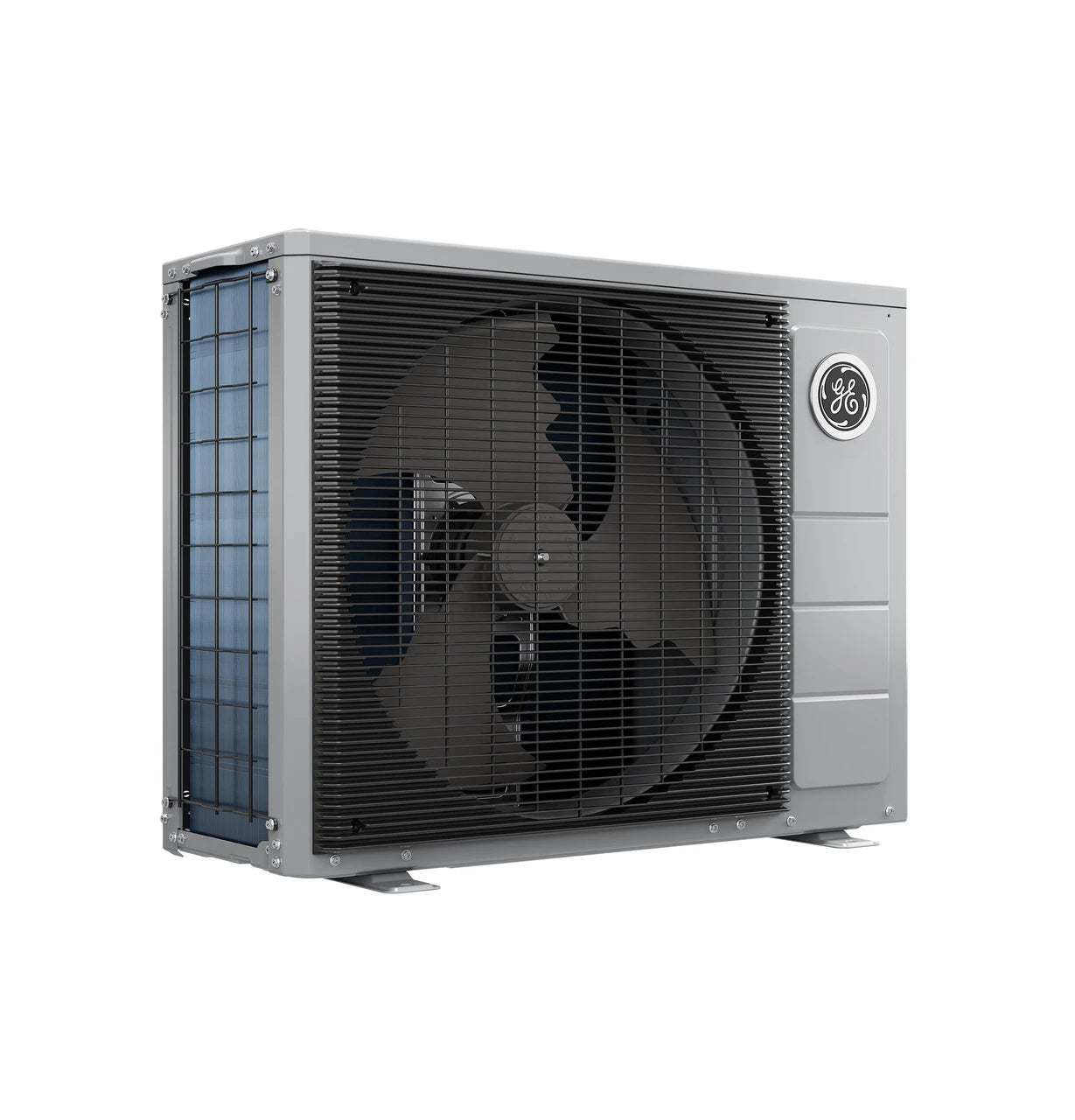

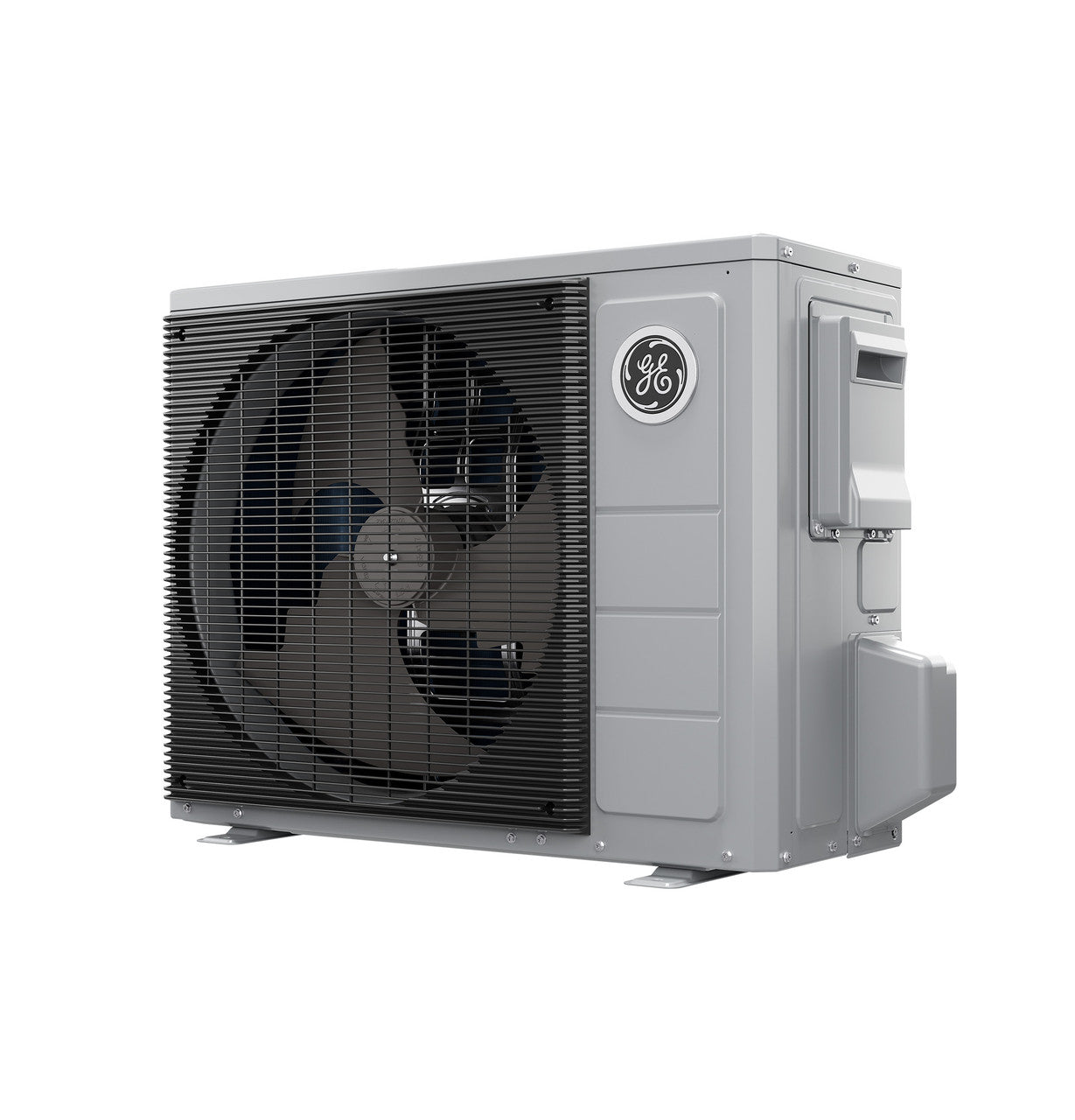

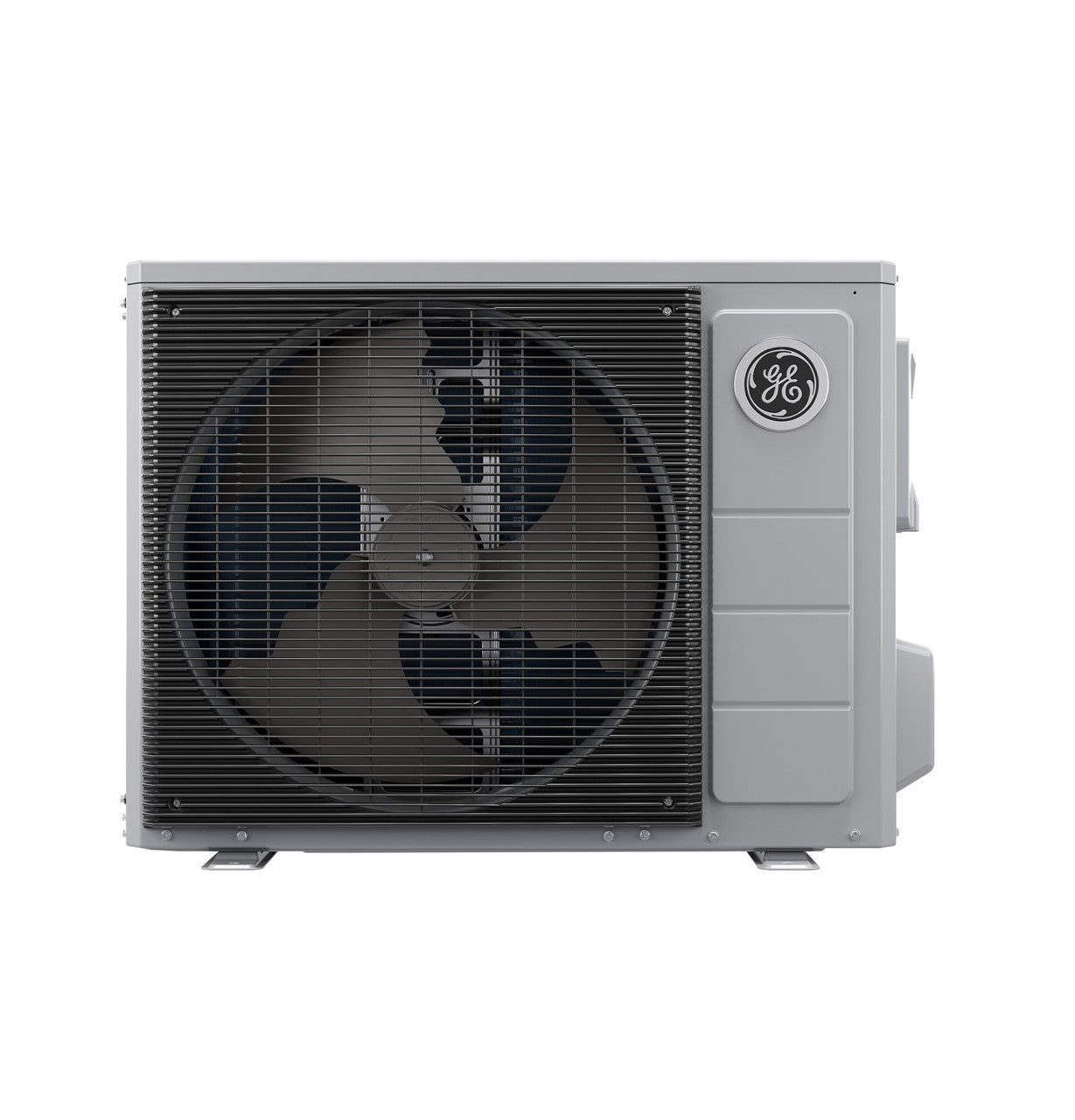

General Electric NS15H24HA5 Heat Pump 2-Ton

Product Description

The GENERAL ELECTRIC NS15H24HA5 delivers high efficiency while meeting today’s low-GWP standards. Optimized for tight spaces, the Connect Series heat pump clearance requires just 4” in the back and 14” in the front. All units come with external service valves and factory-installed coil guards. Works with standard 24V thermostats.

• R454B REFRIGERANT
• SPACE SAVING SOLUTION
• INDUSTRY-LEADING INSTALL CLEARANCES

Product Highlights

This heat pump features external service valves, factory coil guards, and a push & lock thermostat terminal block. Integrated handles and a single fan design make installation easier.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: NS15H24HA5

Technical Specifications

• Color Appearance: Gray
• Compressor Type: Inverter
• EER: 9 (when paired with NAM24V1TA5S)
• HSPF Rating: 8.5/6.8 (when paired with NAM24V1TA5S)
• Product Type: Heat Pump
• Refrigerant Type: R454B
• SEER: 16 (when paired with NAM24V1TA5S)
• SEER2: 16
• Series: Connect
• Style: Heat Pump
• Tonnage: 2
• Unit Type: Outdoor
• Cooling Rated Capacity BTU/Hr: 24000
• Overall Depth: 22 in
• Overall Height: 45.5 in
• Overall Width: 18.5 in
• Net Weight: 112 lb
• Nominal Capacity: 2 ton
• Heating Capacity: 24 Kbtu/hr
• Voltage Rating: 208-240 VAC
• Phase: 1 ph
• Brand: GE Appliances
• Manufacturer: General Electric
• Manufacturer Part Number: NS15H24HA5
• Heating Capacity at 47 F (Btu/h): 24000
• Heating Capacity at 17 F (Btu/h): 18600
• Heating Capacity at 5 F (Btu/h): 18000
• COP at 5 F: 1.8
• Controls Verification Procedure (CVP) Test: DOE Federal CVP Test
• Compressor Staging: Continuously variable
• Refrigerant with GWP: R-454B (GWP:470 | Lower GWP)
• Connected Capable: No
• Markets: United States, Canada
• AHRI Reference Number: 218078915
• EER2 (Btu/Wh): 9
• HSPF2 (Btu/Wh): 8.5
• Cooling Capacity (Btu/h): 24000
• Cold Climate: Yes
• Meets Peak Cooling Requirements: No
• Meets ENERGY STAR Most Efficient 2025 Criteria: No
