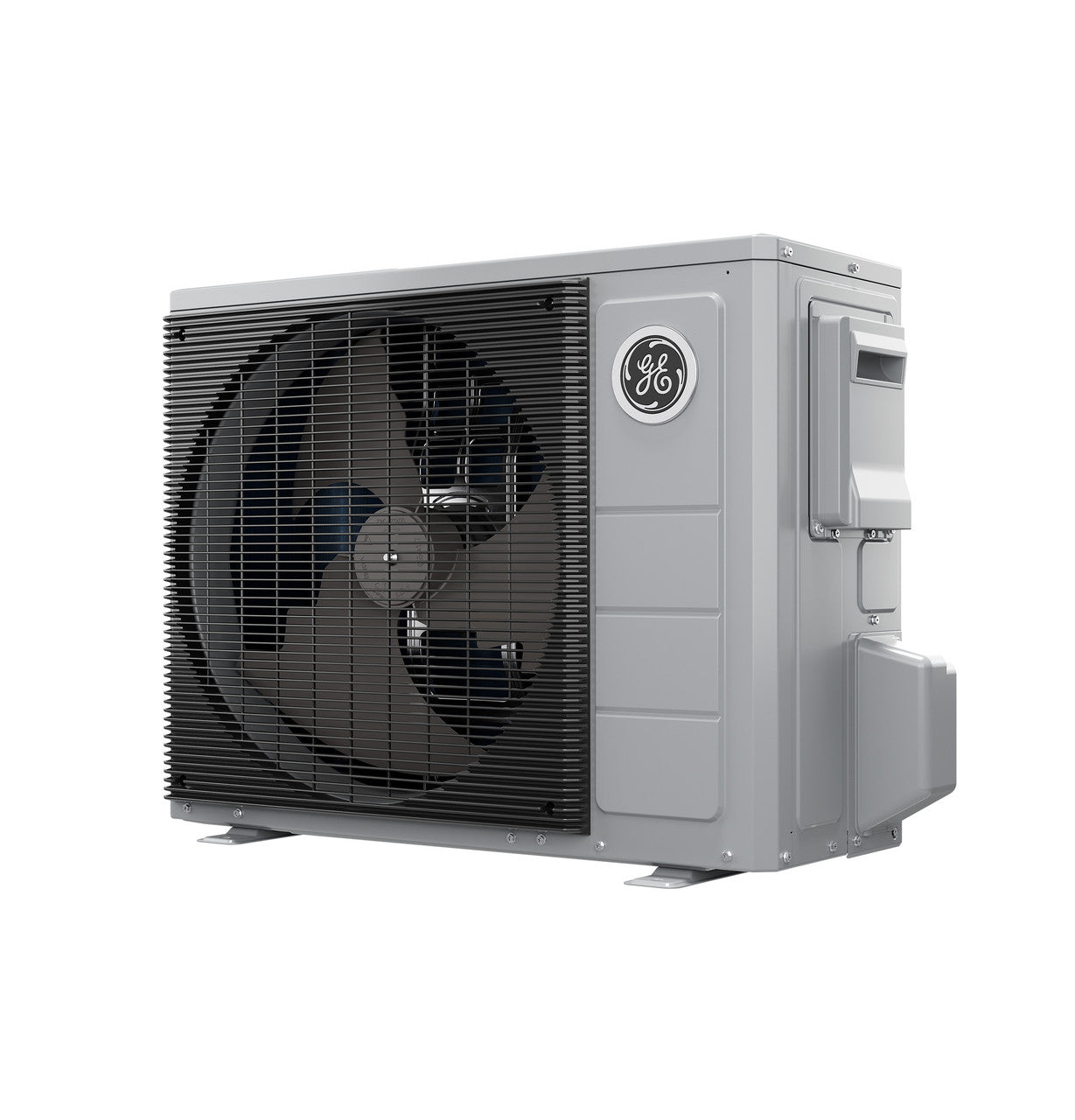

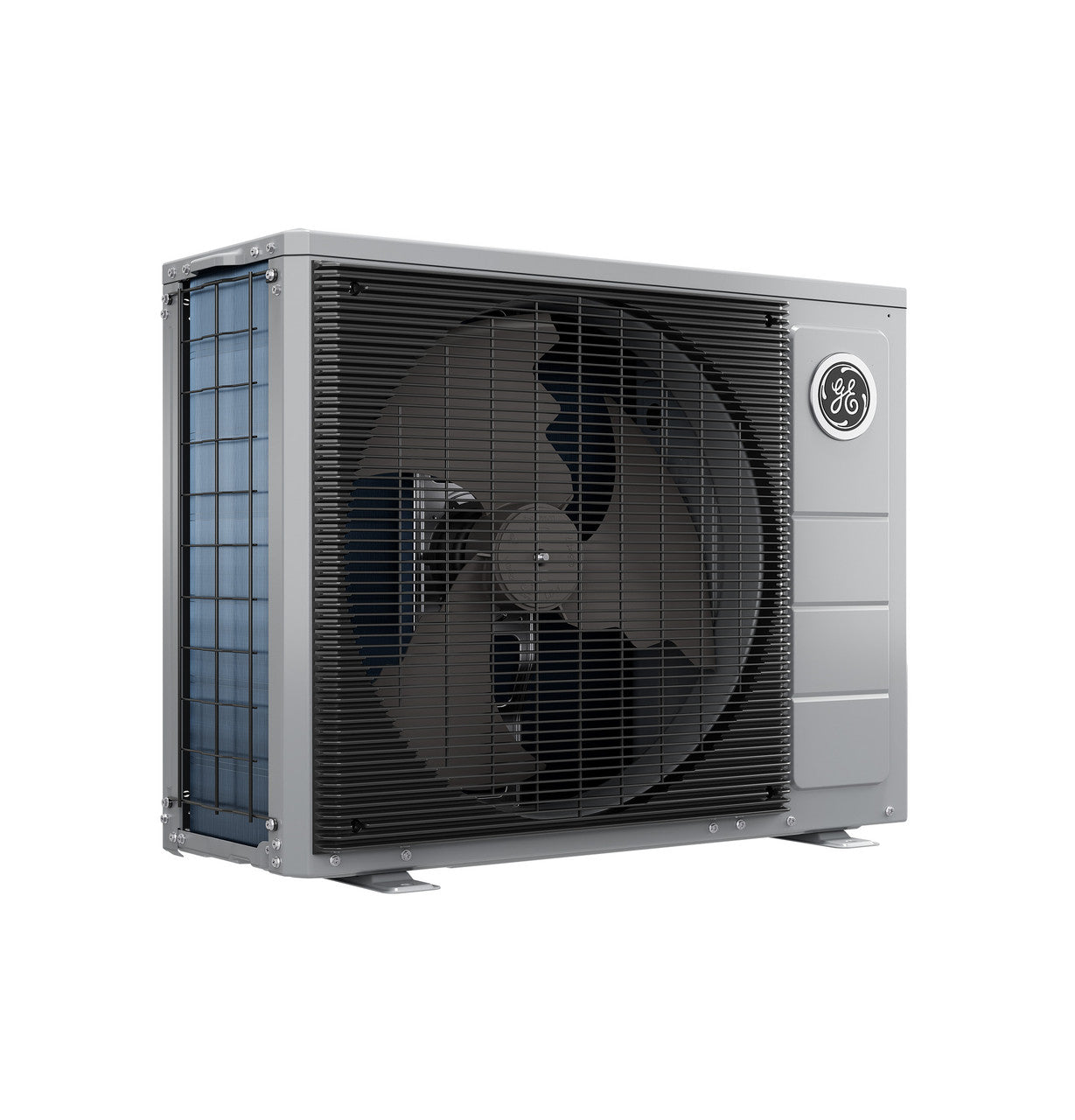

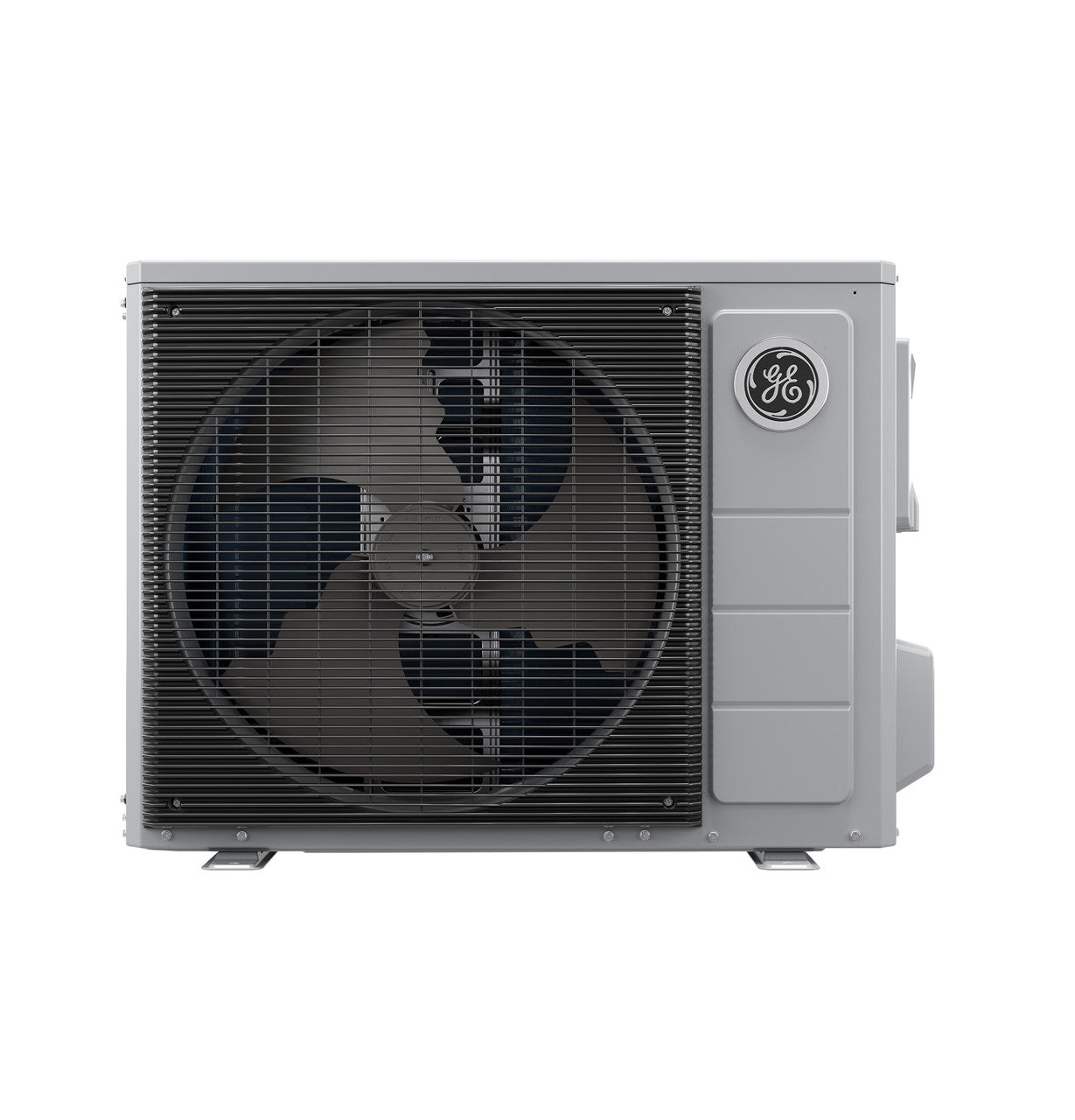

General Electric NS15H18HA5 Heat Pump 1.5-Ton

Product Description

The GENERAL ELECTRIC NS15H18HA5 heat pump delivers high efficiency while meeting today’s low-GWP standards. Optimized for tight spaces, the Connect Series heat pump clearance requires just 4” in the back and 14” in the front. Compatible with GE Appliances air handlers, evaporator coils, and gas furnaces as well as third-party models. Works with standard 24V thermostats.

• R454B REFRIGERANT
• SPACE SAVING SOLUTION
• INDUSTRY-LEADING INSTALL CLEARANCES

Product Highlights

This 1.5-ton heat pump features external service valves, factory coil guards, and a push & lock thermostat terminal block. Integrated handles and a single fan design make installation easier.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: NS15H18HA5

Technical Specifications

• Color Appearance: Gray
• Compressor Type: Inverter
• EER: 11 (when paired with NAM18V1TA5S)
• HSPF Rating: 8.5/6.8 (when paired with NAM18V1TA5S)
• Product Type: Heat Pump
• Refrigerant Type: R454B
• SEER: 16.2 (when paired with NAM18V1TA5S)
• SEER2: 16.2
• Series: Connect
• Style: Heat Pump
• Tonnage: 1.5
• Unit Type: Outdoor
• Cooling Rated Capacity BTU/Hr: 18000
• Overall Depth: 22 in
• Overall Height: 43.5 in
• Overall Width: 18.5 in
• Nominal Capacity: 1.5 ton
• Heating Capacity: 18 Kbtu/hr
• Voltage Rating: 208-240 VAC
• Phase: 1 ph
• Brand: GE Appliances
• Manufacturer: General Electric
• Manufacturer Part Number: NS15H18HA5
