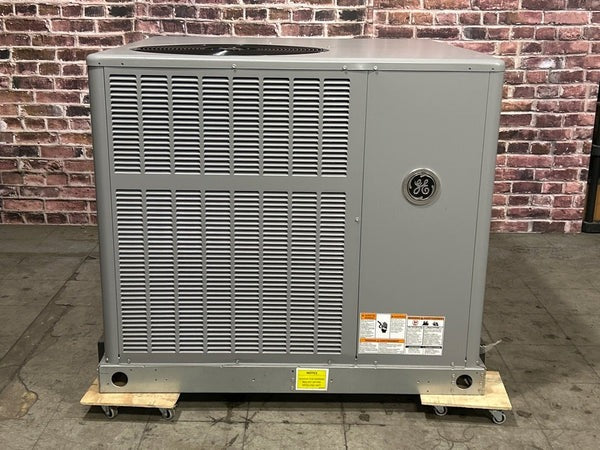

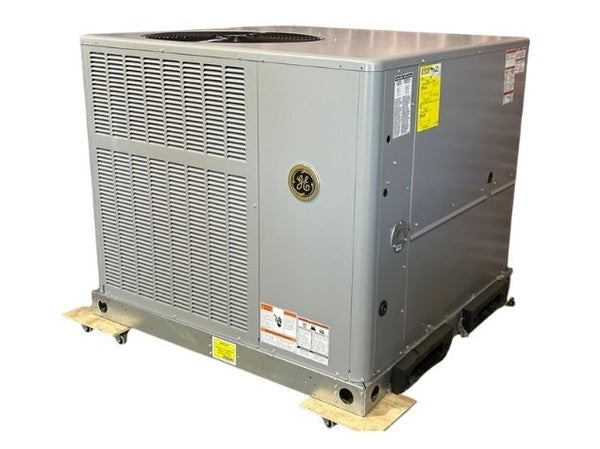

General Electric NP16G36V090 Packaged Gas Electric Unit 3 Ton

Product Description

The GENERAL ELECTRIC NP16G36V090 is a 3-ton two-stage natural gas and electric packaged unit designed for rooftop or ground-level installation in residential and light commercial applications. It delivers 35,400 BTU of cooling capacity at 15 SEER and 12 EER, with a gas heating input of 90,000 BTU and an output of 73,000 BTU. The two-stage operation allows the system to run at a lower capacity during mild conditions, reducing cycling and improving indoor comfort. It uses R-410A refrigerant with a factory charge of 5 pounds 8 ounces. Licensed HVAC technicians install and commission this equipment.

This packaged unit is configured for convertible airflow, making it adaptable to horizontal or downflow duct configurations depending on the installation layout. It operates on 208-230 volt, 60 Hz, single-phase power and moves 1,400 CFM of conditioned air. The unit is well-suited for replacing aging packaged gas-electric systems in small commercial buildings, retail spaces, and residential applications where a self-contained solution is required. All gas, electrical, and refrigerant connections are made at the unit curb or base.

Key Features

• Two-stage gas and electric operation for improved efficiency and comfort during partial-load conditions
• 15 SEER seasonal efficiency rating with 12 EER at rated conditions
• 90,000 BTU gas heat input with 73,000 BTU output for strong heating performance
• Factory-charged with R-410A refrigerant at 5 pounds 8 ounces
• Convertible airflow design supports multiple duct configurations
• 1,400 CFM rated airflow suitable for 3-ton cooling loads

Compatibility

Designed as an OEM-specification packaged gas-electric unit suitable for direct replacement or new installation in compatible rooftop or ground-mounted packaged unit applications using standard curb dimensions for this cabinet size.

Installation Notes

Installation must be performed by a licensed HVAC contractor in accordance with local mechanical codes, the National Fuel Gas Code (NFPA 54), and NEC requirements for the electrical connection. Disconnect all electrical power and shut off the gas supply before beginning any service or installation work. Verify that the existing duct curb or ground pad dimensions match the unit footprint before setting the equipment. Do not operate the unit without verifying refrigerant charge, airflow, and gas pressure against the nameplate and installation manual.

Technical Specifications

• Cooling Capacity: 35,400 BTU/h
• Gas Heat Input: 90,000 BTU/h
• Gas Heat Output: 73,000 BTU/h
• SEER: 15
• EER: 12
• Voltage: 208-230 volts
• Frequency: 60 Hz
• Phase: 1
• Refrigerant: R-410A
• Factory Refrigerant Charge: 5 pounds 8 ounces
• Airflow: 1,400 CFM
• Nominal Capacity: 3 Ton
• Compressor Stages: 2
• Unit Height: 40.89 inches
• Unit Width: 47.66 inches
• Unit Depth: 47.66 inches
• Weight: 420 pounds

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: NP16G36V090
