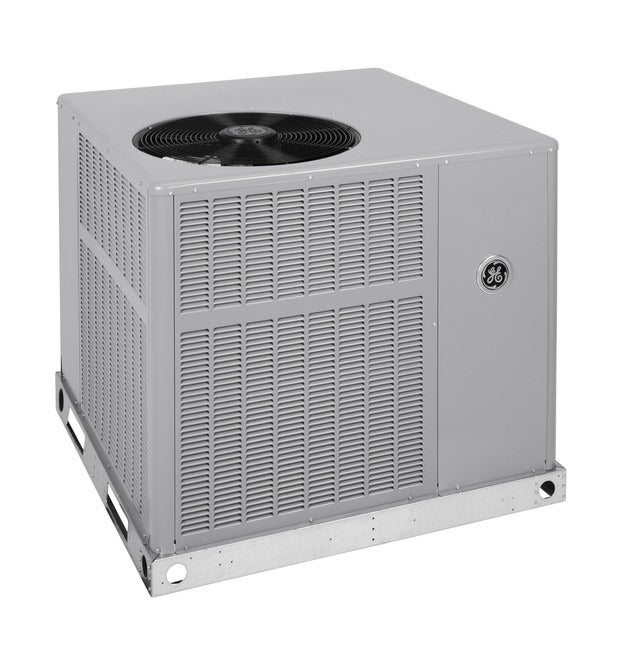

General Electric NP14X24S054 Gas Packaged Unit 2 Ton 14 Seer

Product Description

The General Electric NP14X24S054 is a self-contained gas packaged unit rated at 2 tons of cooling capacity and 54,000 BTU/h of heating output with a 14 SEER efficiency rating. It combines a gas furnace and a refrigerant-based cooling system in a single cabinet, simplifying installation on rooftops or ground-level pads. The unit meets Ultra-Low NOx emission standards, making it suitable for installations in air quality management districts that enforce low-emission combustion requirements. Licensed HVAC technicians typically handle installation, startup, and commissioning of packaged rooftop equipment like this.

This packaged unit is designed for light commercial and residential applications where a combined heating and cooling system in a single enclosure is required. It is well suited for slab-mounted or rooftop installations on small commercial buildings, retail spaces, and residential structures. The all-in-one configuration eliminates the need for a separate indoor air handler or furnace, reducing both equipment and installation footprint.

Key Features

• 2-ton cooling capacity with 54,000 BTU/h gas heating in a single cabinet
• 14 SEER efficiency rating meets current minimum efficiency standards
• Ultra-Low NOx combustion design for use in emission-restricted jurisdictions
• Self-contained packaged design simplifies rooftop and ground-level installs
• Combines gas heat and electric cooling without a separate indoor unit

Compatibility

Designed as an OEM-style packaged rooftop or ground-mounted gas electric unit for light commercial and residential ducted systems requiring a self-contained heating and cooling solution.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect all electrical power and shut off the gas supply before servicing or connecting the unit. Ductwork connections, refrigerant line integrity, and gas supply sizing should be verified prior to startup. Commissioning should include a check of airflow, gas pressure, and controls per applicable codes including IFGC and local jurisdiction requirements.

Technical Specifications

• Cooling Capacity: 2 tons (24,000 BTU/h)
• Heating Capacity: 54,000 BTU/h
• SEER Rating: 14 SEER
• Emission Standard: Ultra-Low NOx
• Unit Type: Gas Electric Packaged Unit

Standard Information

• Brand: General Electric
• Manufacturer Part Number: NP14X24S054
